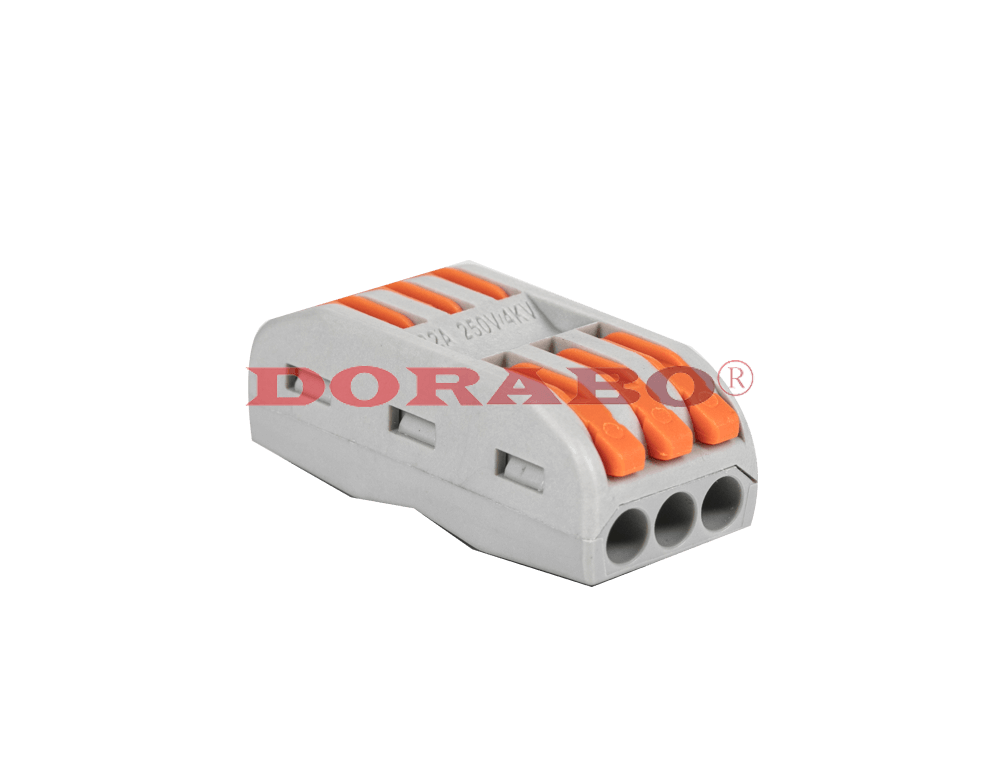

DB413 Wiring terminal

0
Views: 4,704
Contact usDownload PDF View 3D Download CAD
  •

    Electrical parameters



    Rated electrical parameters EN 60664
    Rated voltage(II / 2) 400 V
    Impulse withstand voltage(II / 2) 4 kV
    Rated current 32 A
    Legend(Rated electrical parameters) (II / 2) ≙ Overvoltage category II / Pollution degree 2



    Connection capacity



    Connection technology CAGE CLAMP®
    Execution type Operating elements
    Connectable wire material Copper
    Single wire 0,08 … 2,5 mm² / 28 … 12 AWG
    Stranded conductor 0,08 … 2,5 mm² / 28 … 12 AWG
    Fine stranded wire 0,08 … 4 mm² / 28 … 12 AWG
    Stripping length 9 … 10 mm / 0.35 … 0.39 inch
    Number of connections 3
    Number of potentials 1
    Wiring type Side wiring



    Material data



    Color Gray
    Flammability rating according to UL94 V0
    Combustion load 0.088 MJ
    Housing color Orange
    Weight 4.3 g



    Ambient conditions



    Ambient temperature (operation) 40 … 40 °C
    Continuous working temperature 85 … 85 °C
