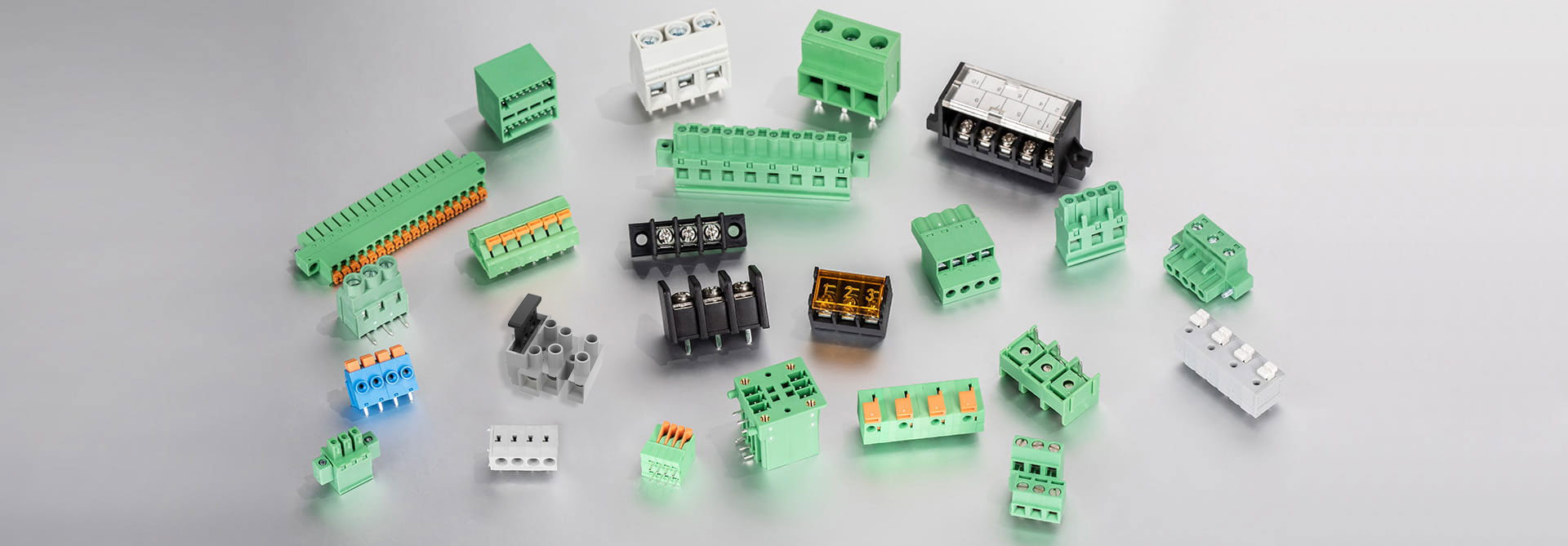

Shrapnel terminal block

Shrapnel terminal block

It provides a suitable wiring structure in an economical way. It is mainly based on 2P and 3P, which can be spliced and combined into any required number of digits according to needs. The pitch is available from 3.5mm to 10.16mm, and there are three ways to enter the wire: 90°, 135°, and 180°.

  Product model >>
Lifting terminal block

Lifting terminal block

It uses the principle of lifting and lowering the wire clamping body, and takes into account the two characteristics of compact structure and firm connection in the design. The product can connect all types of wires with a cross-section from 0.08mm2 to 16mm2. The pitch is available from 2.54mm to 15.0mm, and there are three ways of entering the wire: 90°, 135°, and 180°.

  Product model >>
Plug-In terminal block

Plug-In terminal block

There are many wiring schemes, which is especially convenient for the controllability of the equipment. It can be connected to single or multi-strand wires from 0.2mm² to 4.0mm², and the pitch is available from 2.5 mm to 7.62 mm. There are three ways to enter the wire: 90°, 135°, and 180°.

  Product model >>
Barrier terminal block

Barrier terminal block

The wiring is intuitive and clear. It can connect all types of wires with a cross-section from 0.5mm² to 300mm². The pitch is is available from6.35 to 60mm. We can provide products with lid, no lid and other styles.

  Product model >>
Spring-type terminal block

Spring-type terminal block

The connection method is divided into cage spring connection and butterfly spring connection. It can be used to replace screw to connect PCB terminal, which increases flexibility.

  Product model >>
Feed-through terminal block

Feed-through terminal block

It can connect two conductors conveniently and reliably, and connect all types of wires with a cross-section from 0.5mm² to 16mm². The product is divided into two types: with fuse and without fuse.

  Product model >>
Rail terminal block

Rail terminal block

The insulation is made of nylon 66, which has good toughness and flame retardancy. The copper alloy wire frame structure provides long-term protection for the product in harsh environments such as humidity and salt spray. The wire pressure structure has good self-locking and anti-loose properties.

  Product model >>
Wiring terminal block

Wiring terminal block

According to customer needs, we provide real-time services with competitive advantages, perfect quality and excellent technology. And we provide customers with satisfactory products and services with an international strategy.

  Product model >>



Stable wiring method

Smarter choice and closer service,Dorabo Electronics provides you with better industrial connection solutions.

Square box lifting type

The square box is made of high-elastic carbon steel, after quenching and hardening, the surface is galvanized. With high-strength clamping screws, the wires can be securely locked into the square box. It has the characteristics of high contact strength, large contact area, and overall shock resistance. The contact surface can be kept as new forever due to the air-tight effect, and the single-core or stranded wire can be directly connected.

Pull back shrapnel

This type of connection uses stainless steel, and the hardness is strengthened by heat treatment. When using, we can use a simple tool (screwdriver) to open the shrapnel or press the shrapnel with the handle. It has the advantages of fast connecting wire speed, time-saving and convenient, shock resistance and maintenance-free.

In-line shrapnel

This connection method uses high-elastic stainless steel, which is heat-treated to strengthen the hardness and improve fatigue resistance. It adopts the lock wire structure S-Cage, and the shrapnel and the square box are integrally formed. The structure is strong and has the ability to lock the wire with high strength and high stability. Hard conductors can be wired directly without tools, which can be quickly connected, time-saving, convenient and shock-resistant.

Front-end wiring

The top pressure connection device is cut by punching the truncation surface, and the surface is galvanized and then coated with a trivalent chromate passivation layer. With high-strength clamping screws, the wire is securely locked into the square box, and the pressure block (sheet) is driven to press the wire in a large area, providing high air tightness and low voltage loss conduction effect. This design screw and the wire are in the same direction, which can conveniently use in confined spaces or side installations and other restricted environments.

Soldering iron

This wiring method is not limited by the PCB Layout circuit, and can be wired according to actual circuit requirements. It has flexible wiring capabilities. The special hook-shaped design of the solder feet makes the wire easy to wind and fix and not easy to fall off.

Simple screw type

A stainless steel sheet is attached to the top of the thread-clamping box with needles. When the screw is pressed down and the wire is clamped, it can protect the stability and safety of the wire. This clamping structure has both small size and convenience. And it has high economic benefits.




Clear wiring markings

Various types of marking to help you simply and quickly complete the task.

Printing mark

Sticker marking

LED marking

Color marking

Application of fool-proofing plate




Stable quality raw materials

  • Insulating plastic material

    Using industrial grade nylon (PA) as the main insulation material has the following advantages.

    Not easy to break, easy to shape

    Excellent electrical insulation properties

    Excellent fire rating: UL94V-0 or UL94V-2

    Operating temperature: -40~110℃

  • High temperature resistant insulation material

    High temperature resistance (Max 255℃)is suitable for reflow soldering process

    Low water absorption MSL2 grade: No need to preheat during production and use

    Excellent fire rating: up to UL94V-0

    Operating temperature: -40~120°C
