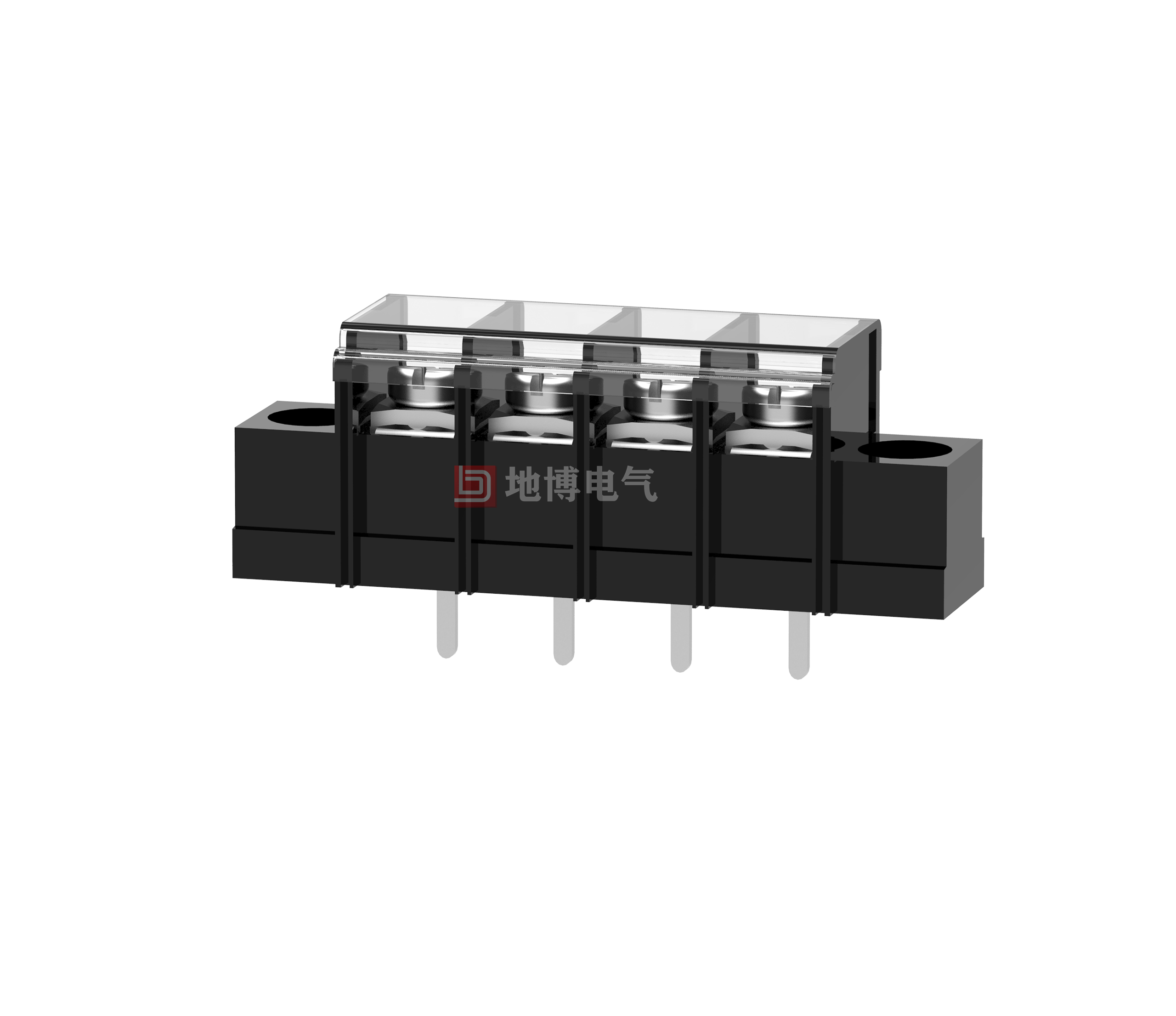

DBT10-10.0 American standard gold-plated terminals

0
Views: 67
Contact usDownload PDF
  •

     Material data

     Screws
    M4.0 Steel Ni plated
     Pin header
    Copper alloy,Sn plated
     Housing
    PA66,UL94V-0



     Electrical parameters



     Standard
    UL IEC
    Rated voltage
    300V 400V
     Rated current
    20A 24A
     Wire range
    22-12AWG 2.5mm²
     Contact resistance
    20mΩ
     Insulation resistance
    500MΩ/DC500V
    Withstand voltage
    AC2000V/1Min
     Temp.range -40°C...105 °C [ -40...221 °F ]
     Torque
    12.24Kgf.cm/1.2Nm/10.6Lb.in



    Dimensional drawing
