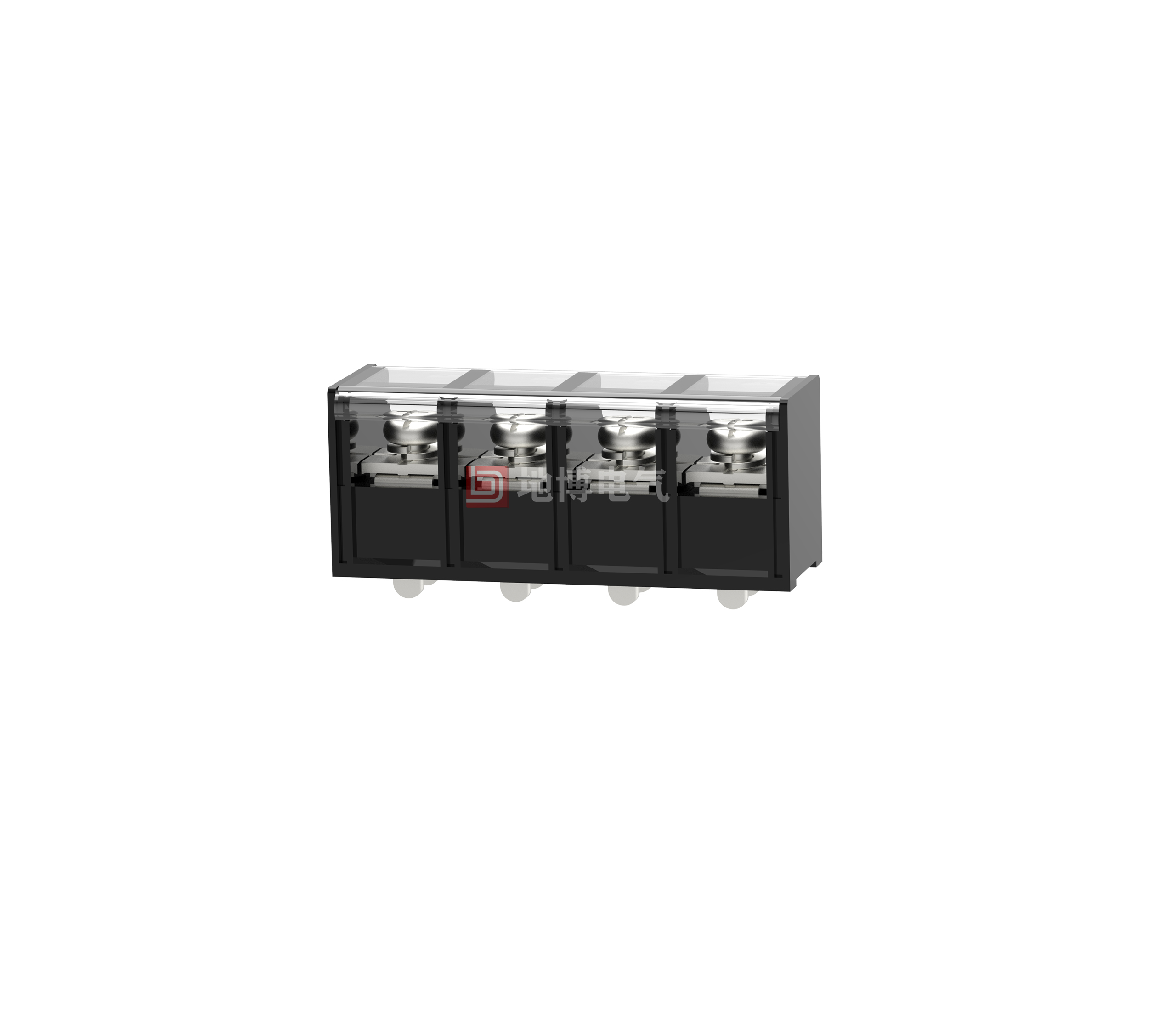

PCB terminal DBT40CC-16.0

Single Barrier Terminal Block, Nominal Operating Current: 100A, Rated Voltage (III/2): 600 V, Rated Cross Section: 12-3AWG, Number of Positions: 2-12, Number of Rows: 1, Number of Positions per Row: 2-12, Series: DBT40CC, Pin Pitch: 16.0 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Colour: black, Pin arrangement: straight, Pin [P]: 3.8 mm, Number of pins per potential: 1, Packing type: carton

Advantage

☑ Screw connection method for worldwide use
☑ Barrier type wiring structure for stable and reliable connections
☑ Solder plate mounting for electrical connection of the device to the PCB
0
Views: 40,929
Contact usDownload PDF View 3D Download CAD

  •

    Material Information



    Screws
    M6.0 Steel Ni plated
    Solder foot
    Copper alloy，Sn plated
    Plastic parts
    PA66，UL94V-0



    Electrical Performance



    Reference Standards
    UL IEC
    Rated voltage
    600V 600V
    Rated current
    100A 100A
    Wire diameter used
    14-3AWG 25mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2000V/1Min
    Temperature range
    -40℃~+105℃
    Torque  26Lb.in(30kgf.cm)

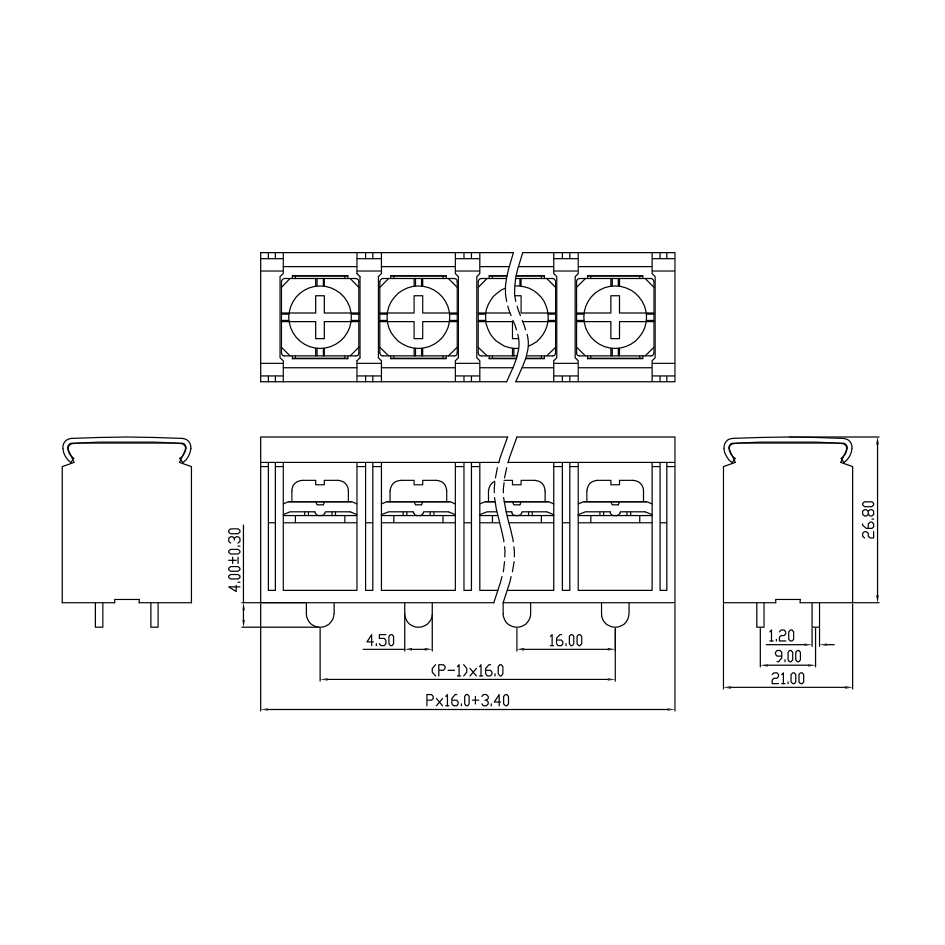

    Size Chart

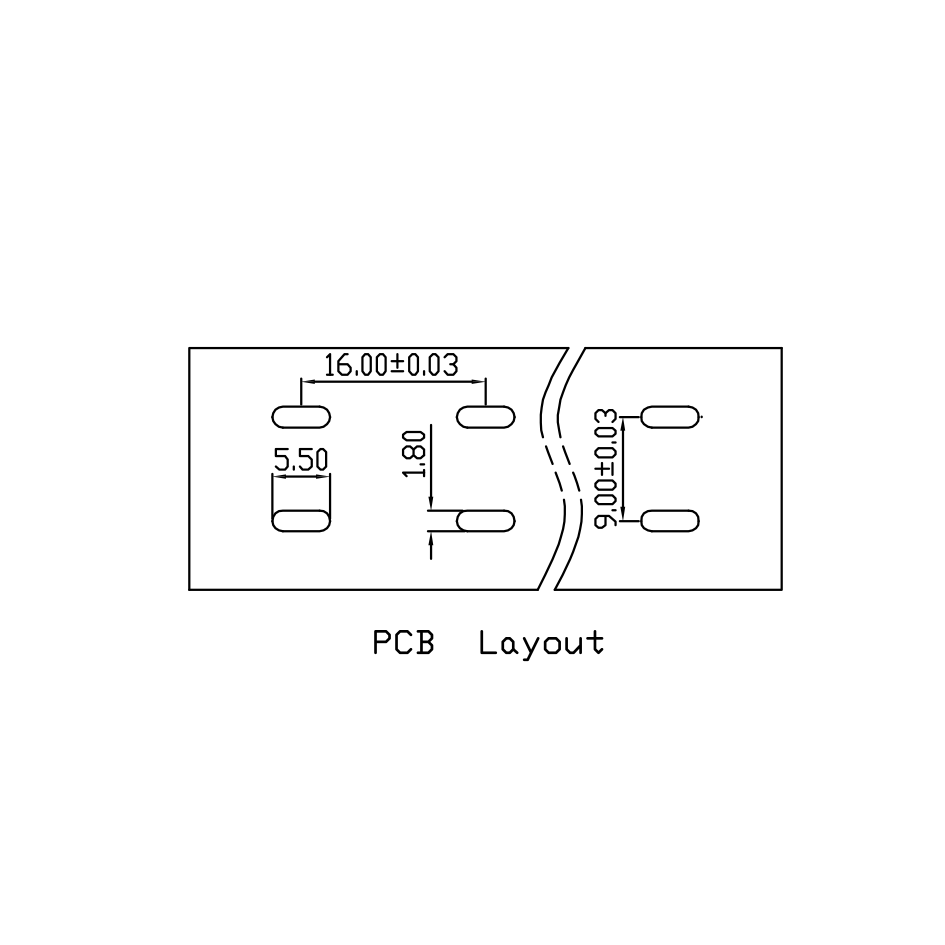

    PCB opening diagram
