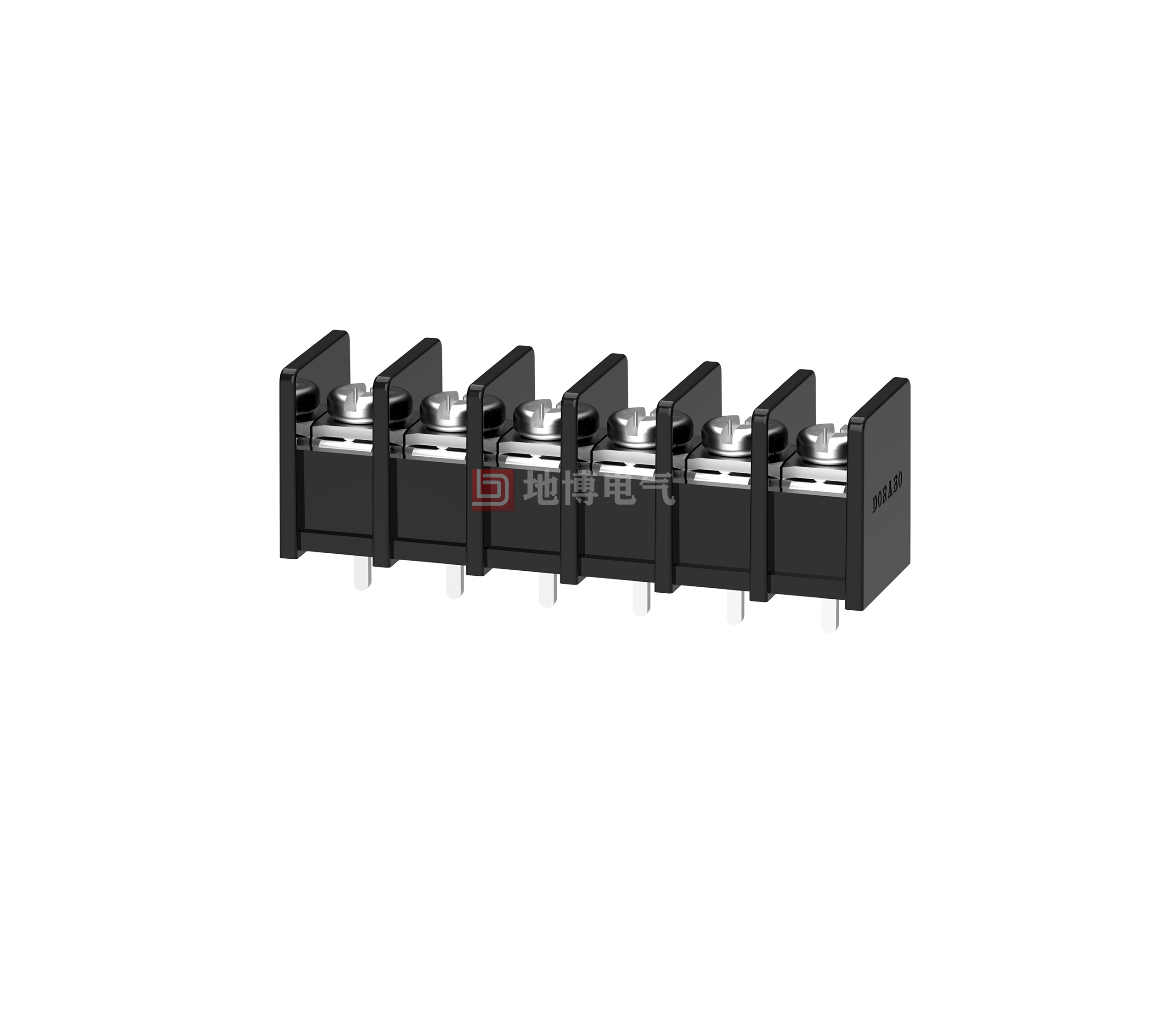

PCB terminal DBT30C-8.25

Single Barrier Terminal Block, Nominal Operating Current: 20 A, Rated Voltage (III/2): 300 V, Rated Cross Section: 22-12AWG, Number of Positions: 2-24, Number of Rows: 1, Number of Positions per Row: 2-24, Series: DBT30C, Pin Pitch: 8.25 mm, Wiring Method: Screw Connection with Crimp, Screw Head Size: Cross Slotted, Mounting: Wave Soldering Wire/PCB connection direction: 0°, Colour: black, Pin arrangement: straight, Pin [P]: 3.6 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Screw connection for worldwide use
☑ Barred wiring construction for stable and reliable connections
☑ Solder plate mounting for electrical connection of the device to the PCB

0
Views: 2,800
Contact usDownload PDF View 3D Download CAD
  •

    Material Information



    Screws
    M3.0 Steel Ni plated
    Solder foot
    Copper alloy,Sn plated
    Plastic parts
    PA66,UL94V-0



    Electrical Performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 250V
    Rated current
    20A 24A
    Use wire diameter
    20-12AWG 2.5mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2000V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    5.1Kgf.cm/0.5Nm/4.43Lb.in





    Size Chart





    PCB opening diagram
