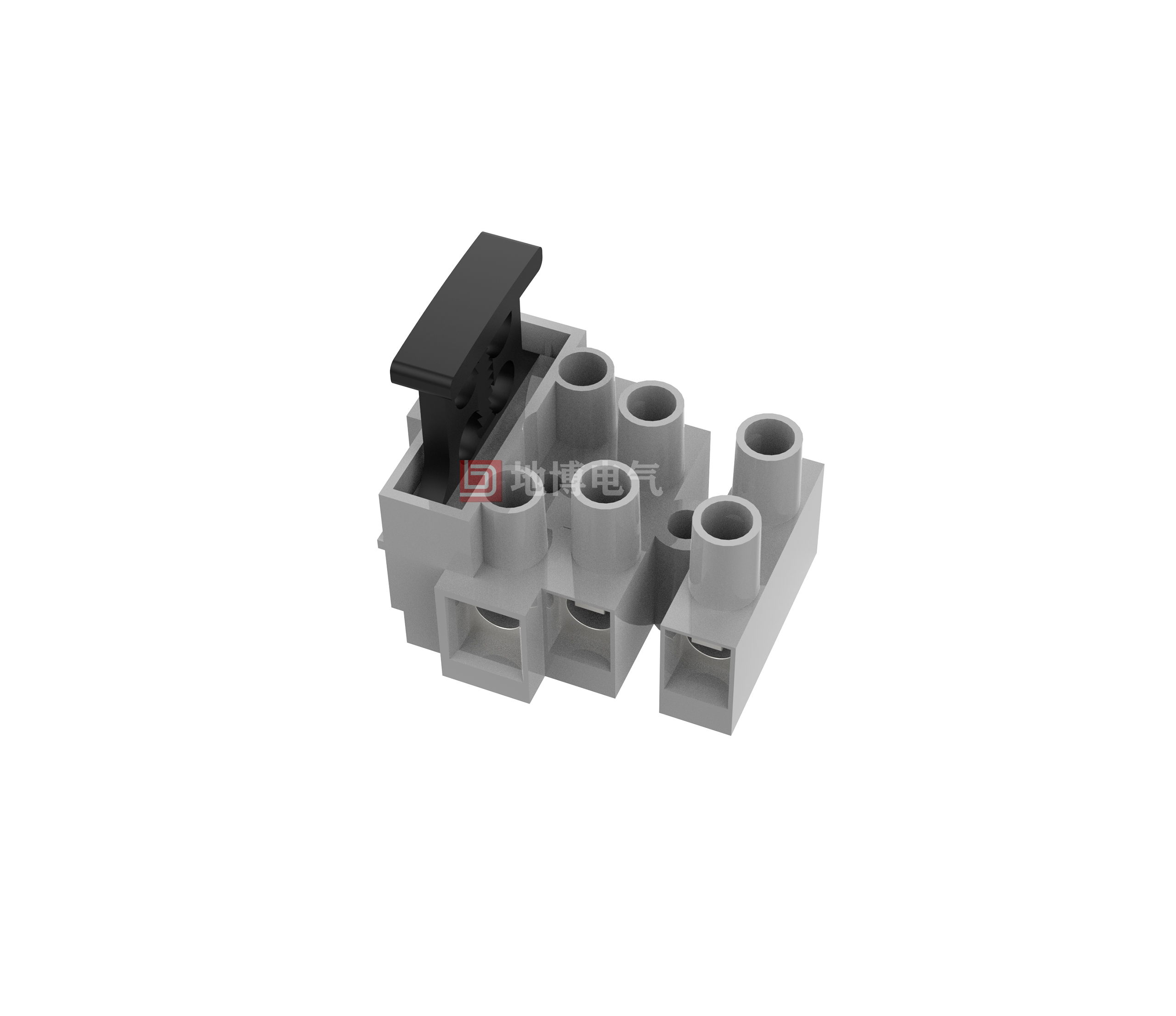

Terminal block DB801-10.0

Through terminals, nominal cross section: 2.5 mm2, Colour: grey, Rated current: 6.3 A, Rated voltage (III/2): 250 V, Pin spacing: 10.0 mm, Contact surface: zinc, Contact type: Hole connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connection capacity: 2-12, Series: DB801, Wiring method: Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: Carton Screw connection with tab, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: carton

Advantages

☑ Horizontal wire-to-wire connection possible
☑ Fused for overcurrent protection
☑ Panel mounting for a wide range of applications

0
Views: 5,968
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Grade
    B C D
    Rated voltage [V]
    300 300 300
    Rated current [A]
    15 15 10
    Wiring range [AWG]
    22-14
    Voltage resistance
    1.6KV



    Technical specifications-IEC



    Overvoltage category
    III III II
    Pollution level
    3 2 2
    Rated voltage [V]
    - 250 -
    Rated current [A]
    - 6.3 -
    Rated impulse voltage [KV]
    - 2 -
    Wire cross-sectional area [hard/flexible] [mm²]
    0.2-2.5



    Material



    Insulation materials
    PA66
    Flame retardant grade
    UL94V-0
    Conductor materials
    Copper alloy
    Conductor surface plating
    Ni plated



    Other Data



    Spacing / Number of poles [mm]/[P]
    2-5
    Strip length [mm]
    7-8
    Screws/torque [N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Solder temperature
    250℃/5S
    Pin size [mm]
    /
    PCB board aperture [mm]
    /

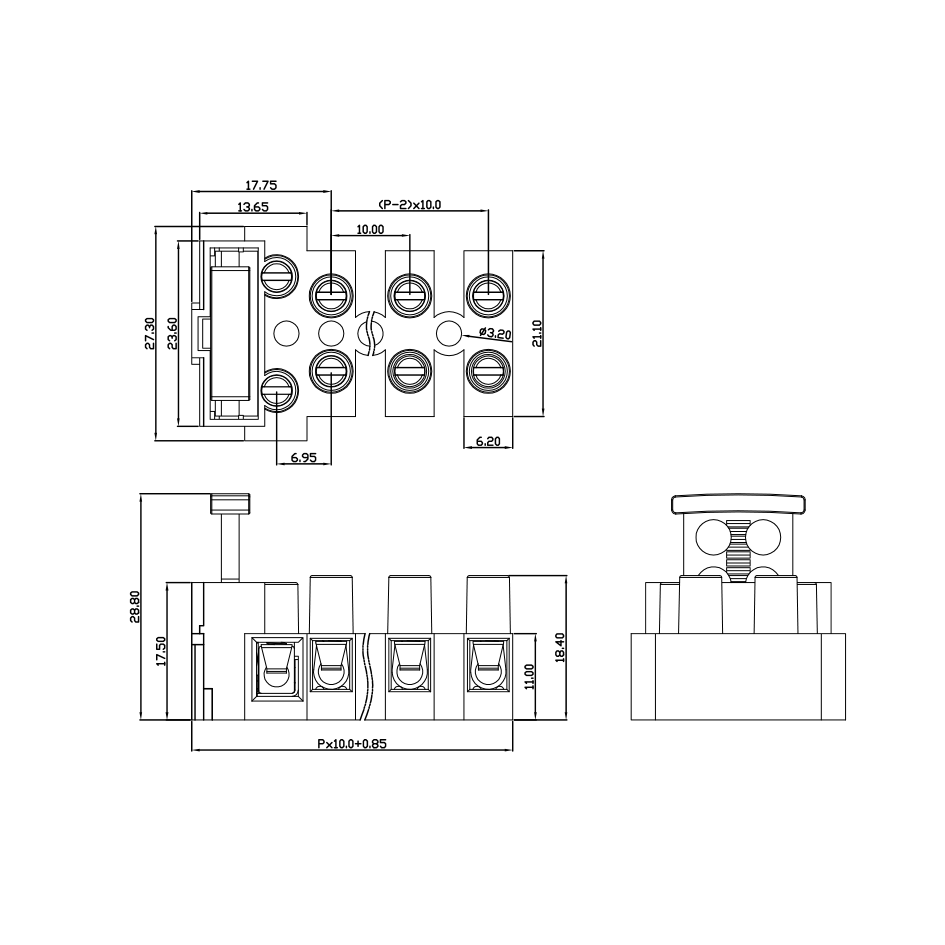

    Dimensional drawings
