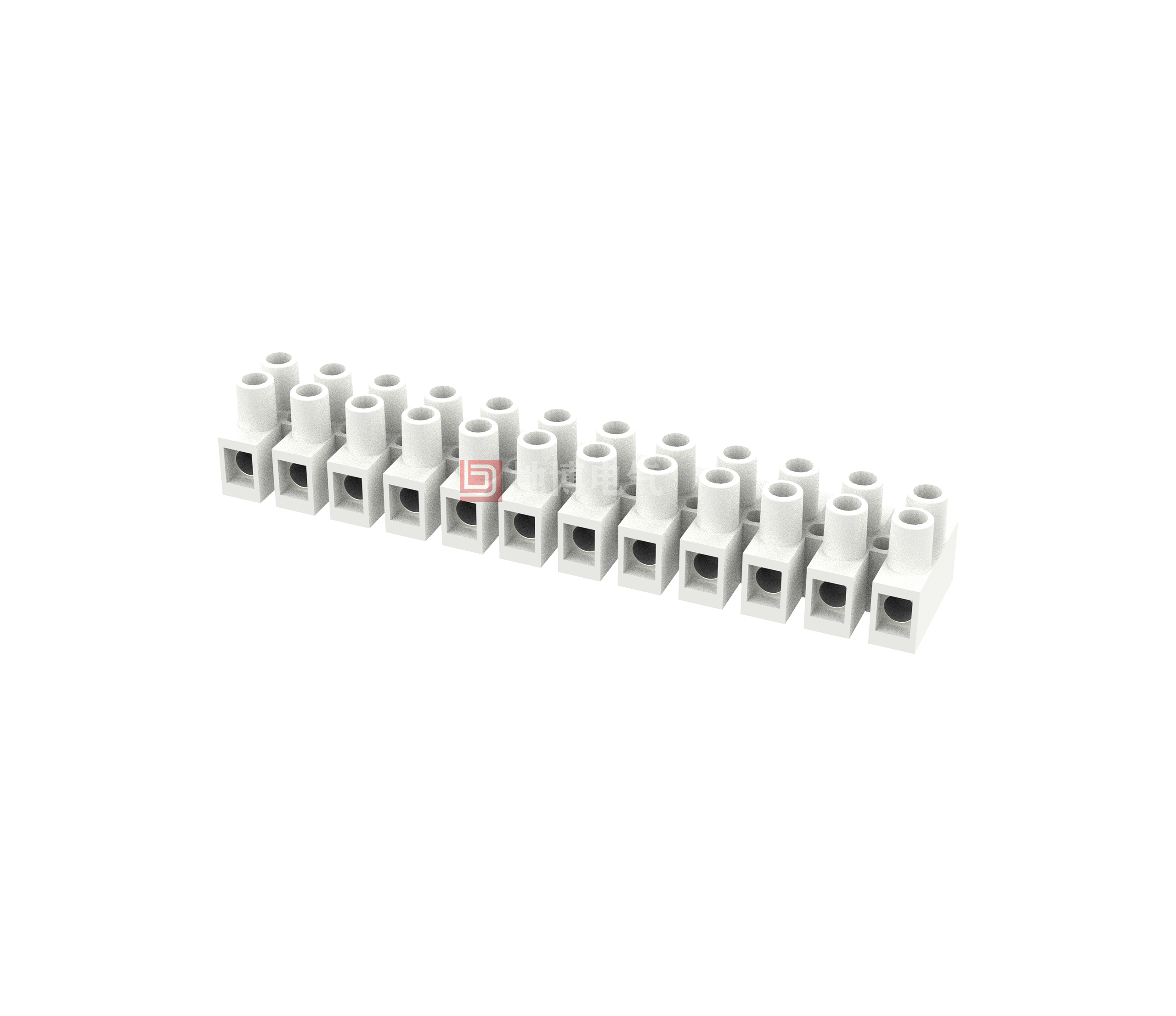

Terminal block DB8H-8.2

Through terminals, nominal cross-section: 1.5 mm2, Colour: natural, Rated current: 32 A, Rated voltage (III/2): 450 V, Pin pitch: 8.2 mm, Contact surface: zinc, Contact type: Hole connector, Number of potentials: 2-12, Number of rows: 1, Number of digits: 2-12, Connection capacity: 2-12, Series: DB8H, Wiring method: Screw connection with tabs Connection, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: carton

Advantages

☑ Horizontal wire-to-wire connection possible
☑ Panel mounting for a wide range of applications

0
Views: 5,104
Contact usDownload PDF View 3D Download CAD

  •

    Material information



    Screws
    PA66，UL94V-2
    Solder foot
    M2.6，Steel，Zn plated
    Plastic parts
    Copper alloy，Ni plated



    Electrical performance



    Reference Standards
    UL IEC
    Rated voltage
    600V 450V
    Rated current
    20A 32A
    Wire diameter used
    22-12AWG 4mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC1600V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    0.4Nm/3.6Lb.in/4.08Kgf.cm

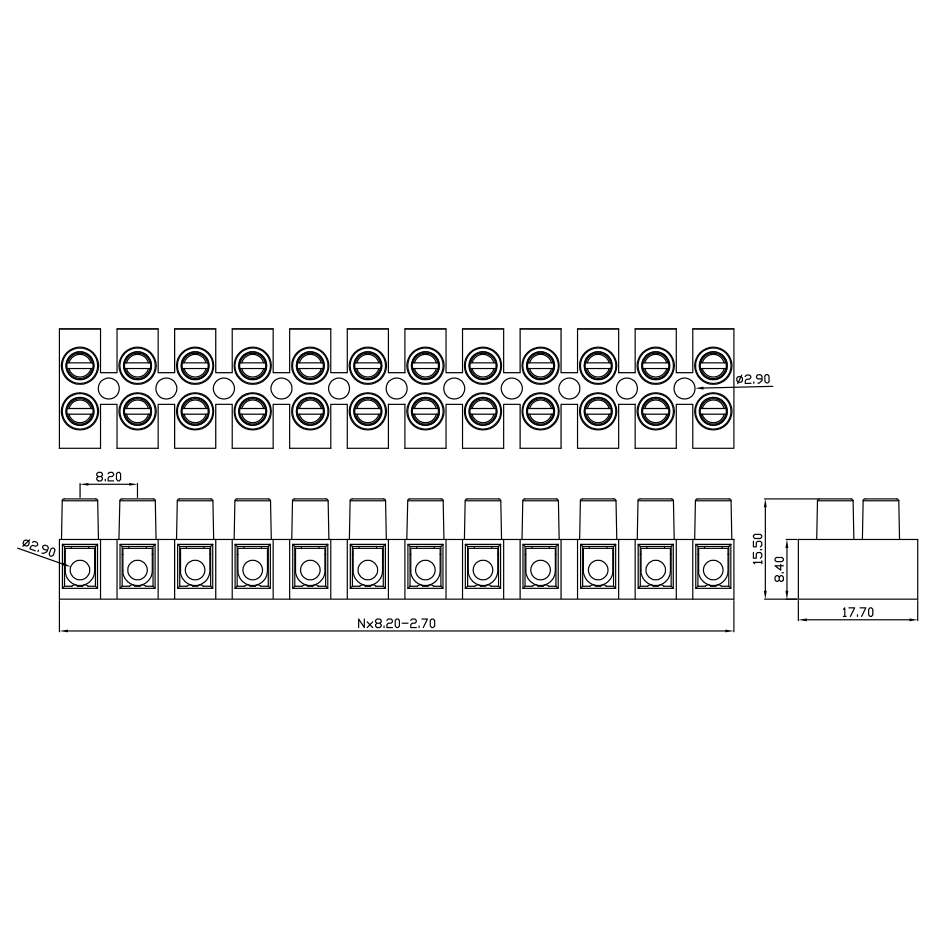

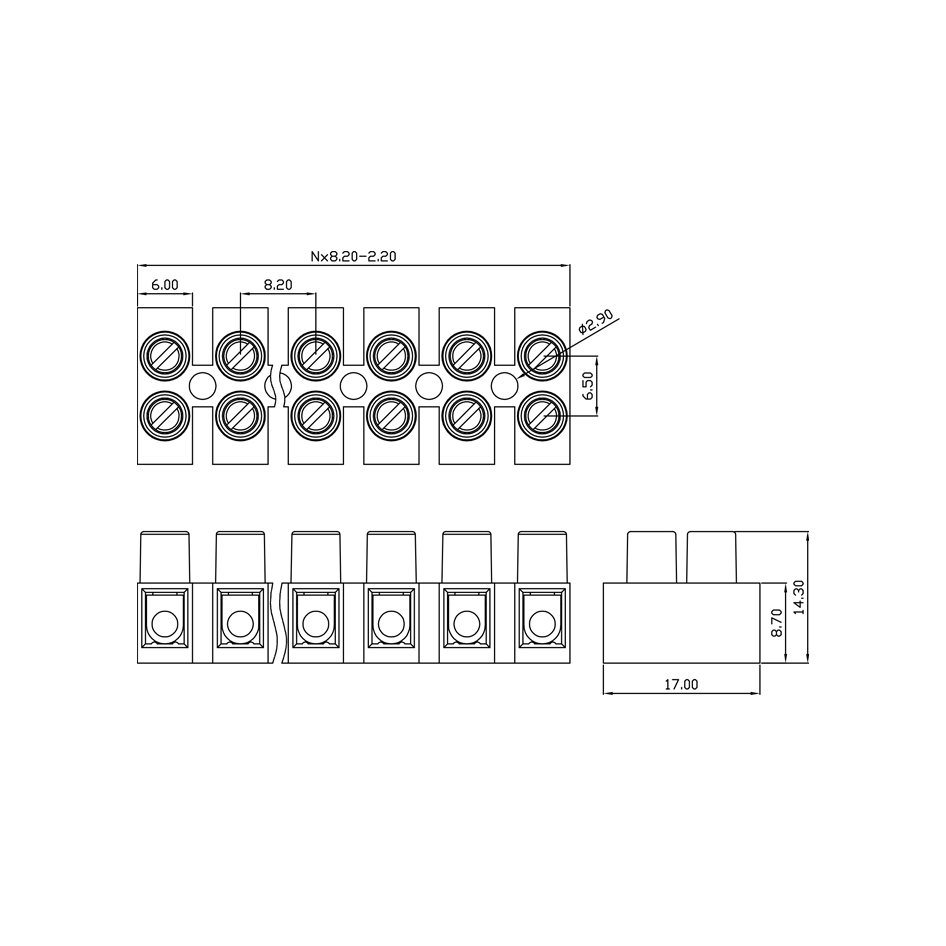

    Dimensional drawings
