PCB terminals DB3ERM-10.16

 : DB3ERM, Pin pitch: 10.16 mm, Mounting: Wave soldering, Pin alignment: Straight alignment, Solder pins [P]: 4 mm, Number of pins per potential: 3, Insertion system: COMBICON DB3RM, Pin connector style alignment: Standard, Interlocking: Screw fastening, Mounting: Screw flange, Packing type: Carton

Advantages

☑ Universal mounting for worldwide use
☑ Bolted flanges guarantee a high degree of mechanical stability
☑Ensures a high degree of flexibility in equipment design - only one socket is required for connectors with different connection technologies
0
Views: 600
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    55 55 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    76 76 76
    Impulse withstand voltage [KV]
    8 8 6
    Conductor cross section [mm²]
    /



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    10.16/2-18
    Stripping Length [mm]
    /
     Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
     Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.0*1.2
    PCB Hole Diameter [mm]
    Ø1.8

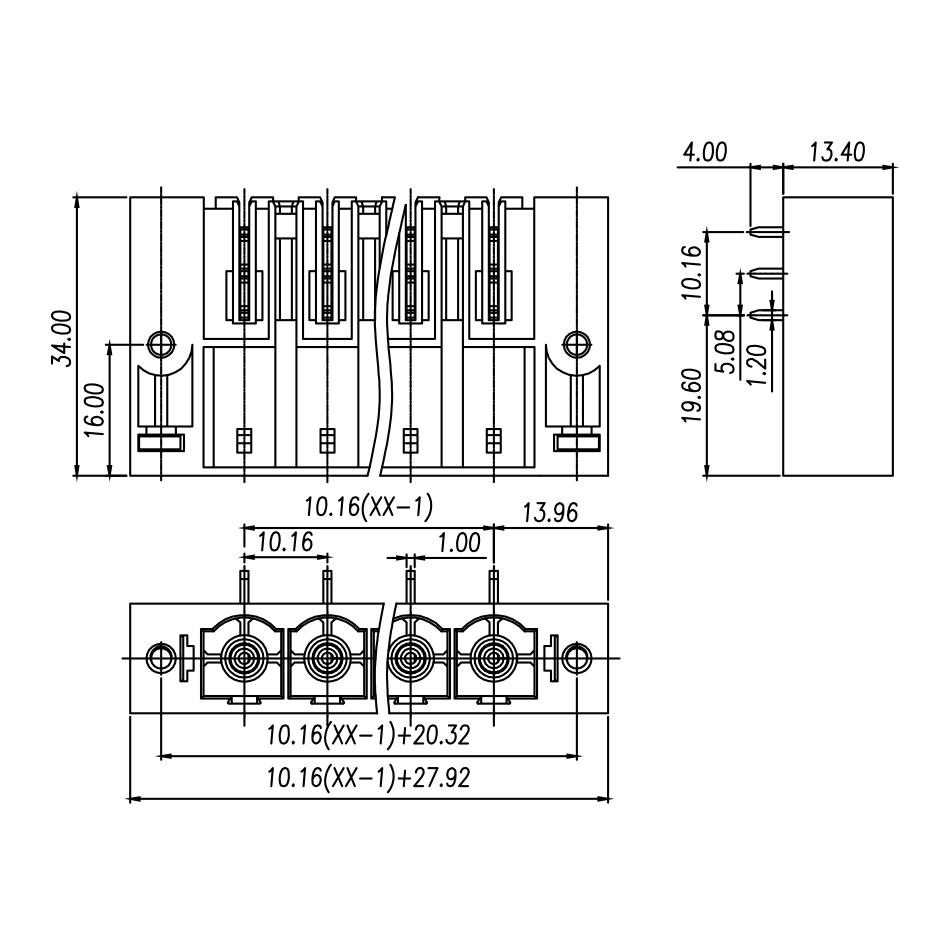

    Dimensional drawings

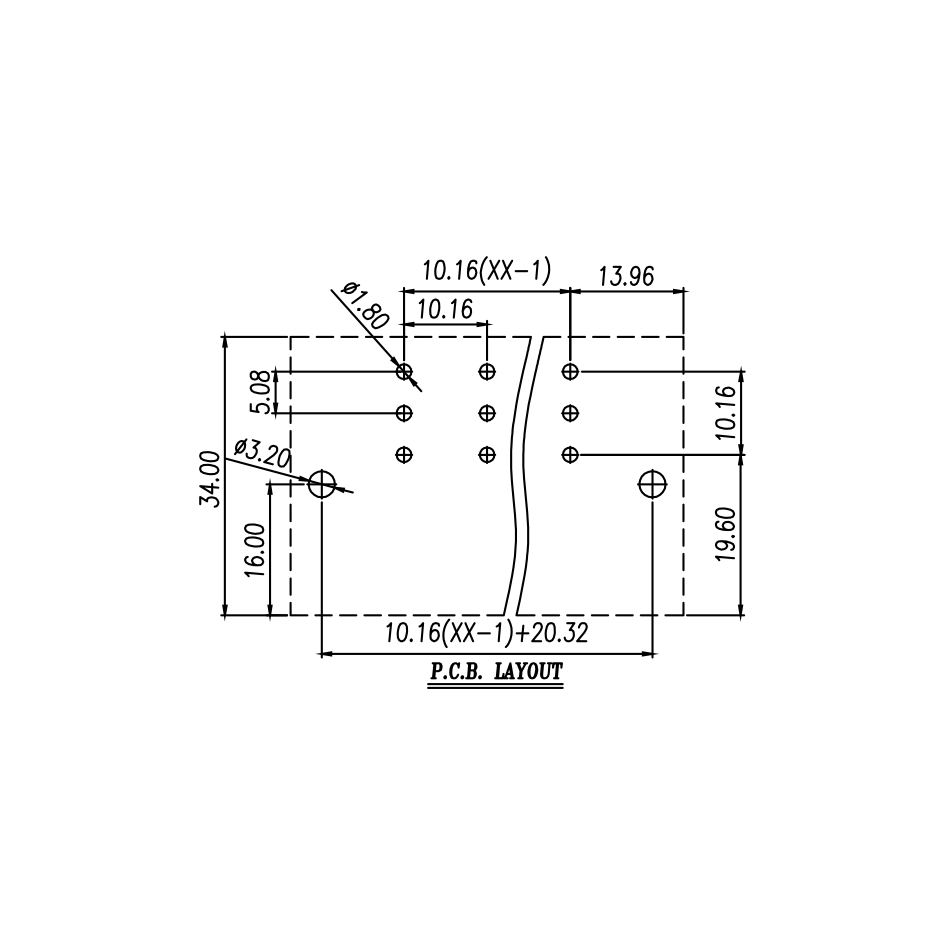

    PCB cut-out diagram
