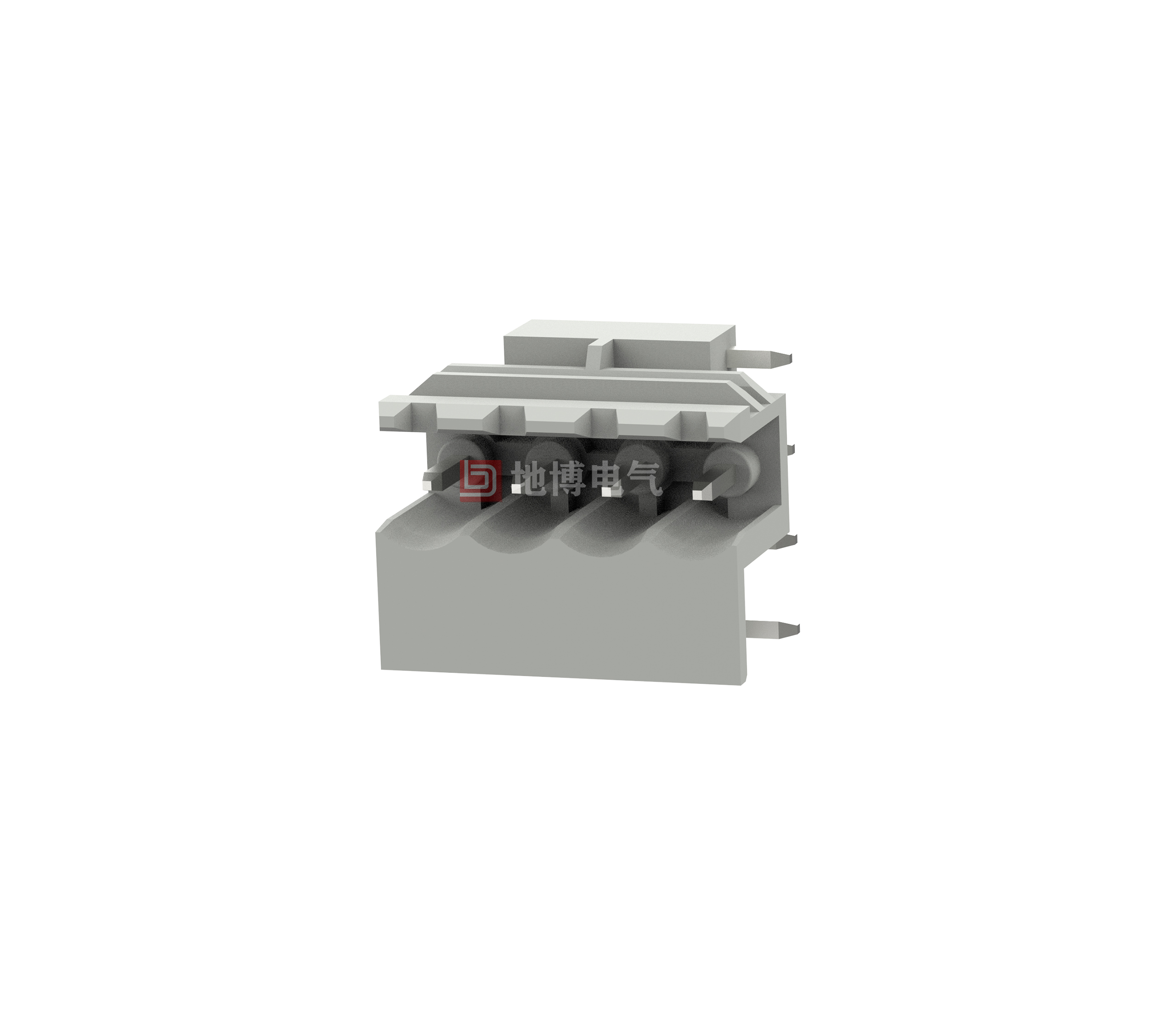

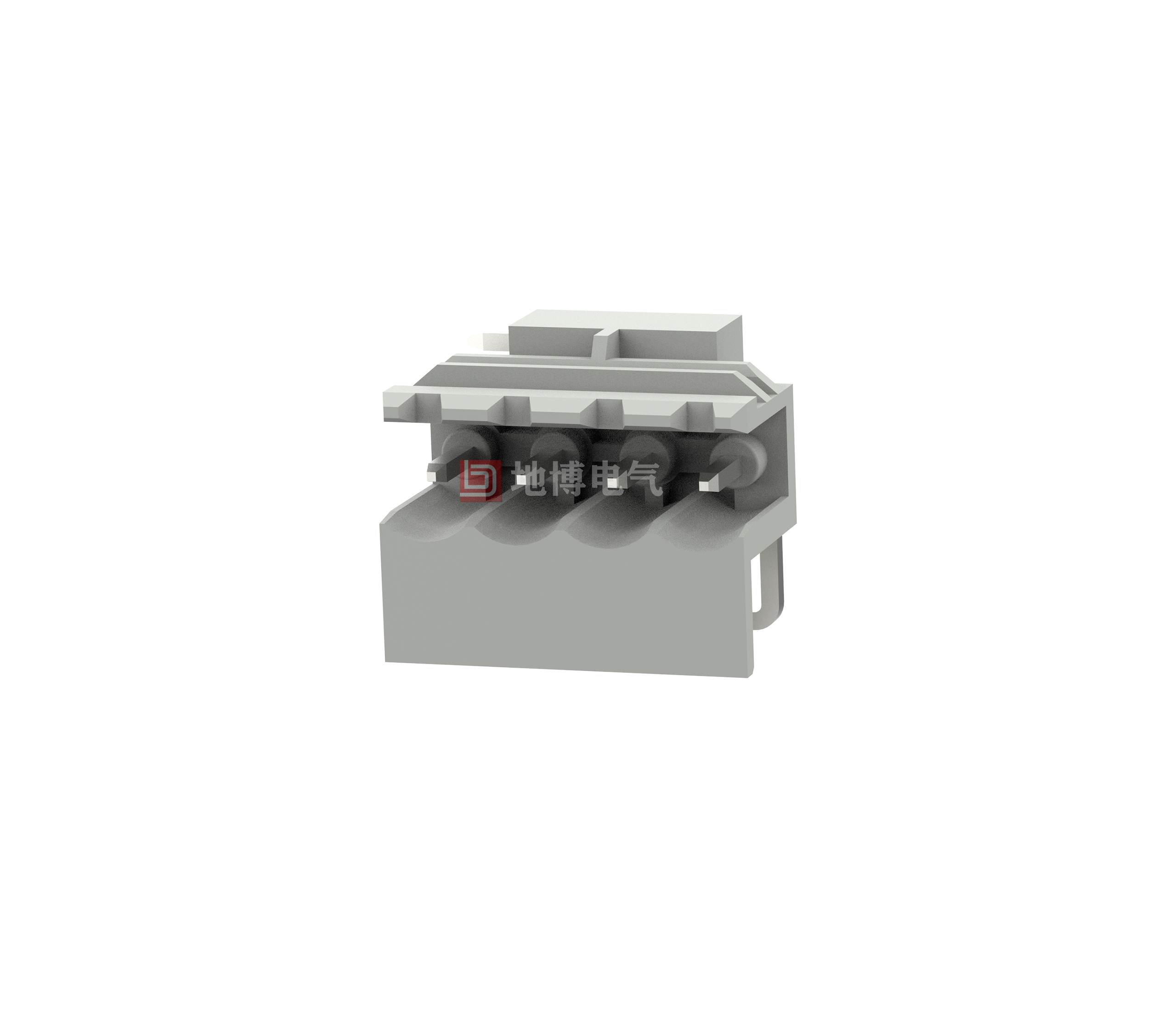

PCB socket DB2EZF-5.0

Printed circuit board housing, Nominal cross section: 2.5 mm2, Colour: green, Nominal operating current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection quantity: 2-24, Series: DB2EZF, Pin pitch: 5.0 mm, Mounting: Wave Soldering, Pin Arrangement: Straight, Pins [P]: 3.5 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2EZF, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Packing Type: Carton

Advantages

☑ Sockets for FME electronic module housings
☑ Insertion direction parallel to the PCB
0
Views: 626
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    20 20 20
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2-4
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    Ø1.7



    Dimensional drawings
