PCB socket DB2ERC-10.16

Printed Circuit Board Housing, Nominal Cross Section: 2.5 mm2, Color: Green, Rated Current: 16 A, Rated Voltage (III/2): 600 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Potentials: 2-12, Number of Rows: 1, Number of Positions: 2-12, Connection Volume: 2-12, Product Family: DB2ERC, Pin Pitch: 10.16 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Pin [P]: 3.9 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2ERC, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Package Type: Carton


☑Ensures high flexibility in equipment design - only one socket is needed to meet the needs of connectors using different connection technologies
☑Universal installation method, can be used worldwide
☑Vertical connection allows for multiple rows on the PCB
☑The products can be aligned with different pin pitches, supporting flexible and space-saving PCB assembly methods
☑Using plug-in module, PCB can be easily replaced

Views: 360
Contact usDownload PDF View 3D Download CAD

    Technical Data-UL/CUL


    Use Group
    B C D
    Rate Voltage [V]
    600 - 600
    Rated Current [A]
    15 - 5
    Wire Range [AWG]
    Dielectric Voltage-Withstand


    Technical Data-IEC


    Overvoltage Category
    Contamination Class
    3 2 2
    Rated Voltage [V]
    630 1000 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]


    Material Information


    Insulation Material
    Flame relardant rating
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated


    General Parameters


    Pitch/Poles [mm]/[P]
    Stripping Length [mm]
    Operating temperature [℃]
    Soldering temperature
    Pin dimensions [mm]
    PCB Hole Diameter [mm]

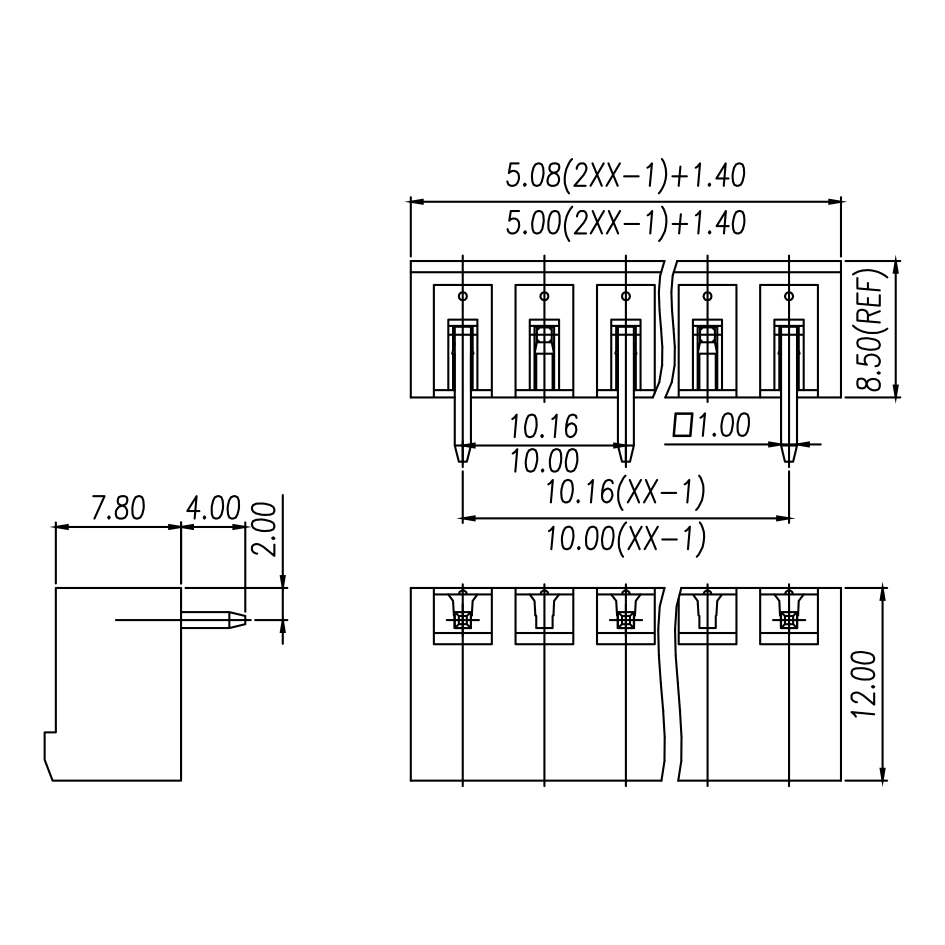

    Size Chart

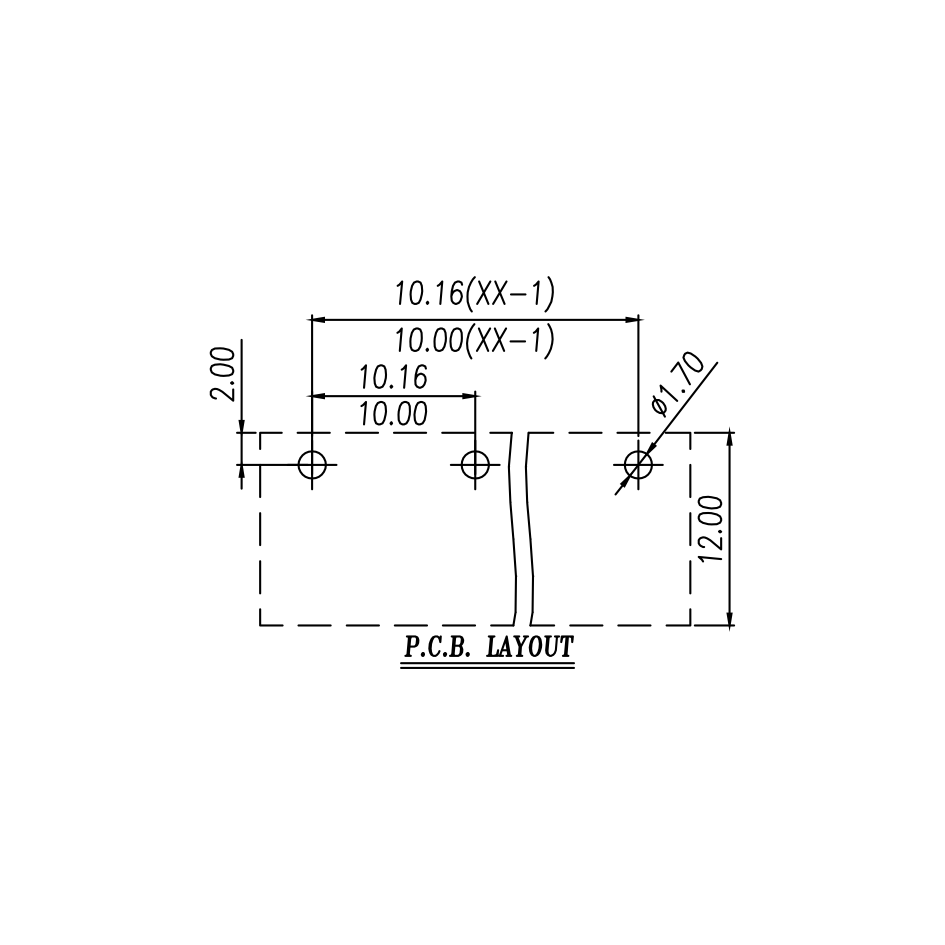

    PCB opening diagram
