PCB socket DB2EVH-2.5

Printed Circuit Board Housing, Nominal Cross Section: 0.5 mm2, Color: Green, Rated Current: 4 A, Rated Voltage (III/2): 160 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Potentials: 4-48, Number of Rows: 2, Number of Positions: 4-48, Connections: 4-48, Product Family: DB2EVH, Pin Pitch: 2.5 mm, Mounting: Wave Soldering Pin Arrangement: Straight, Pin [P]: 3.8 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2EVH, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Package Type: Carton

Advantage

☑ Universal mounting method, can be used worldwide
☑Multi-layer wire connection, can achieve high contact density

0
Views: 537
Contact usDownload PDF View 3D Download CAD
  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - -
    Rated Current [A]
    5 - -
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.3KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    80 160 320
    Rated Current [A]
    5 5 5
    Impulse withstand voltage [KV]
    1.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn piated



    General Parameters



    Pitch/Poles [mm]/[P]
    2.5/2*2~2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250°C/5S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    ∅1.4

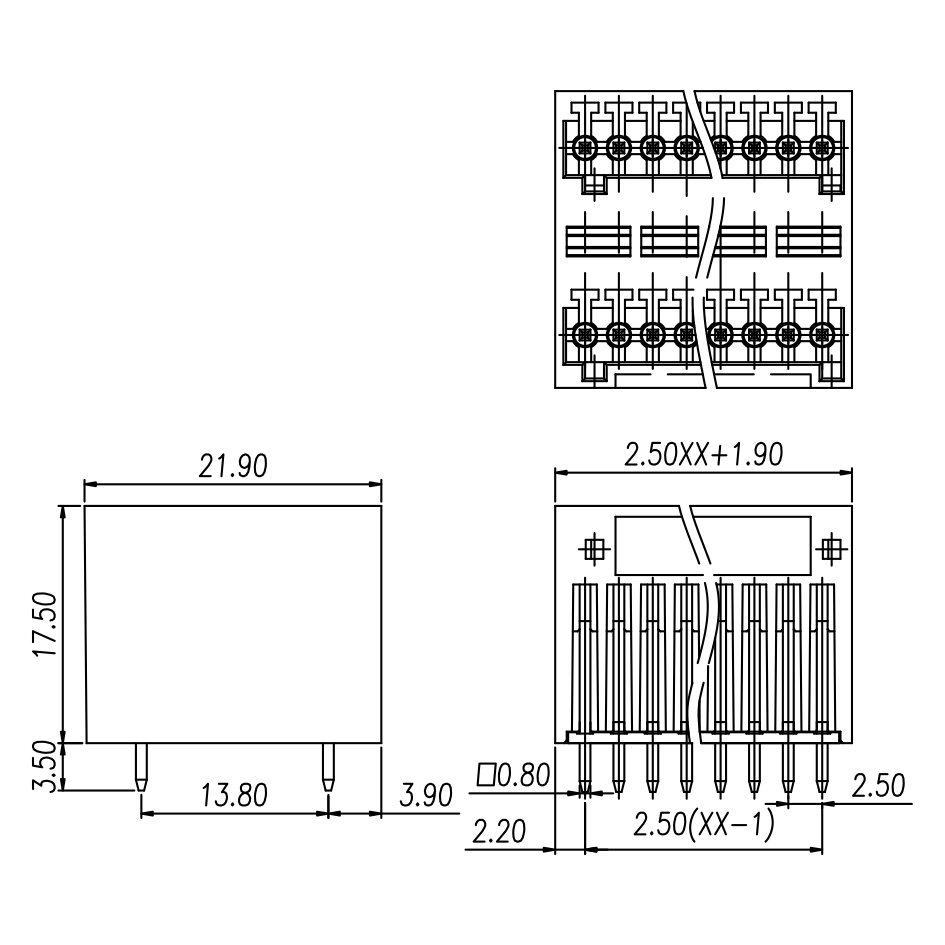

    Size Chart

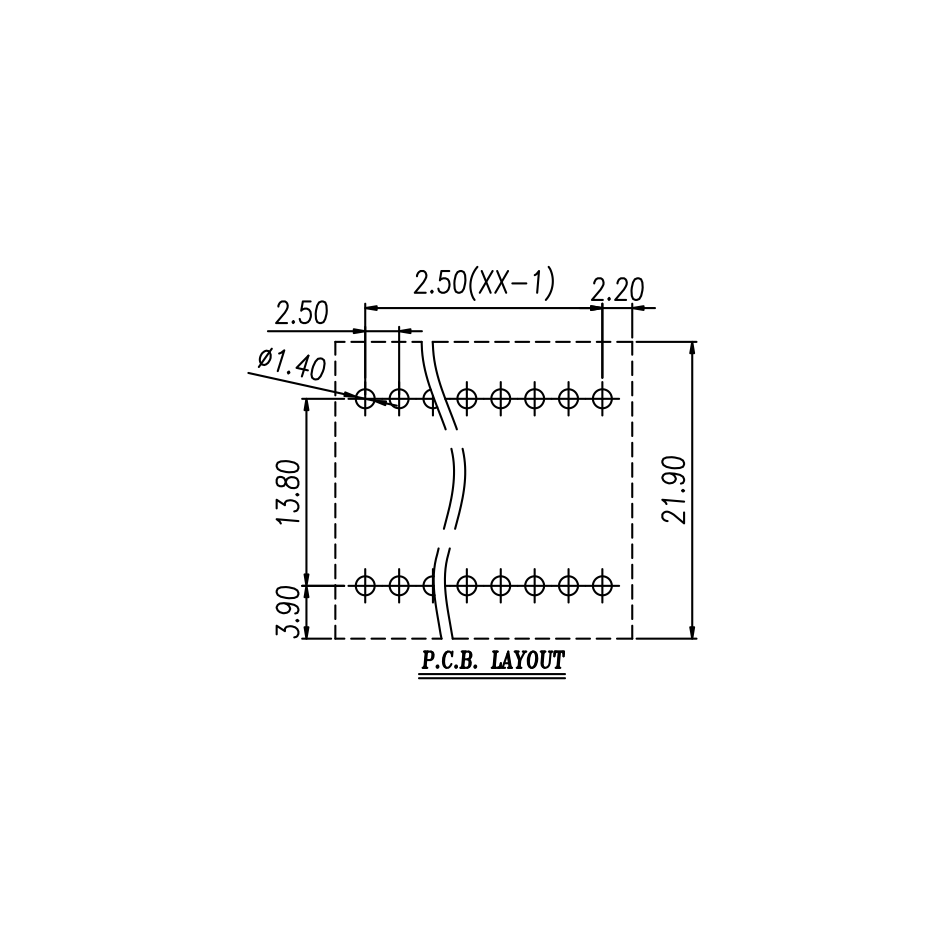

    PCB opening diagram
