Needle arrangement DB332V-3.5

Pin connector, Nominal cross-section: 0.5 mm2, Colour: black, Rated current: 8 A (depending on plug used), Rated voltage (III/2): 250 V, Contact surface: tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection quantity: 2-24, Series: DB332V, Pin pitch: 3.5 mm Mounting: THR soldering, Pin arrangement: straight, Pins [P]: 3.8 mm, Insertion system: COMBICON DB332V, Interlocking: without, Mounting: without, Packing type: carton, Maximum current depends on the plug used. Take the lower current value of the plug and the pin. The pins are made of high temperature resistant material and are suitable for reflow soldering processes.

Advantages

☑ Suitable for wave and reflow soldering processes
☑ Optimal pin geometry for all COMBICON pin connectors
1+
Views: 722
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical specifications-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 250 250
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    Other Data



    Pitch/Poles [mm]/[P]
    3.5/2~24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -30~+120
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø1.0
    PCB Hole Diameter [mm]
    Ø1.2

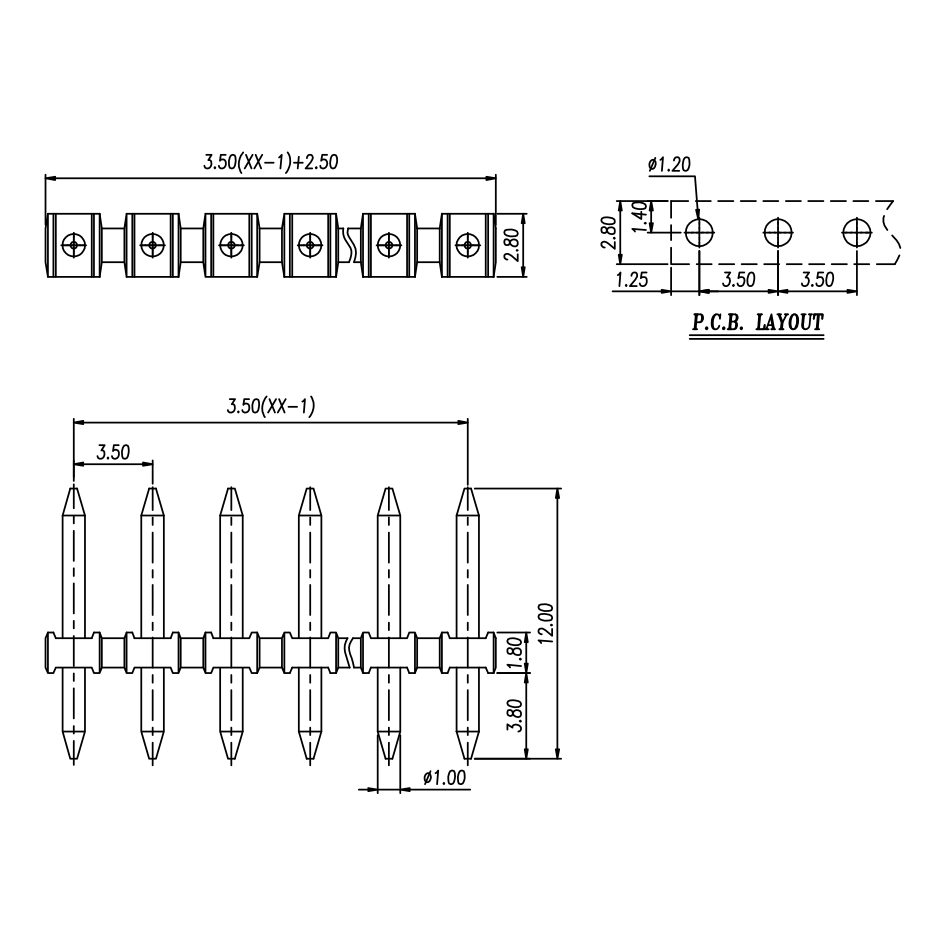

    Dimensional drawings
