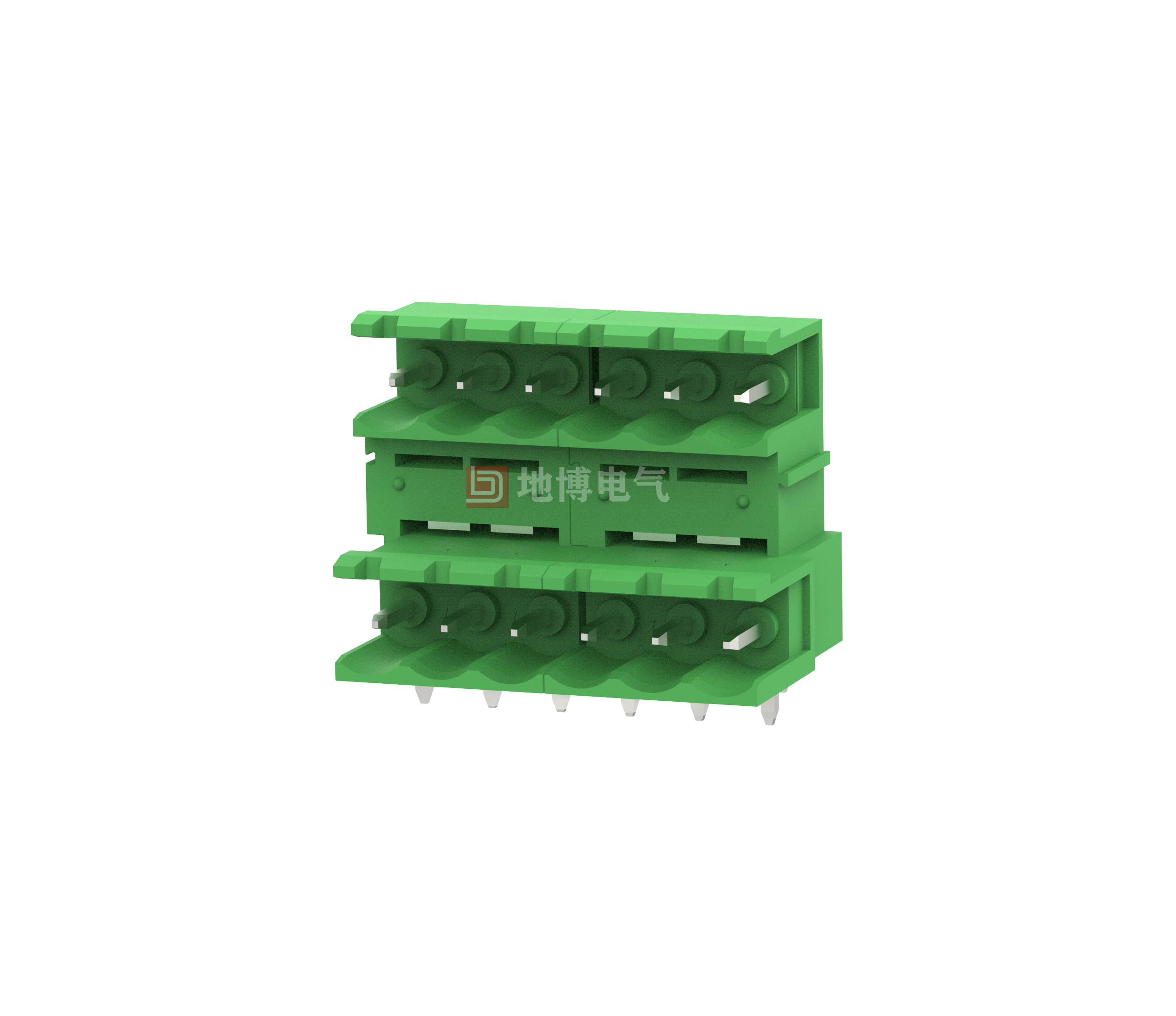

PCB socket DB2ERT-5.08

PCB Housing, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 10 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 4-48, Connections: 4-48, Series: DB2ERT, Pin pitch: 5.08 mm, Mounting: Wave soldering, Pin alignment: Straight, Solder pin [P]: 3.9 mm, Number of pins per potential: 1, Insertion system: COMBICON : 5.08 mm, Mounting: Wave soldering, Pin alignment: Straight alignment, Solder pin [P]: 3.9 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2ERT, Pin connector style alignment: Standard, Interlocking: Without, Mounting: Without, Package type: Carton, The product can be composed of connectors of different bit numbers! When used in combination with DB2EK or DB2EKD plug components, both DB2EK (or DB2EKD) and DB2EK plugs (or DB2EKD) must be used.

Advantages

☑ Ensure high device design flexibility - only one socket is needed for connectors that utilize different connection technologies
☑ Easy PCB replacement with pluggable modules
☑ Universal mounting for worldwide use
☑ Multi-layer wire connection for high contact density
0
Views: 476
Contact usDownload PDF View 3D Download CAD
  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    5.0,5.08/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    Ø1.7

    Size Chart

    PCB opening diagram
