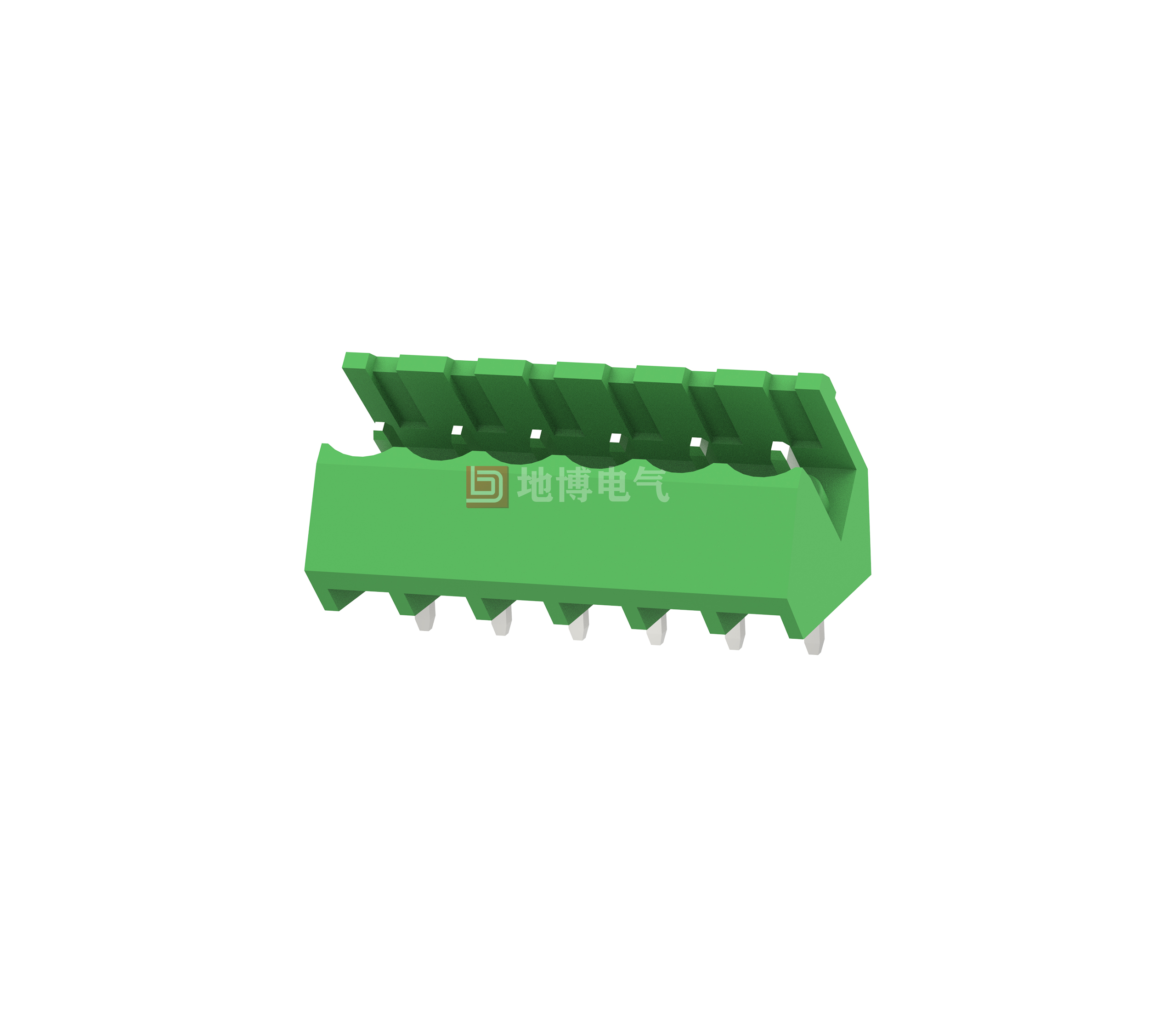

PCB socket DB2EL-5.08

Printed Circuit Board Housing, Nominal Cross Section: 2.5 mm2, Color: Green, Nominal Operating Current: 16 A (see Temperature Load Curve), Rated Voltage (III/2): 320 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Positions: 2-24, Number of Rows: 1, Number of Positions: 2-24 Number of Positions: 2-24, Connections: 2-24, Product Family: DB2EL, Pin Pitch: 5.08 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Solder Pins [P]: 3.9 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2EL, Pin Connector Style Alignment: Standard, Interlocking: Not Available, Mounting: Not Available, Package Type: Carton

Advantages

☑ Ensures a high degree of flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
☑ universal mounting for worldwide use
☑ Curved connection enables multi-row layout on PCB
0
Views: 614
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    等级 Use Group
    B C D
    额定电压 Rate Voltage [V]
    300 - 300
    额定电流 Rated Current [A]
    15 - 10
    接线范围 Wire Range [AWG]
    /
    耐电压 Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    过电压类别 Overvoltage Category
    III III II
    污染等级 Contamination Class
    3 2 2
    额定电压 Rated Voltage [V]
    250 320 400
    额定电流 Rated Current [A]
    10 10 10
    额定冲击电压 Impulse withstand voltage [KV]
    4 4 4
    导线截面积[硬/柔] Conductor cross section [mm²]
    /



    Material Information



    绝缘材料 Insulation Material
    PA66
    阻燃等级 Flame relardant rating
    UL94V-0
    导体材料 Conductor Material
    Copper alloy
    导体表面镀层 Plating of conductor surface
    Sn plated



    General parameters



    间距/极数 Pitch/Poles [mm]/[P]
    5.08/2-24
    剥线长度 Stripping Length [mm]
    /
    螺丝/扭矩 Screw/Torque(Max)[N.m]
    /
    工作温度 Operating temperature [℃]
    -40~+105
    焊锡温度 Soldering temperature
    250℃/5S
    引针尺寸 Pin dimensions [mm]
    1.0*1.0
    PCB板孔径 PCB Hole Diameter [mm]
    ∅1.7







    Dimensional drawings





    PCB cut-out diagram
