PCB socket DB3EVC-7.62

Printed Circuit Board Housing, Nominal Cross Section: 4 mm2, Colour: Green, Rated Current: 20 A, Rated Voltage (III/2): 630 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Potentials: 2-16, Number of Rows: 1, Number of Positions: 2-16, Connection Volume: 2-16, Product Family: DB3EVC, Pin Pitch: 7.62 mm, Mounting: Wave Soldering, Pin Alignment: Straight, Pin [P]: 5 mm, Number of Pins per Potential: 2, Plugging System: COMBICON DB3EVC Pin Arrangement: Straight, Pins [P]: 5 mm, Number of Pins per Potential: 2, Insertion System: COMBICON DB3EVC, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Packaging Type: Carton

Advantages

☑Universal installation for worldwide use
☑Ensures a high degree of flexibility in equipment design - only one socket is needed for connectors with different connection technologies
☑Using plug-in modules, PCBs can be easily replaced
0
Views: 615
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    30 30 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 1000
    Rated Current [A]
    20 20 20
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    /



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.62/2-16
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*1.0
    PCB Hole Diameter [mm]
    Ø1.5

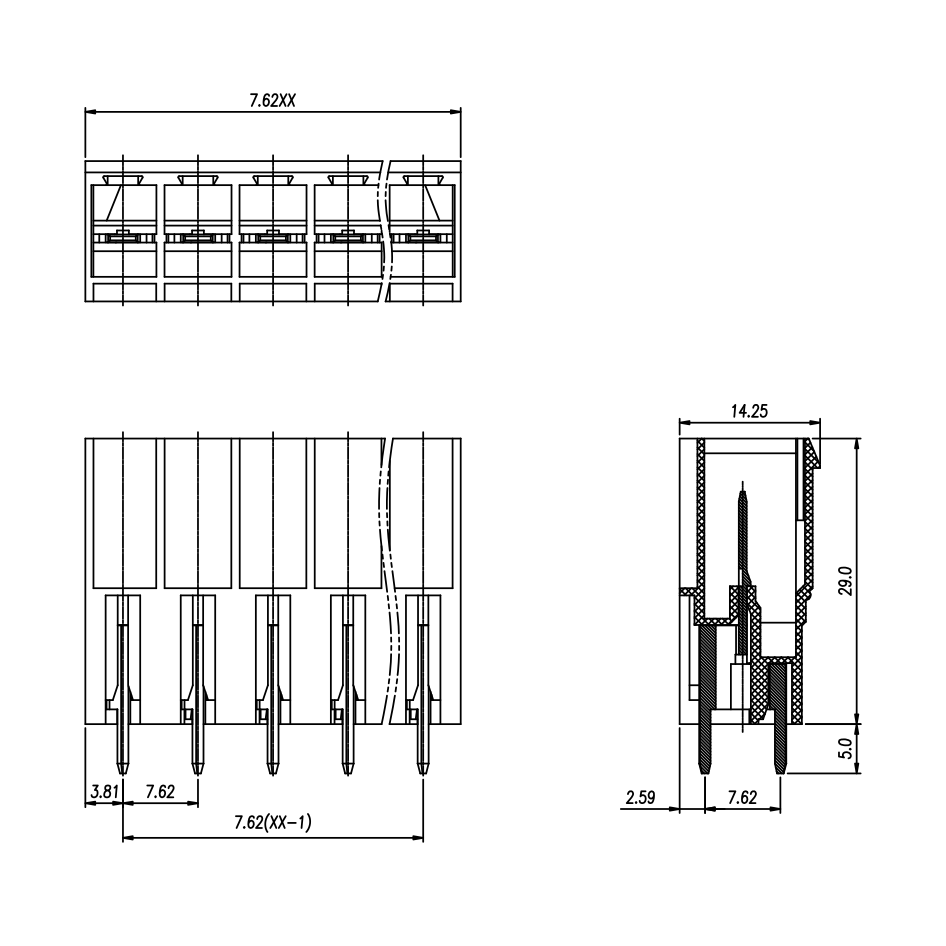

    Dimensional drawings

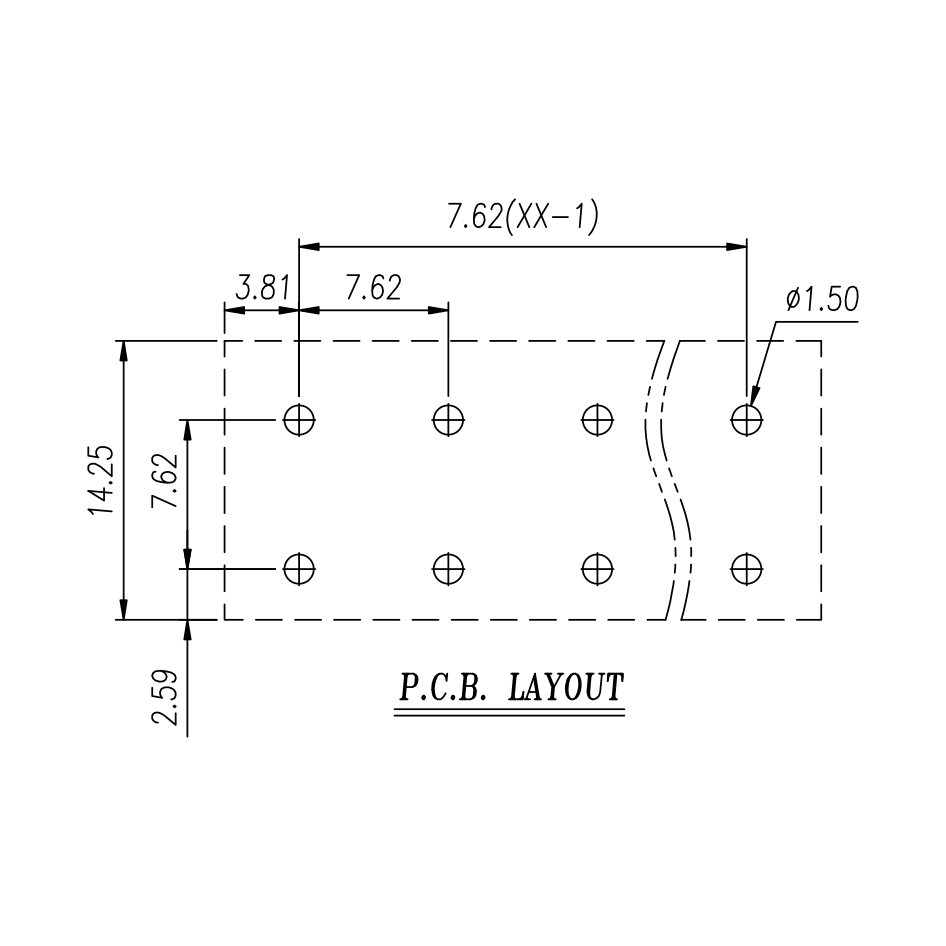

    PCB cut-out diagram
