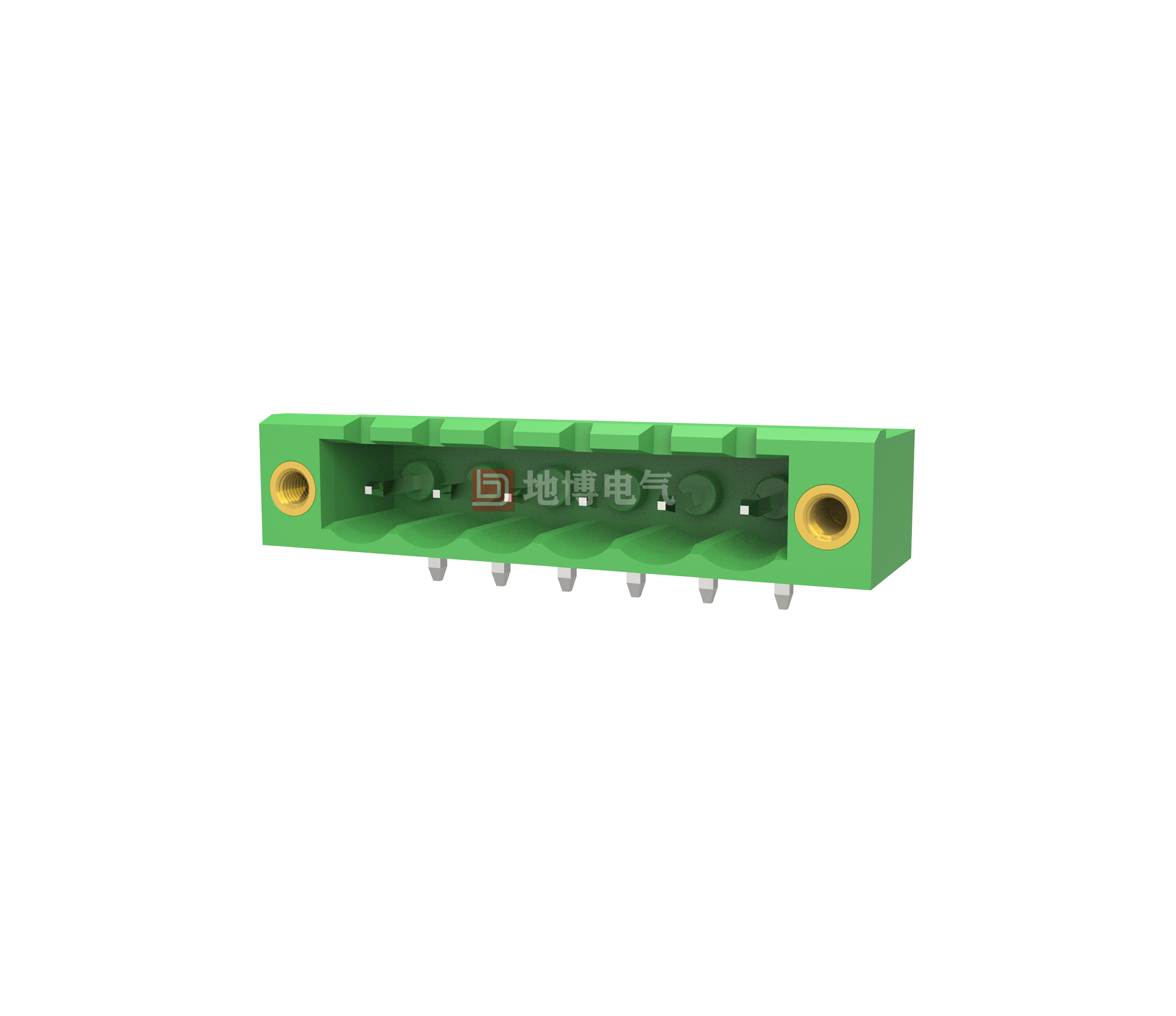

PCB infixing DB2ERM-5.08

Printed circuit board housing, Nominal cross-section: 2.5 mm2, Colour: green, Nominal operating current: 12 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection quantity: 2-24, Product family: DB2ERM, Pin pitch: 5.08 mm, Mounting: Wave Soldering, Pin Arrangement: Straight, Solder Pins [P]: 3.5 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2ERM, Pin Connector Style Alignment: Standard, Interlocking: Screw Fastening, Mounting: Screw Flange, Packing Type: Carton

Advantages

☑ Ensures a high degree of flexibility in equipment design - only one socket is needed for connectors with different connection technologies
☑ Easy PCB replacement thanks to plug-in modules
☑Universal mounting method for worldwide use
☑Plug-in direction parallel to the PCB
☑Bolt flange for high mechanical stability

Translated with www.DeepL.com/Translator (free version)

0
Views: 314
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    ∅1.7

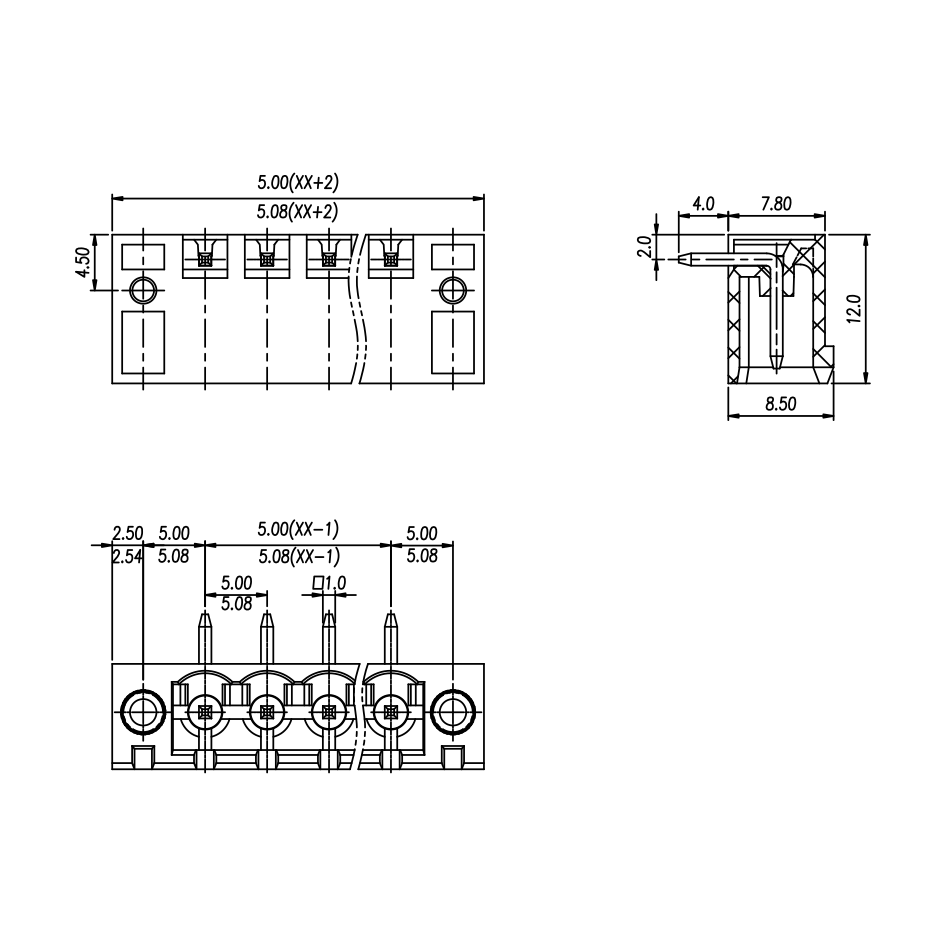

    Dimensional drawings

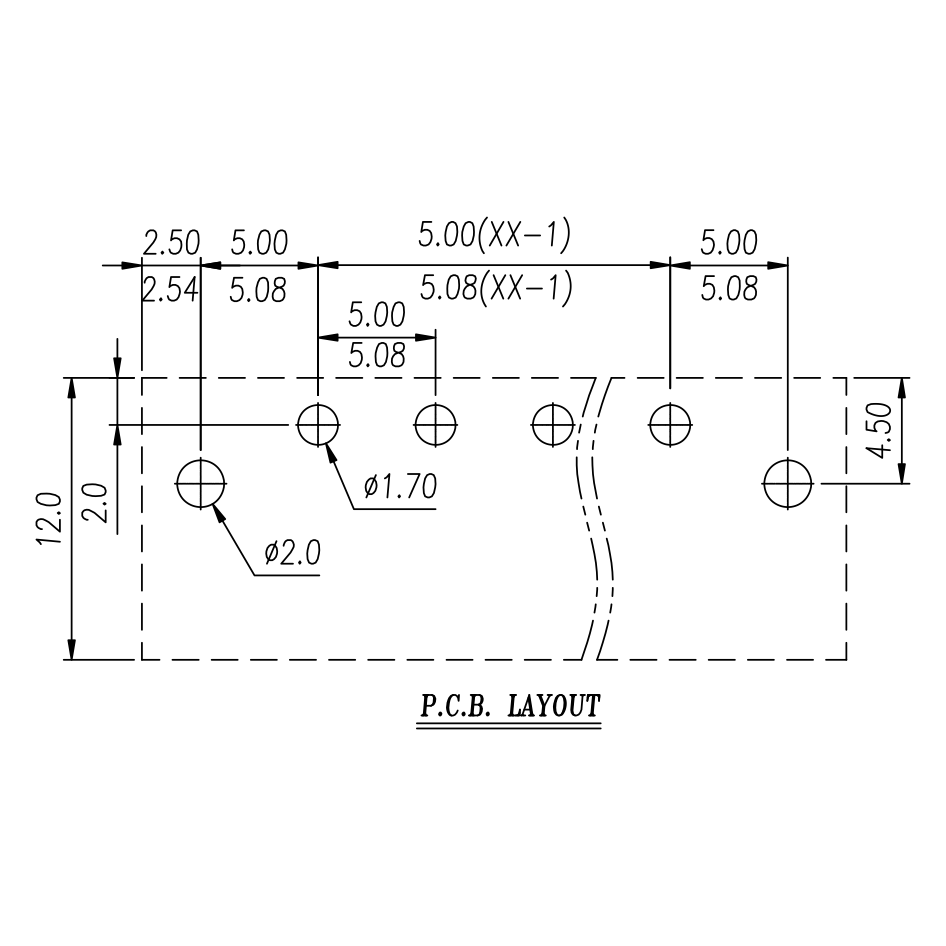

    PCB cut-out diagram
