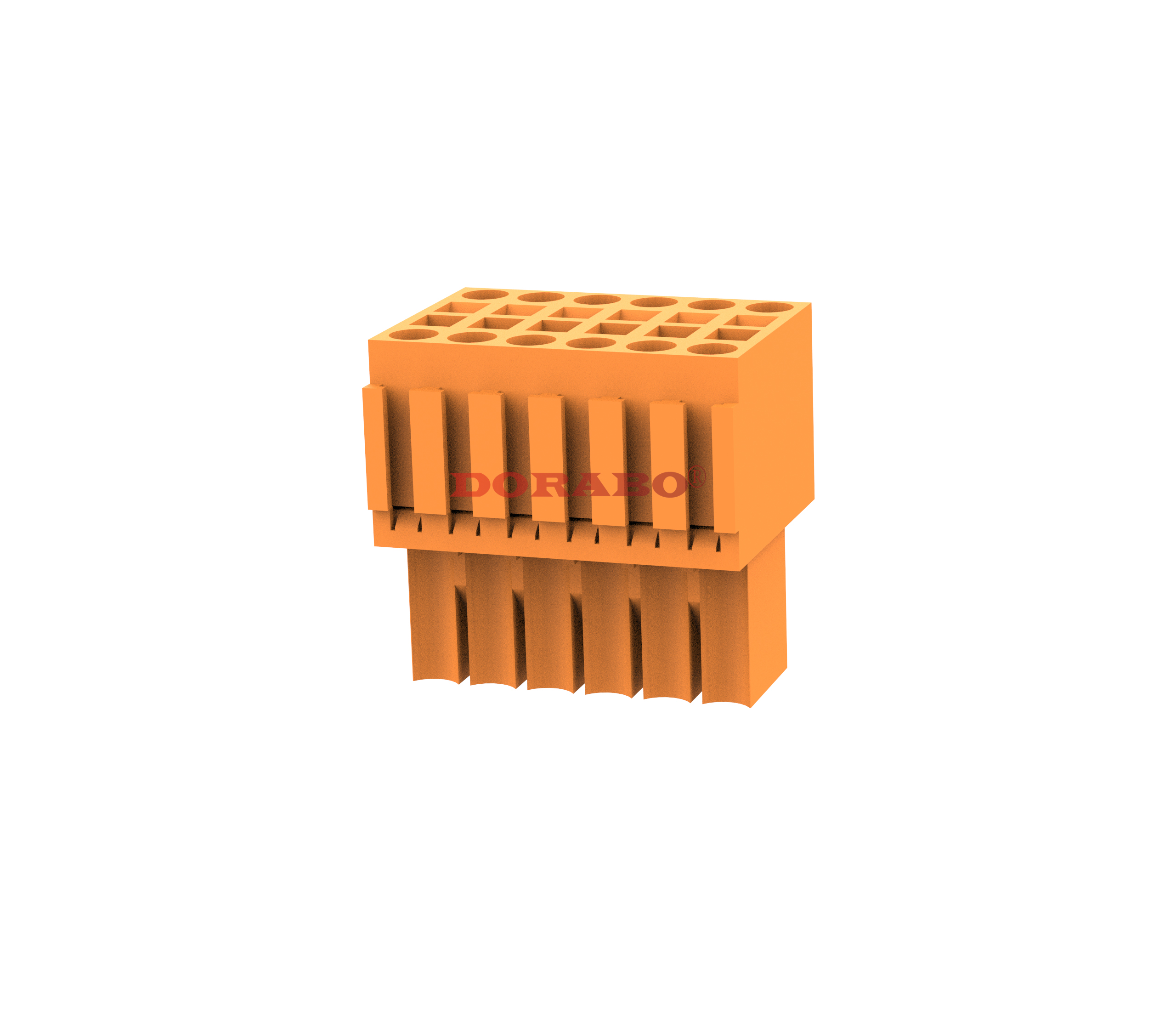

PCB Plug-in Connector DB2EEK-3.5

Plug-in connector, Rated cross-section: 1.0 mm2, Colour: orange, Nominal working current: 7 A, Rated voltage (III/2): 150 V, Contact surface: tin, Contact type: eyelet connector, Number of potentials: 4-48, Number of rows: 2, Number of positions: 4-48, Connections: 4-48, Series: DB2EEK, Pin spacing: 3.5 mm, Wiring form: straight Plug-in spring connection, Connection direction: 0°, Number of pins per potential: 1, Insertion system: COMBICON DB2EEK, Packaging type: Carton packaging

Advantages

☑Time-saving plug-in connection without tools
☑Set contact force ensures long term stability of the contacts.
☑Connecting and disconnecting wires from a single direction, which can be integrated into the front of the device
☑Quick and easy testing with built-in test elements
0
Views: 125
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - 150
    Rated Current [A]
    7 - 7
    Wire Range [AWG]
    28~18
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    80 160 200
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    1.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.0



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/2*2-2*24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

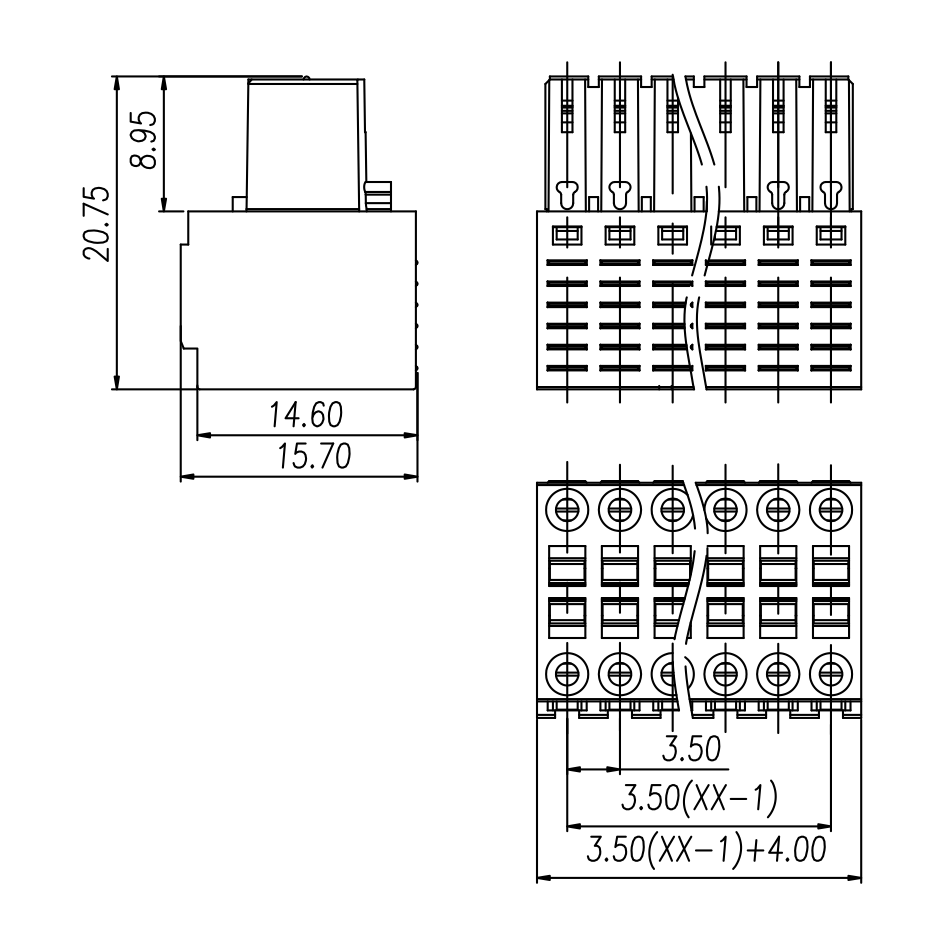

    dimension drawing
