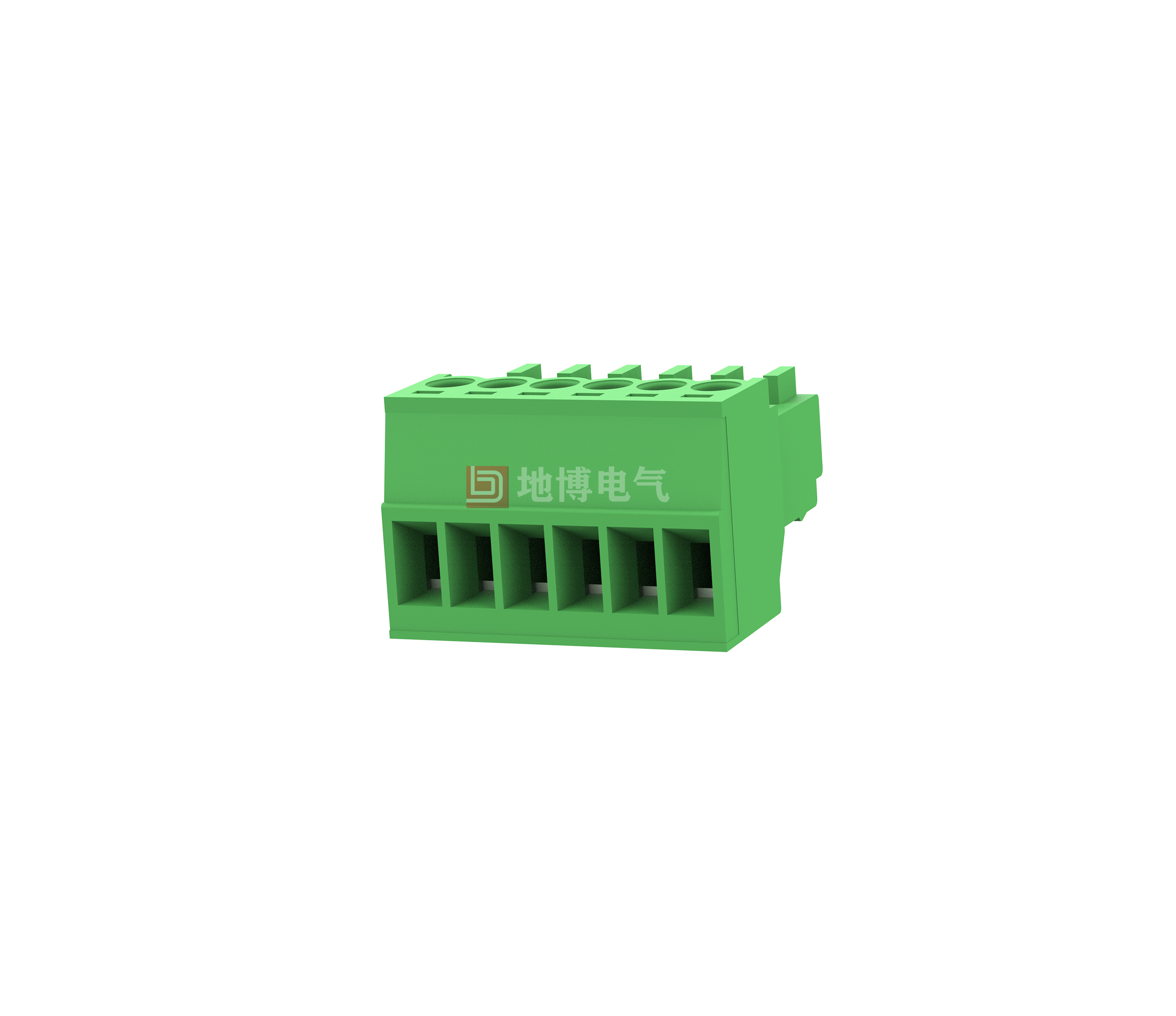

PCB plug-in connector DB2EK-2.54

Plug-in connector, nominal cross-section: 0.5 mm2, colour: green, rated current: 4 A, rated voltage (III/2): 160 V, contact surface: tin, contact type: hole connector, number of potentials: 2-24, number of rows: 1, number of digits: 2-24, connection capacity: 2-24, product family: DB2EK, pin pitch: 2.54 mm, wiring method: screw connection with crimp, screw head size: L-slot, orientation of lead/PCB connection: 0°, number of solder pins per potential: 1, mating system: COMBICON DB2EK, interlocking: without, number of pins per potential: 1 Screw connection, Screw head size: L slotted, Wire/PCB connection direction: 0°, Number of pins per potential: 1, Insertion system: COMBICON DB2EK, Interlocking: without, Mounting: without, Packing type: carton

Advantage

☑ Universal connection for worldwide use
☑Maximum contact force, low temperature rise
☑Allows the connection of two stranded wires
0
Views: 422
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - -
    Rated Current [A]
    5 - -
    Wire Range [AWG]
    26-20
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    100 160 320
    Rated Current [A]
    5 5 5
    Impulse withstand voltage [KV]
    1.5 2.5 2.5
    Conductor cross section [mm²]
    0.2-0.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    2.54/2-24
    Stripping Length [mm]
    5-6
    Screw/Torque(Max)[N.m]
    M1.6/0.1
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /



    Dimensional drawings
