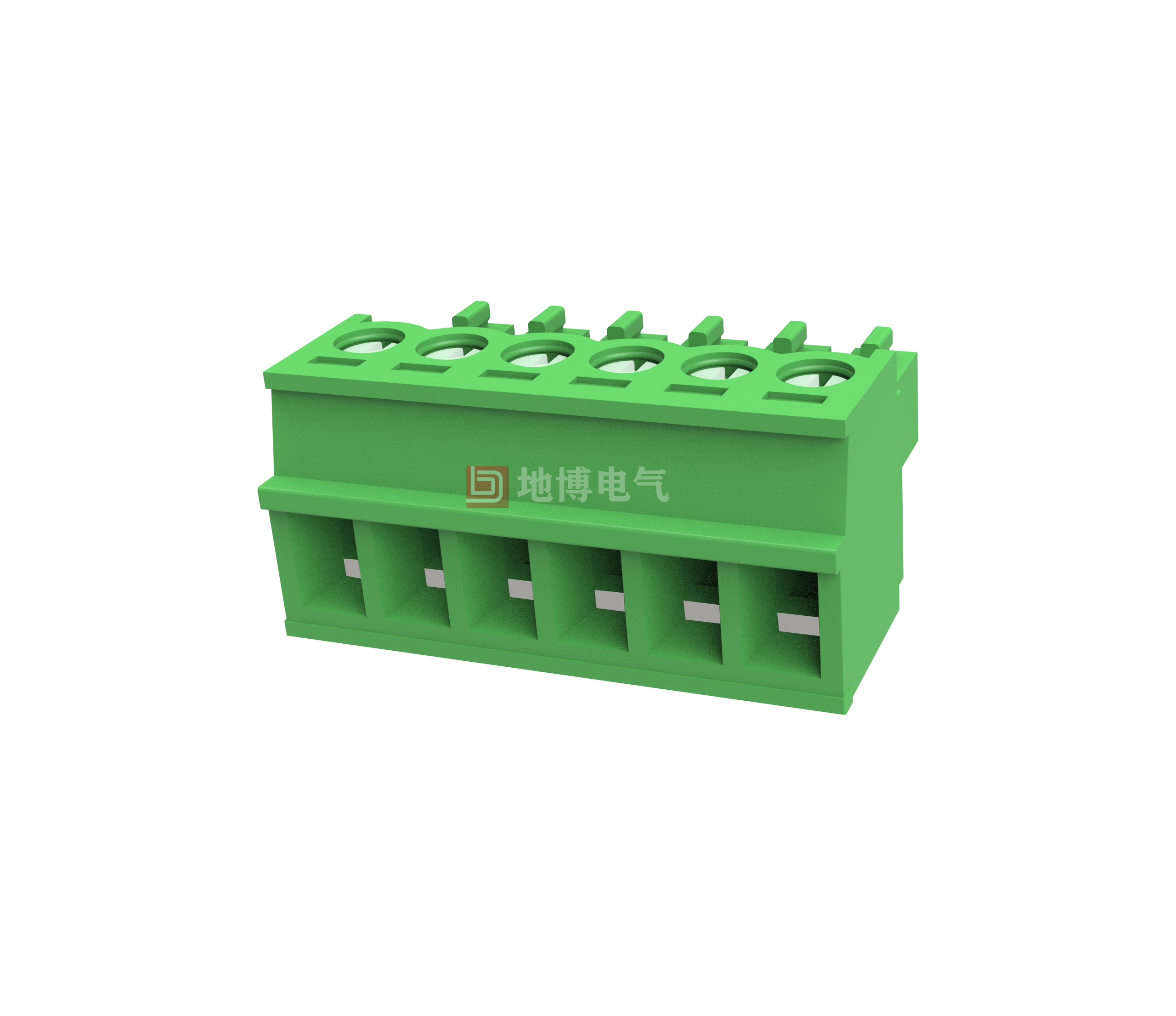

PCB plug-in connector DB2EK-3.5

Plug-in connector, nominal cross-section: 1.5 mm2, colour: green, rated current: 8 A, rated voltage (III/2): 160 V, contact surface: tin, contact type: hole connector, number of potentials: 2-24, number of rows: 1, number of positions: 2-24, connection capacity: 2-24, product family: DB2EK, pin pitch: 3.5 mm, wiring method: screw connection with crimp, screw head size: L-slot, orientation of lead/PCB connection: 0°, number of solder pins per potential: 1, plug-in system: COMBICON DB2EK, interlocking: without, number of pins per potential: 1 Screw connection, Screw head size: L slotted, Wire/PCB connection direction: 0°, Number of pins per potential: 1, Insertion system: COMBICON DB2EK, Interlocking: without, Mounting: without, Packing type: carton

Advantage

☑ Universal connection for worldwide use
☑Maximum contact force, low temperature rise
☑Allows the connection of two stranded wires
0
Views: 358
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 250
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.5~1.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5,3.81/2*2-2*24
    Stripping Length [mm]
    6-7
    Screw/Torque(Max)[N.m]
    M2/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

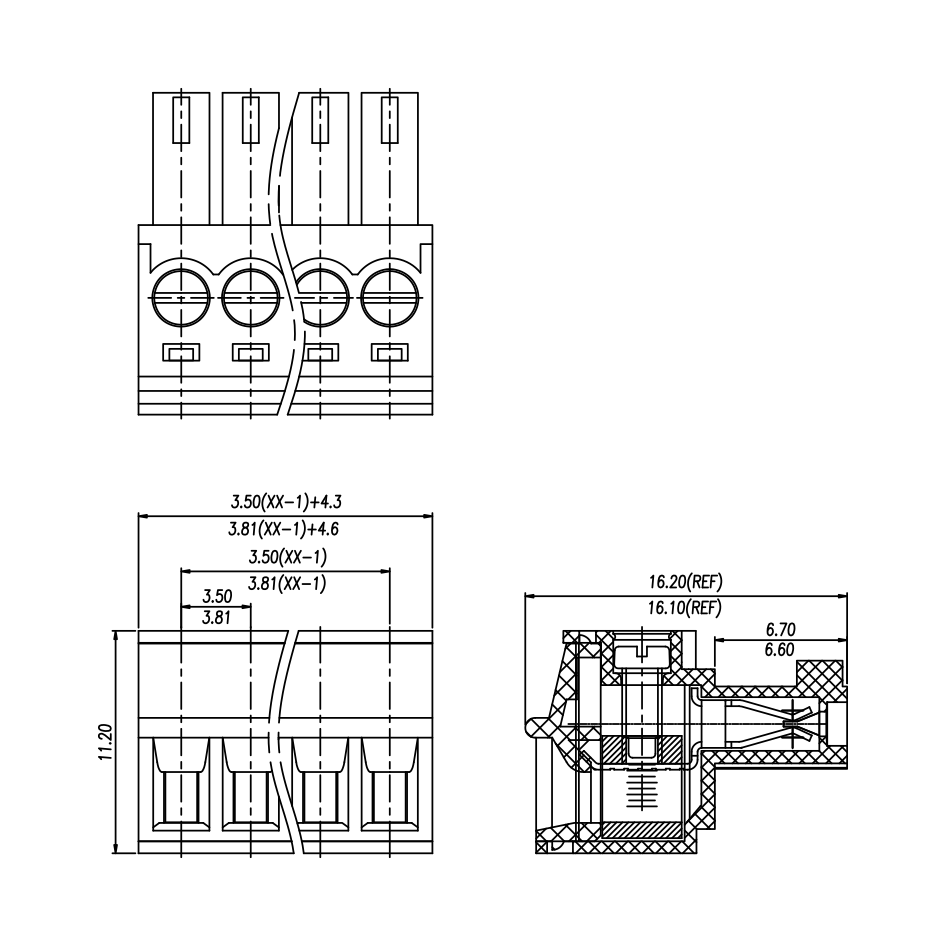

    Dimensional drawings
