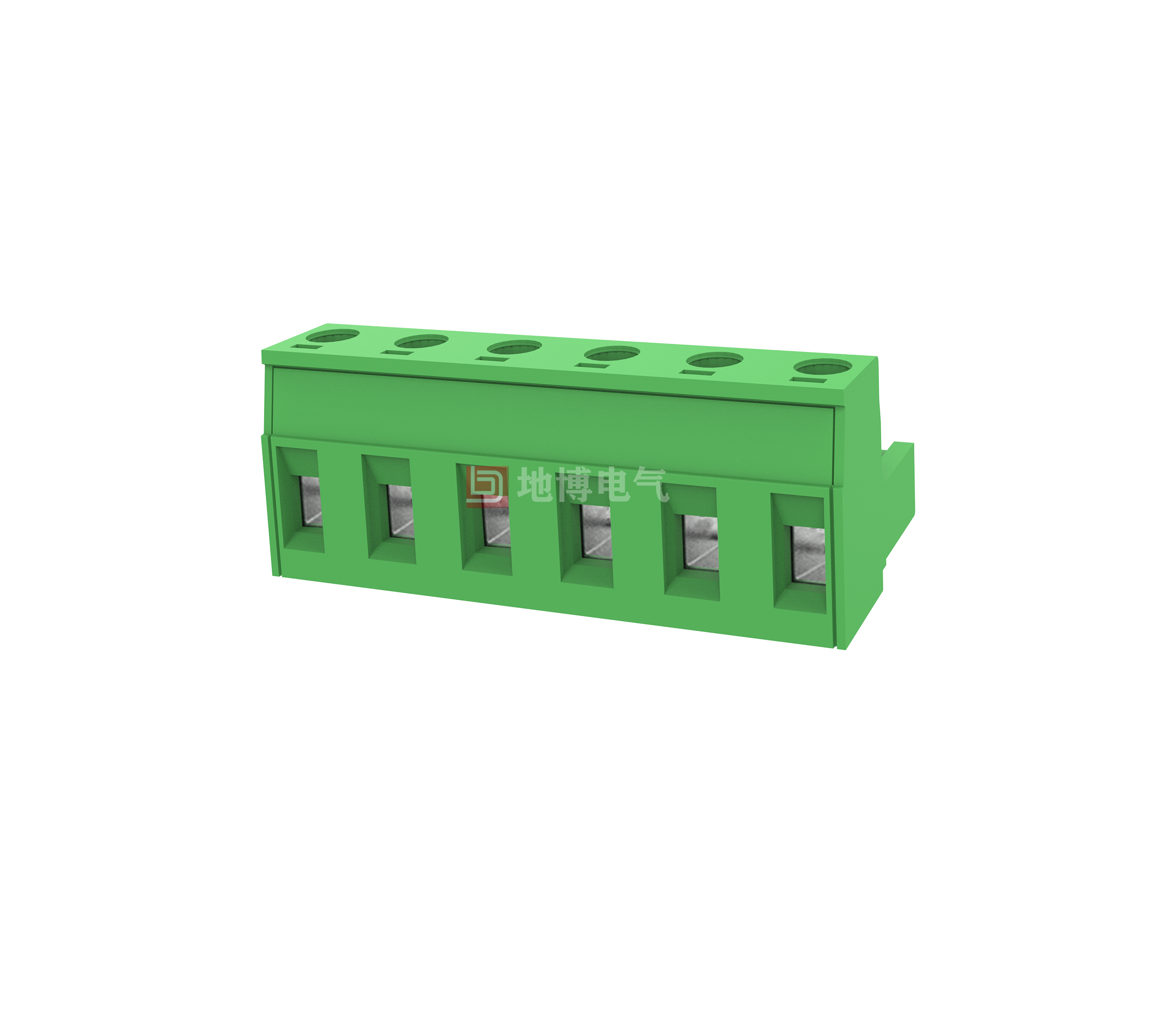

PCB plug-in connector DB2EK-7.62

Plug-in connector, Nominal cross-section: 2.5 mm2, Colour: green, Nominal operating current: 12 A, Rated voltage (III/2): 630 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-16, Number of rows: 1, Number of digits: 2-16, Connection capacity: 2-16, Series: DB2EK, Pin pitch: 7.62 mm, Wiring method: screw connection with crimp, Screw head size: L slot, Wire/PCB connection direction: 0°, Latch: - latch, Plug-in system: COMBICON DB2EK, Interlocking: without, Mounting: Latch Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 0°, Closure: - Closure, Insertion system: COMBICON DB2EK, Interlocking: without, Mounting: without, Packing type: carton

Advantage

☑ Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Larger pin spacing for increased voltage requirements
0
Views: 282
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL

    等级 Use Group
    III III II
    额定电压 Rate Voltage [V]
    300 - 300
    额定电流 Rated Current [A]
    15 - 12
    接线范围 Wire Range [AWG]
    28-12
    耐电压 Dielectric Voltage-Withstand
    1.6KV





    Technical data-IEC



    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 1000
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]

    7.62/2~16
    Stripping Length [mm]
    9-10
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    /
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]

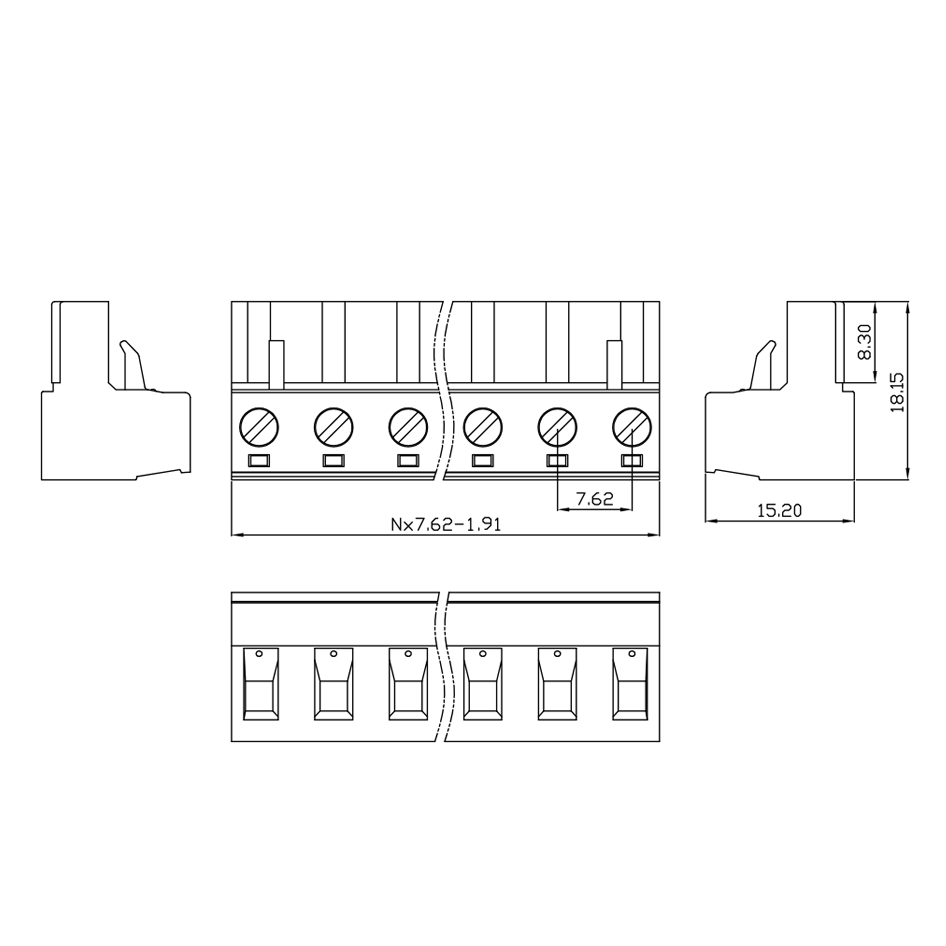

    Dimensional drawings
