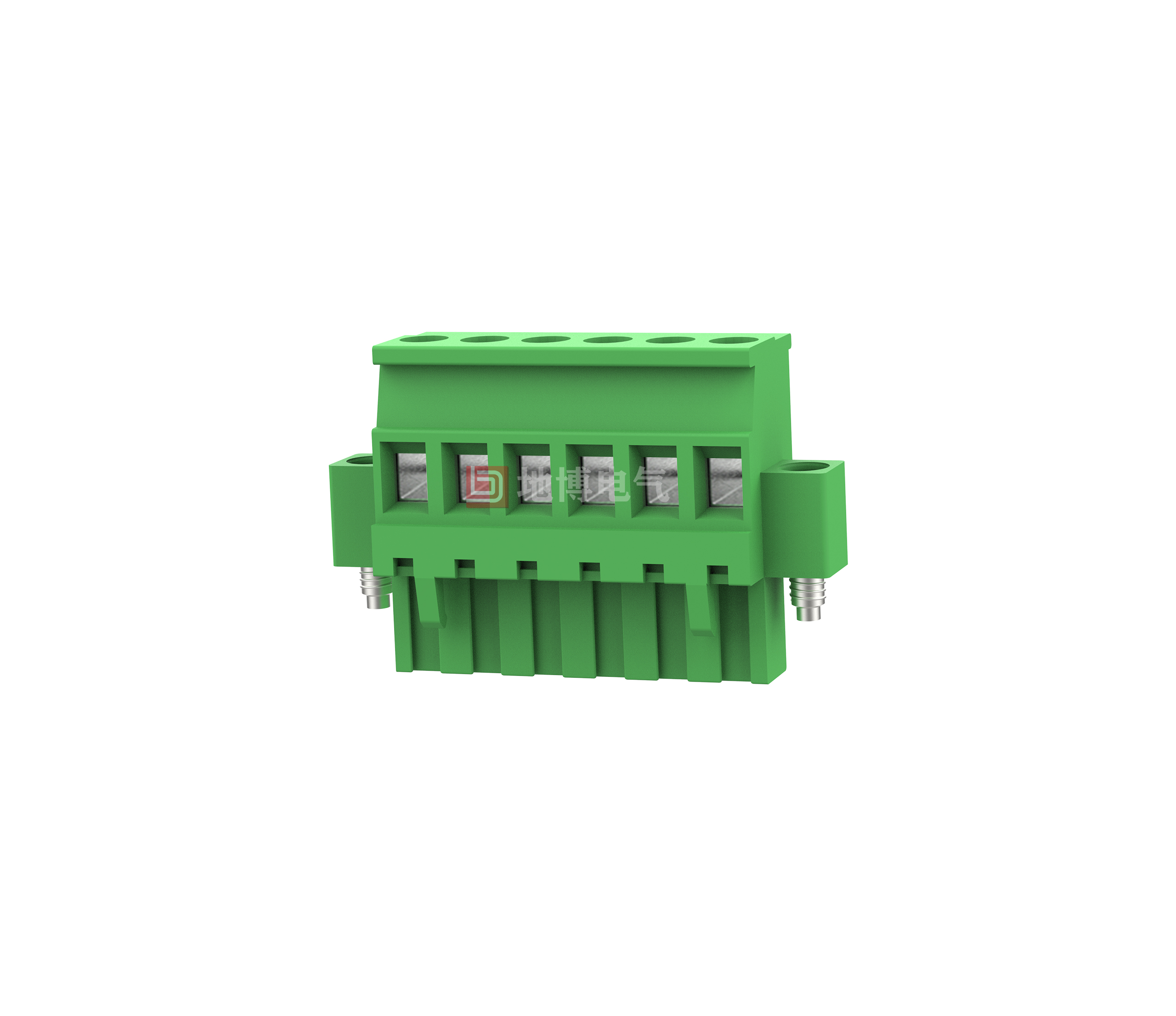

PCB plug-in connector DB2EKAM-5.08

Plug-in connector, rated cross section: 2.5 mm2, color: green, nominal working current: 16 A (see temperature load curve), rated voltage (III/2): 320 V, contact surface: tin, contact type: hole-type connector, number of electric digits: 2-24, number of rows: 1, number of digits: 2-24, connection quantity: 2-24, product series: DB2EKAM, needle pitch: 5.08 mm, wiring mode: screw connection with compression piece, screw head specification: L slot, Wire/PCB connection direction: 90 °, latch: - latch, plugging system: COMBICON DB2EKAM, interlock: screw fastening, installation: threaded flange, packaging type: carton packaging

Advantage

☑ Universal connection mode, which can be used worldwide
☑ Bolt flange ensures high mechanical stability
☑ Maximum contact force, low temperature rise
☑ Allow connection of two strands
0
Views: 211
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Ni plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0,5.08/2~24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
