PCB plug-in connector DB2EKDG-5.08

PCB connector, rated cross-section: 2.5 mm2, color: green, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: female plug, potentials: 2-24, rows: 1, number of positions: 2-24, number of connections: 2-24, product family: DB2EKDG, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, latching: - latching, plugging system: COMBICON DB2EKDG, interlocking: snap-locking, mounting: self-locking flange, packaging type: carton packing, plug with self-locking flange

Advantage

☑Time-saving plug-in connection without tools
☑Color-coded joysticks make it easy to use intuitively
☑With the built-in test components, testing can be done quickly and easily
☑Can be combined with DB2E series connectors
☑The intuitive locking mechanism prevents accidental disconnection
0
Views: 504
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.08/2-24
    Stripping Length [mm]
    7-8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

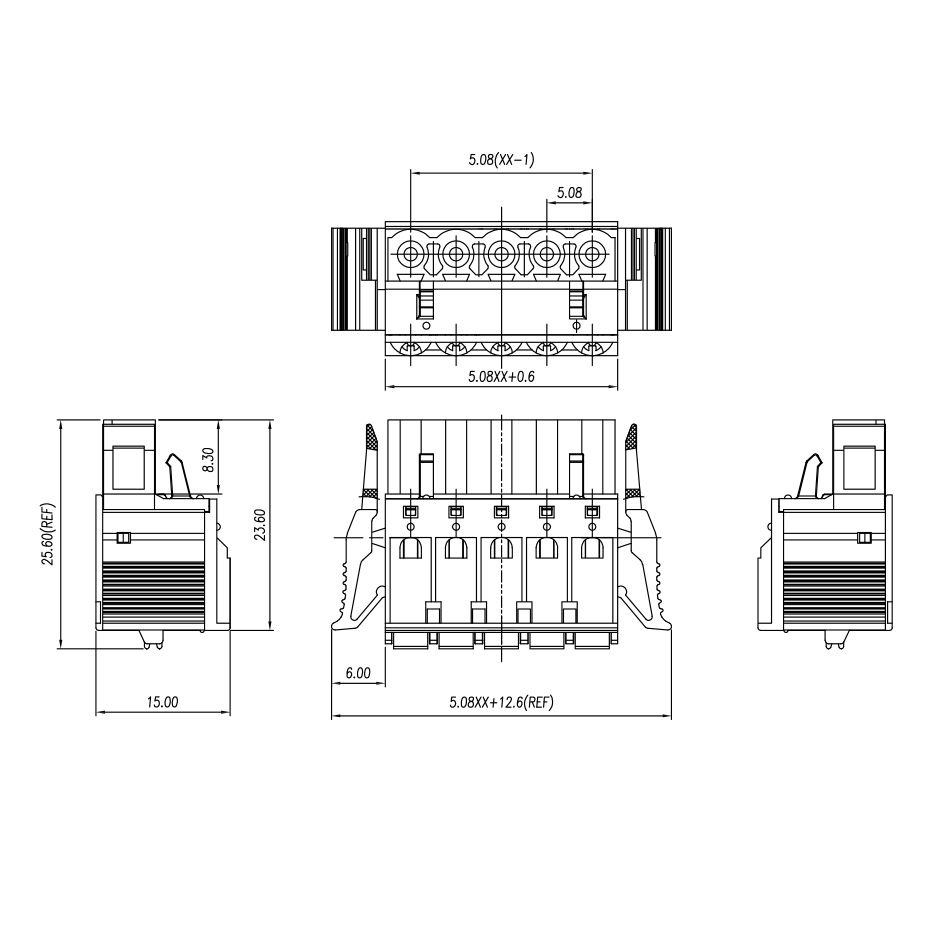

    Size Chart
