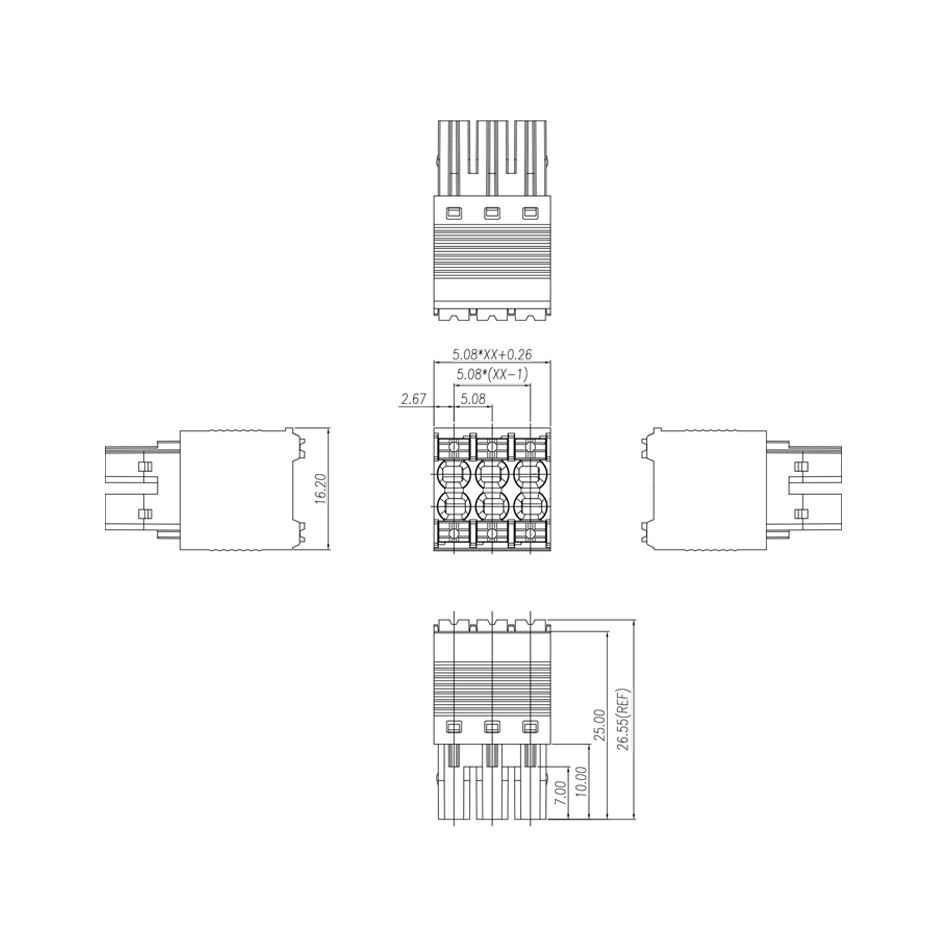

Plug-in connector, Nominal cross-section: 1.5 mm2, Colour: black, Rated current: 10 A, Rated voltage (III/2): 300 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 2-24, Connection capacity: 4-48, Series: DB2EKNH, Pin pitch: 5.08mm, Wiring method: Pull-back spring connection Interlocking: without, Mounting: without, Packing type: carton
Advantage
☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Color-coded joystick for intuitive use
☑Optimised installation in limited space: the wires can be operated and connected from one direction
