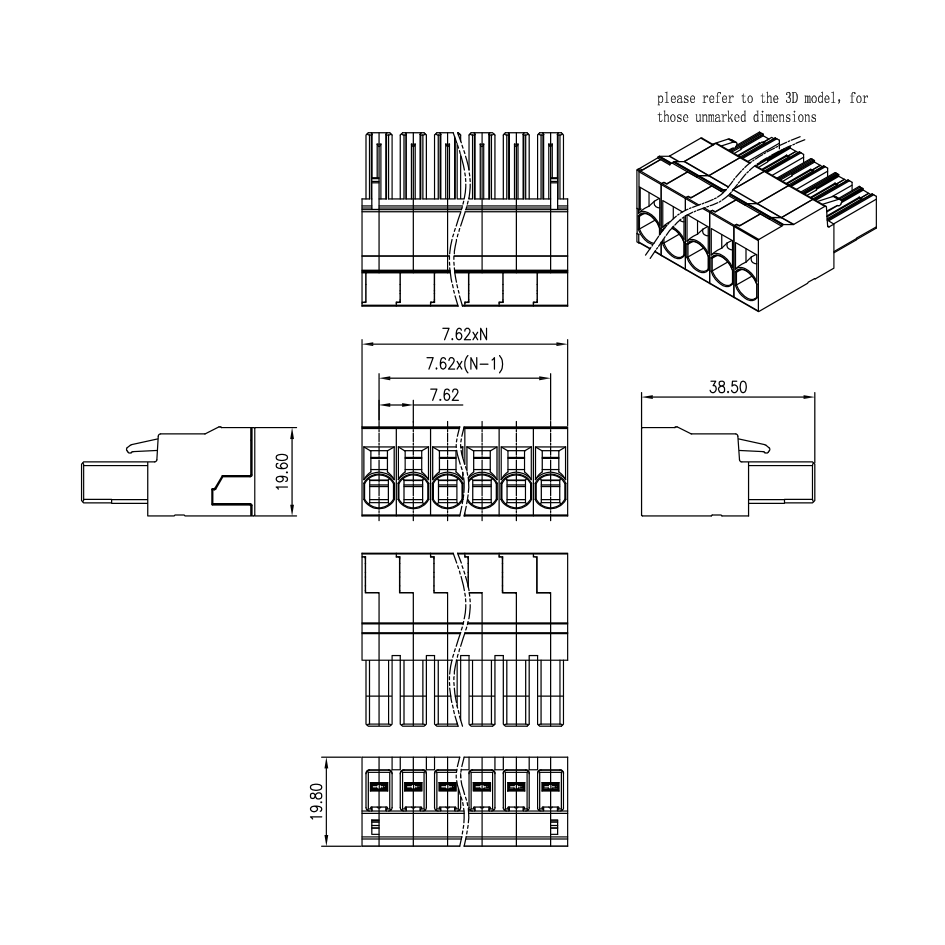

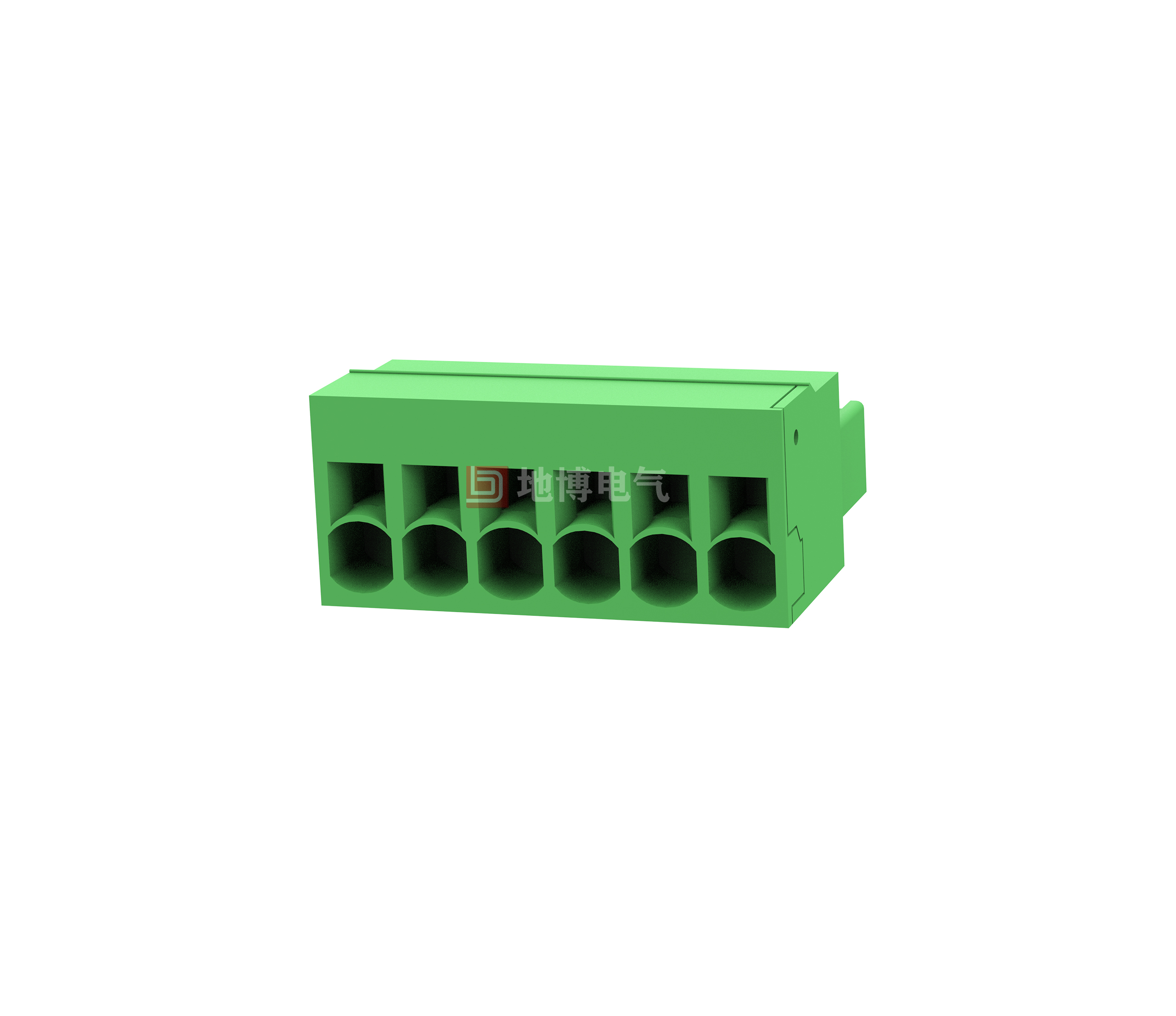

Pluggable connector, Cross-sectional rating: 6 mm2, Color: Green, Current rating: 41 A, Voltage rating (III/2): 1000 V, Contact surface: Tin, Contact type: Hole connector, Number of potentiometers: 2-12, Number of rows: 1, Number of digits: 2-12, Connections: 2-12, Series: DB3EKD, Pin spacing: 7.62 mm, Wiring Pattern: Straight Spring Connection, Wire/PCB Connection Orientation: 0°, Latches: - Latches, Interpolation System: COMBICON DB3EKD, Interlocking: Without, Mounting: Without, Package Type: Carton
Advantages
☑Time-saving plug-and-play connectivity, no tools required
☑Set contact force ensures stable contacts over time
☑Wires can be easily attached by opening the strain relief position with a set screwdriver
☑Built-in steel double reed improves connection reliability, especially with temperature and power fluctuations
☑Optimized for limited Installation in space: manipulate and connect wires from one direction
☑600 V UL listed in minimum size
