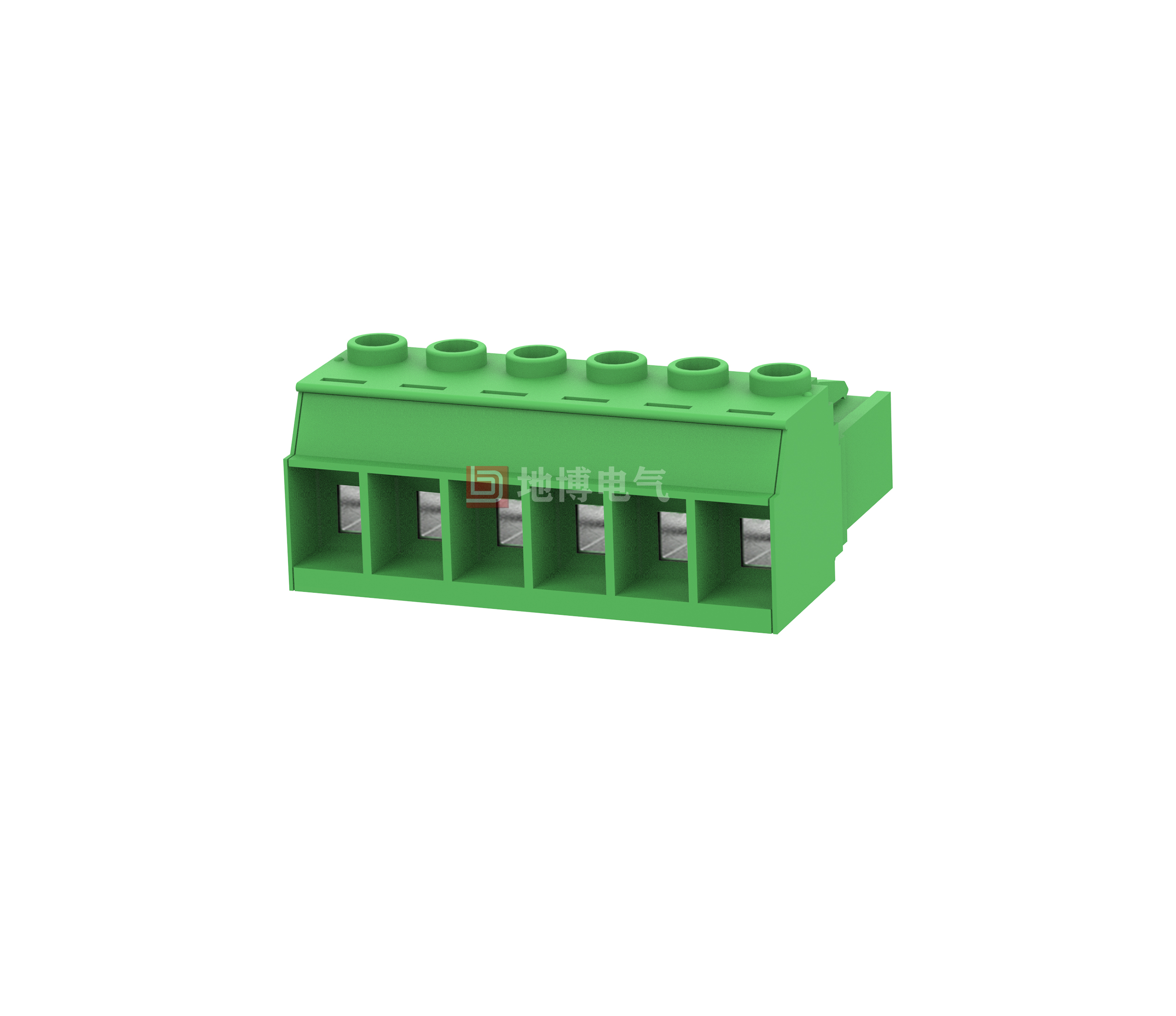

PCB plug-in connector DB3EKH-7.62

Pluggable connector, Cross-sectional rating: 6 mm2, Color: Green, Current rating: 41 A, Voltage rating (III/2): 1000 V, Contact surface: Tin, Contact type: Hole connector, Number of potentiometers: 2-12, Number of rows: 1, Number of digits: 2-12, Connections: 2-12, Series: DB3EKH, Pin pitch: 7.62 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Wire/PCB connection orientation: 0°, Latches: - Latches, mating system: COMBICON DB3EKH, Interlocking: without, Mounting: without, Package type: Carton

Advantages

☑Universal connectivity for global use
☑Maximum contact force with lower ramp-up lower
☑allows two stranded wires to be connected
☑Built-in steel double reed improves connection reliability, especially with temperature and power fluctuations
☑600 V UL listed in minimum size
0
Views: 184
Contact usDownload PDF View 3D Download CAD
  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    41 - 10
    Wire Range [AWG]
    24-8
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-6

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    7.62/2-12
    Stripping Length [mm]
    10
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

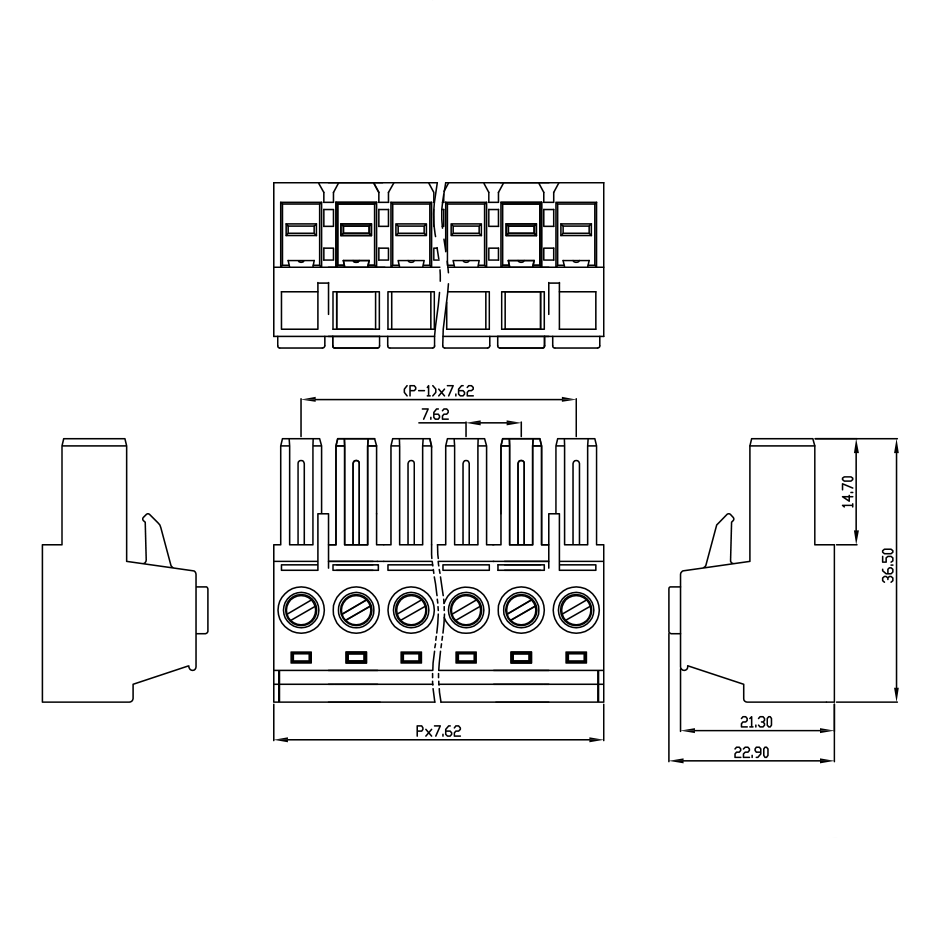

    Size Chart
