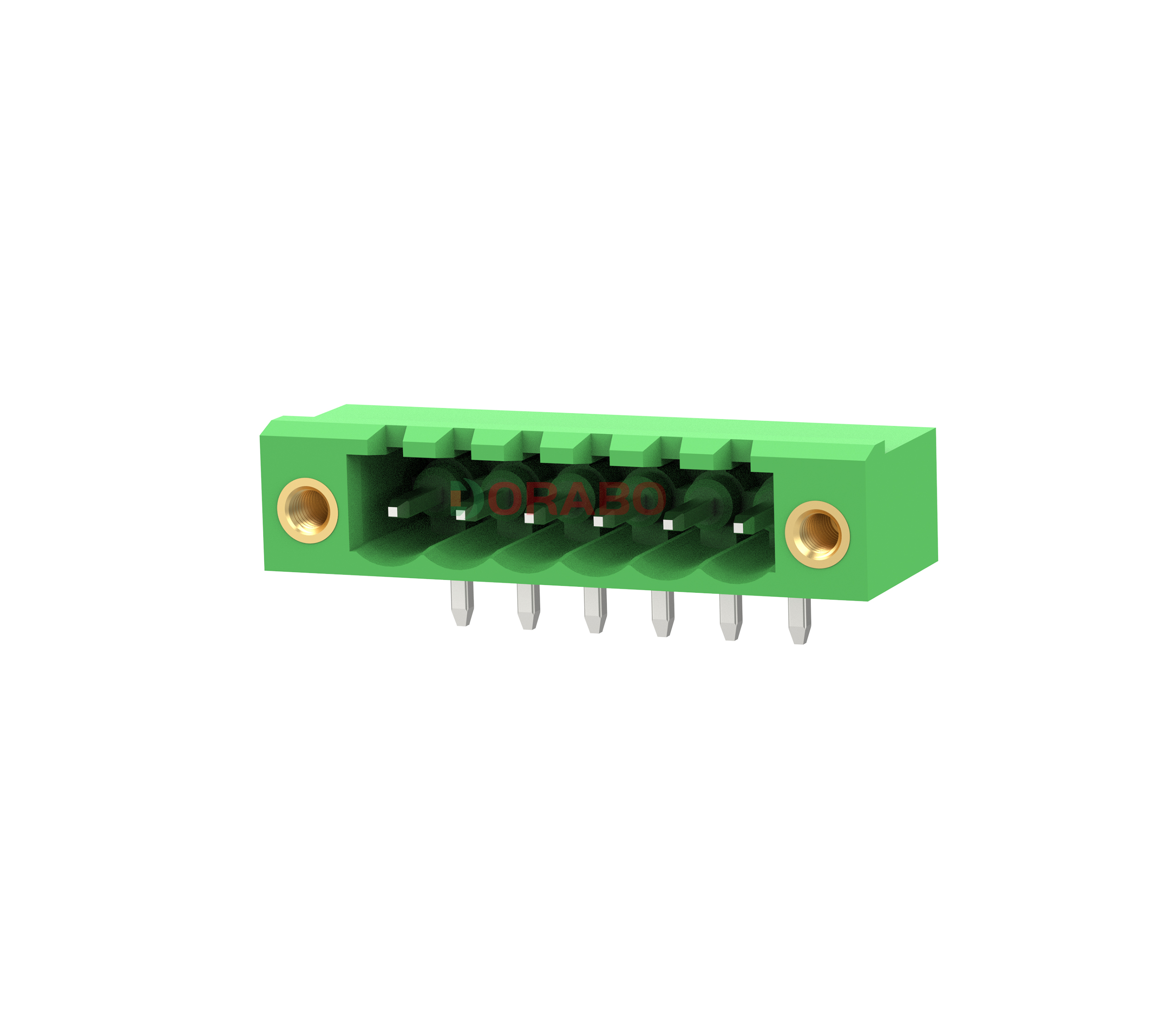

PCB socket DB1ERM-3.81

Printed Circuit Board Housing, Rated Cross-Section: 1.5 mm², Color: Green, Nominal Operating Current: 12 A, Rated Voltage (III/2): 160 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Positions: 2-24, Number of Rows: 1, Number of Poles: 2-24, Connection Quantity: 2-24, Product Series: DB1ERM, Pin Pitch: 3.81 mm, Mounting: Wave Soldering, Pin Arrangement: In-Line, Solder Pin [P]: 3.4 mm, Number of Solder Pins per Potential: 1, Plug-in System: DB1ERM, Pin Connector Style Alignment: Standard, Interlocking: Without, Mounting: Without, Packaging Type: Carton Packaging

Advantages

☑Universal mounting for worldwide use
☑Ensures High flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
0
Views: 543
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    12 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    2500V/Min



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 250
    Rated Current [A]
    10 10 12
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.81/2~24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature

    Pin dimensions [mm]

    PCB Hole Diameter [mm]
    Ø1.7

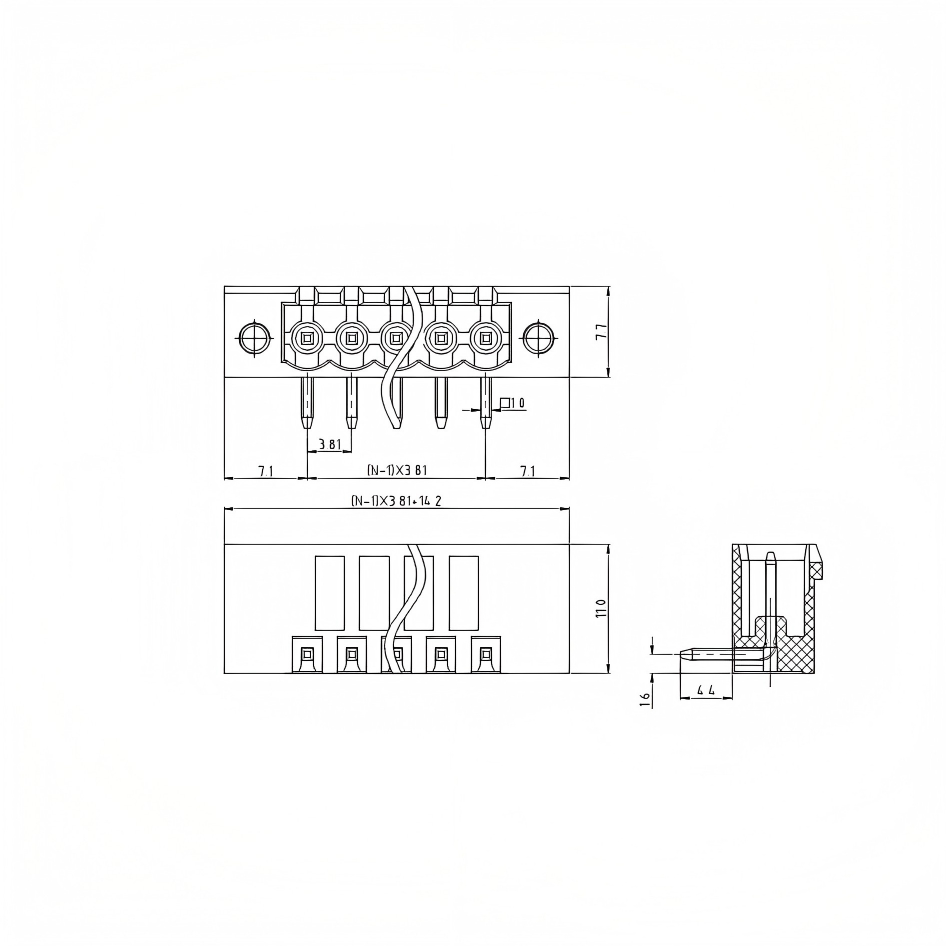

    Size Chart

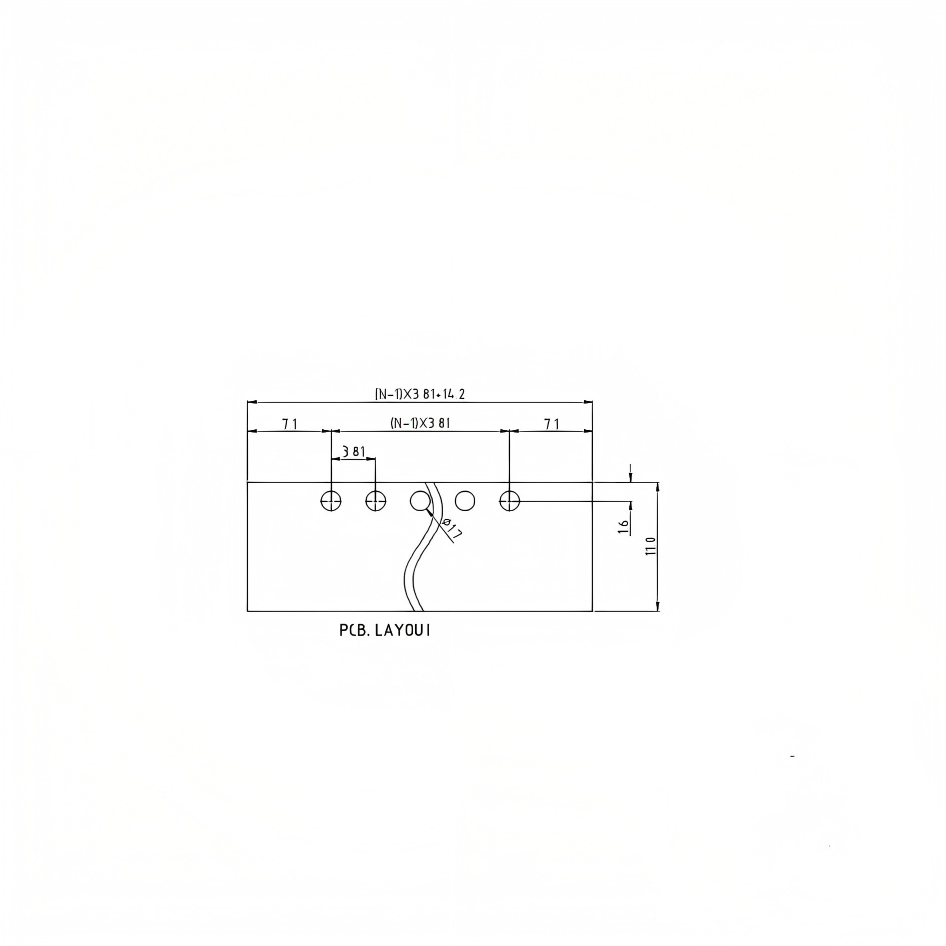

    PCB opening diagram
