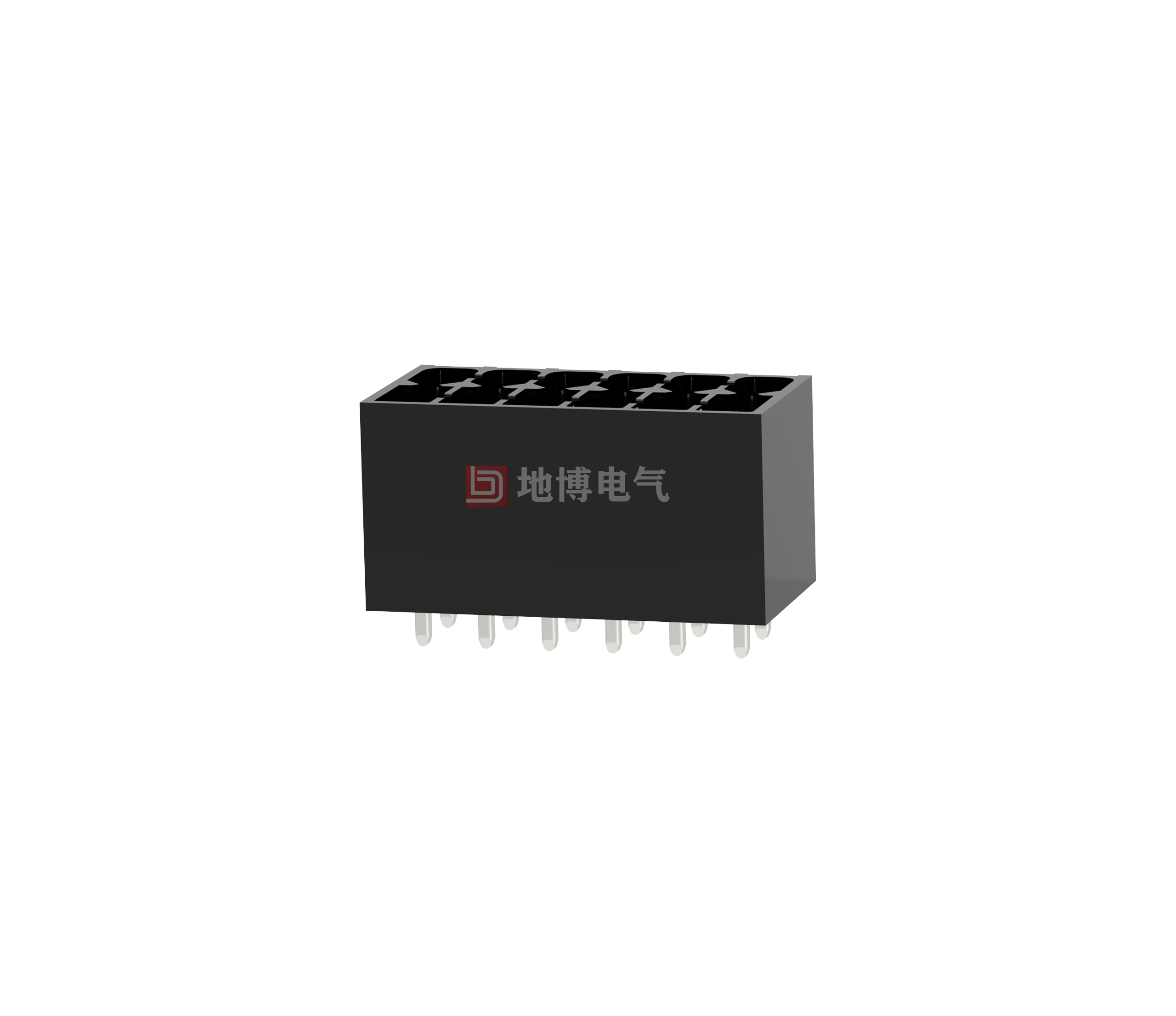

PCB socket DB2EVHC-3.5

PCB Housing, Cross-sectional rating: 1.5 mm2, Color: Green, Current rating: 8 A, Voltage rating (III/2): 160 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 4-48, Connections: 4-48, Series: DB2EVHC, Pin pitch: 3.5 mm : 3.5 mm, Mounting: wave solder, Pin alignment: straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2EVHC, Pin connector style alignment: standard, Interlock: without, Mounting: without, Package type: carton

Advantages

☑Multi-layer wire connections for high contact density

☑Small part size for applications where space is tight
☑Universal mounting for global use
0
Views: 193
Contact usDownload PDF View 3D Download CAD

  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    150 - 150
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.3KV

    Technical Data

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 250
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /

    Materials

    Insulation Material
    LCP
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    3.5/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4

    Size Chart

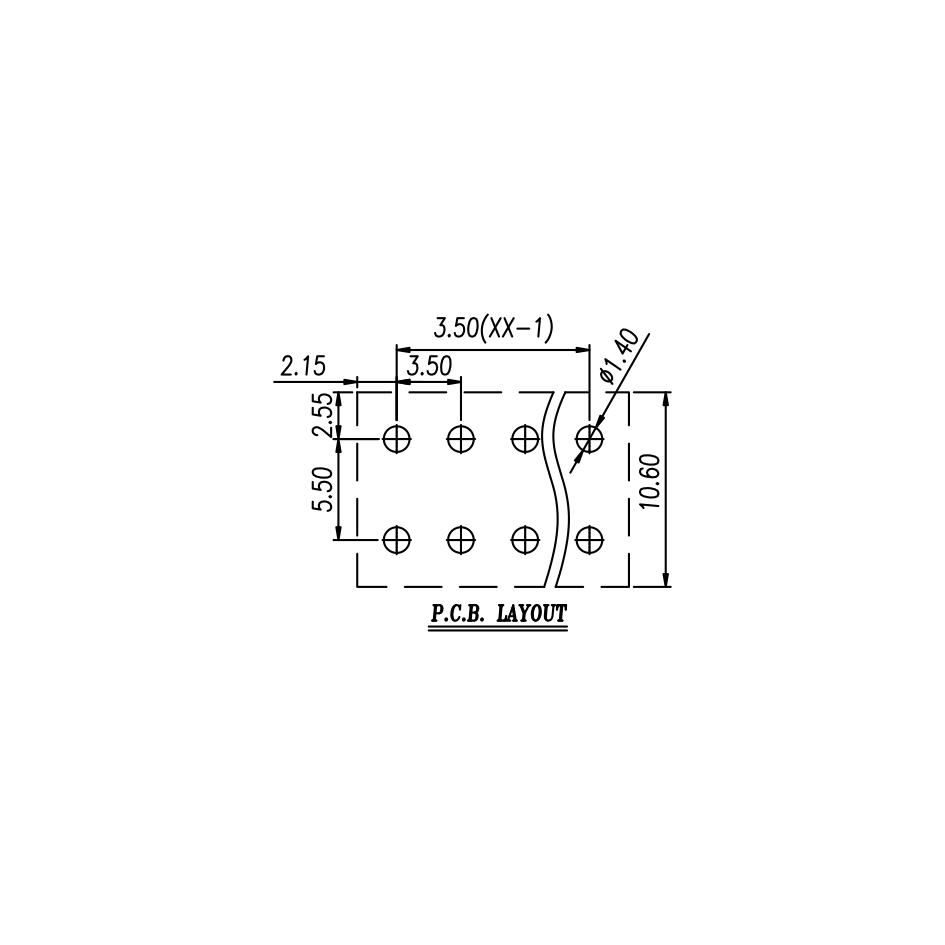

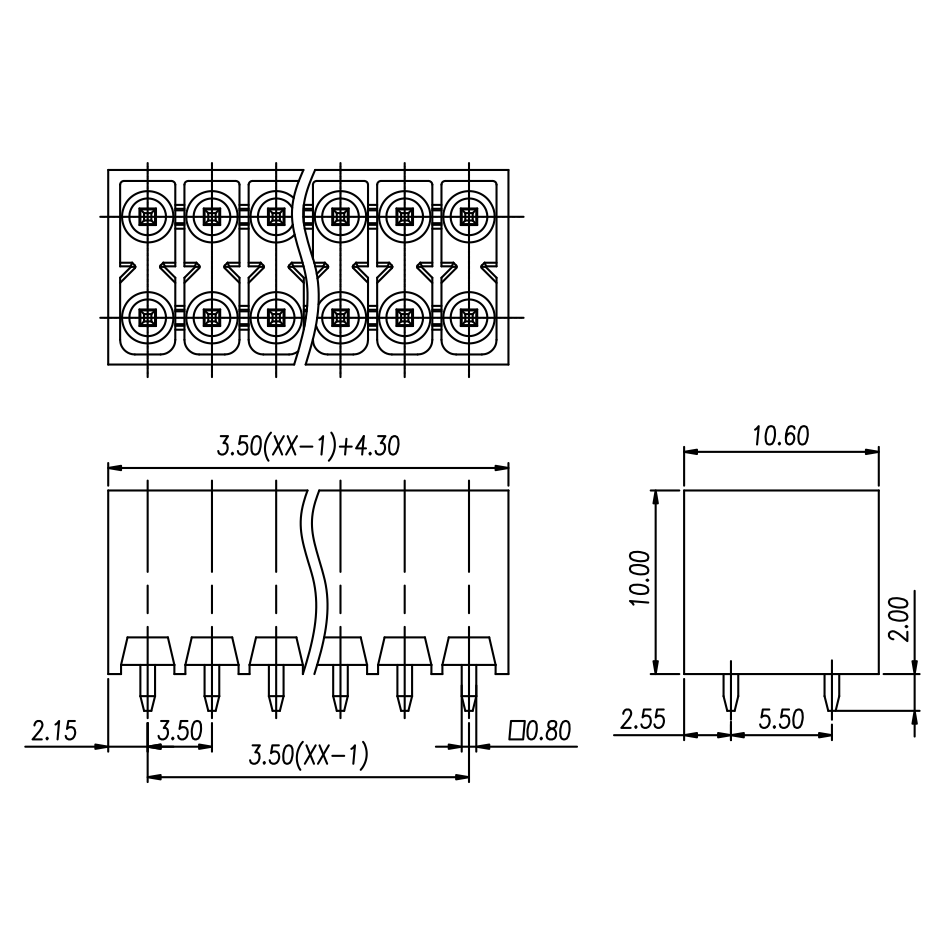

    PCB opening diagram
