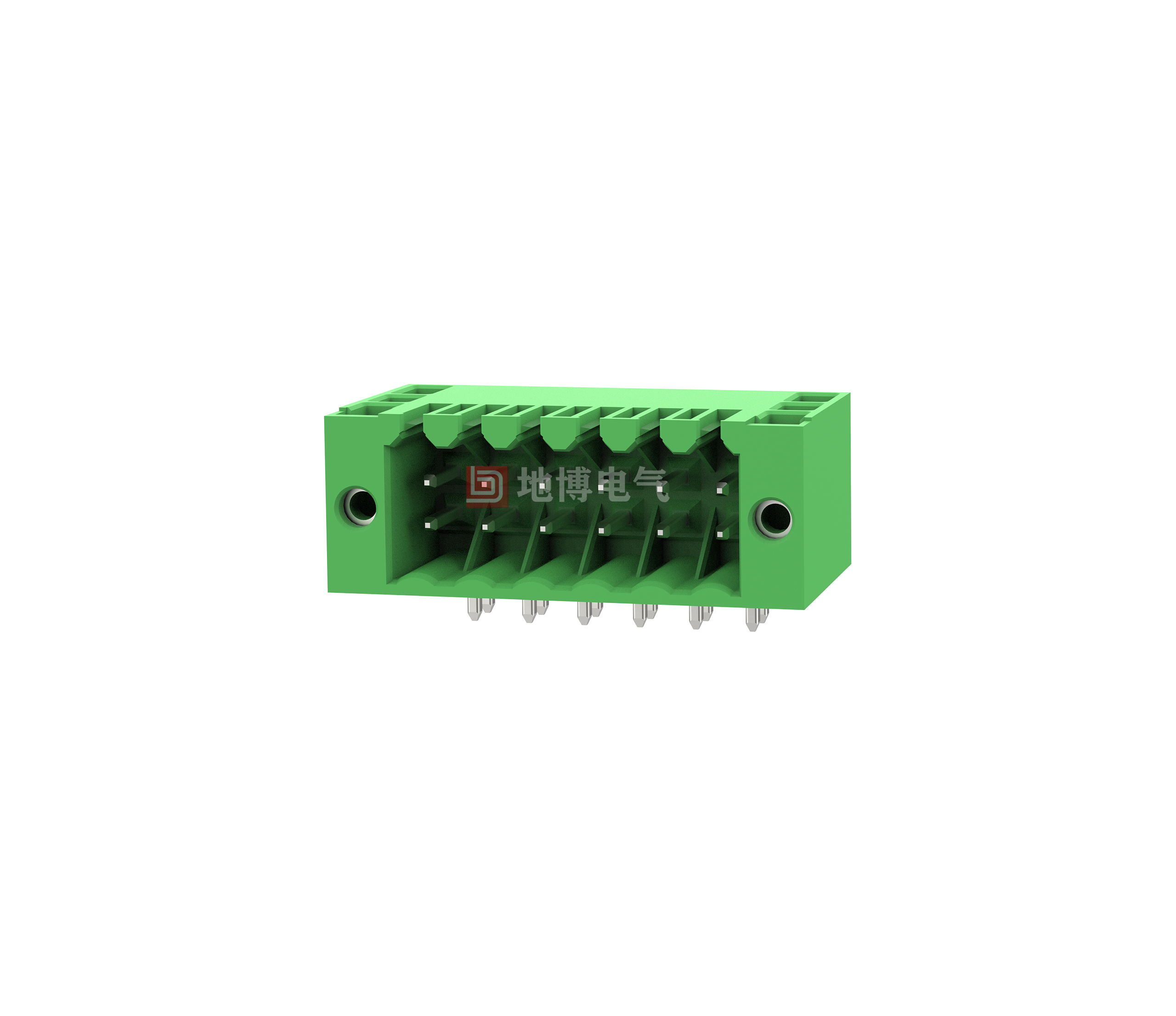

PCB verso DB2ERHDM-3.5

Printed Circuit Board Housing, Nominal Cross Section: 1.5 mm2, Colour: Green, Rated Current: 8 A, Rated Voltage (III/2): 160 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Positions: 4-48, Number of Rows: 2, Number of Positions: 4-48, Connection Volume: 4-48, Product Family: DB2ERHDM, Pin Pitch: 3.5 mm, Mounting: Wave Soldering Pin alignment: Straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Insertion system: COMBICON DB2ERHDM, Pin connector style alignment: Standard, Interlock: Snap lock, Mounting: Lock & release threaded flange, Packaging type: Carton

Advantages

☑ Designed for integration into the SMT soldering process
☑Bolt flange for high mechanical stability
☑Contrasting locking & release levers for easy automatic locking and intuitive release operations
☑Multi-layer wire connections for high contact density
☑Small component size for applications where space is tight

0
Views: 2,642
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - 150
    Rated Current [A]
    7 - 7
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    80 125 250
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material information



    Insulation Material
    LCP
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4

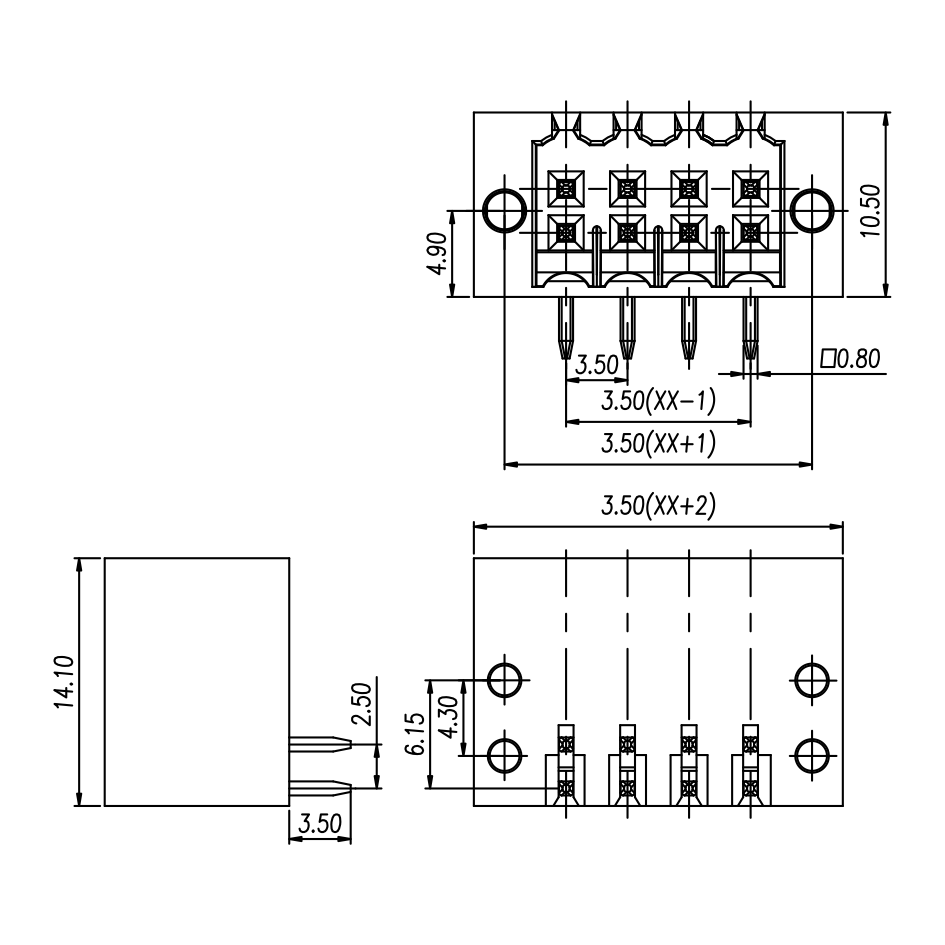

    Dimensional drawings

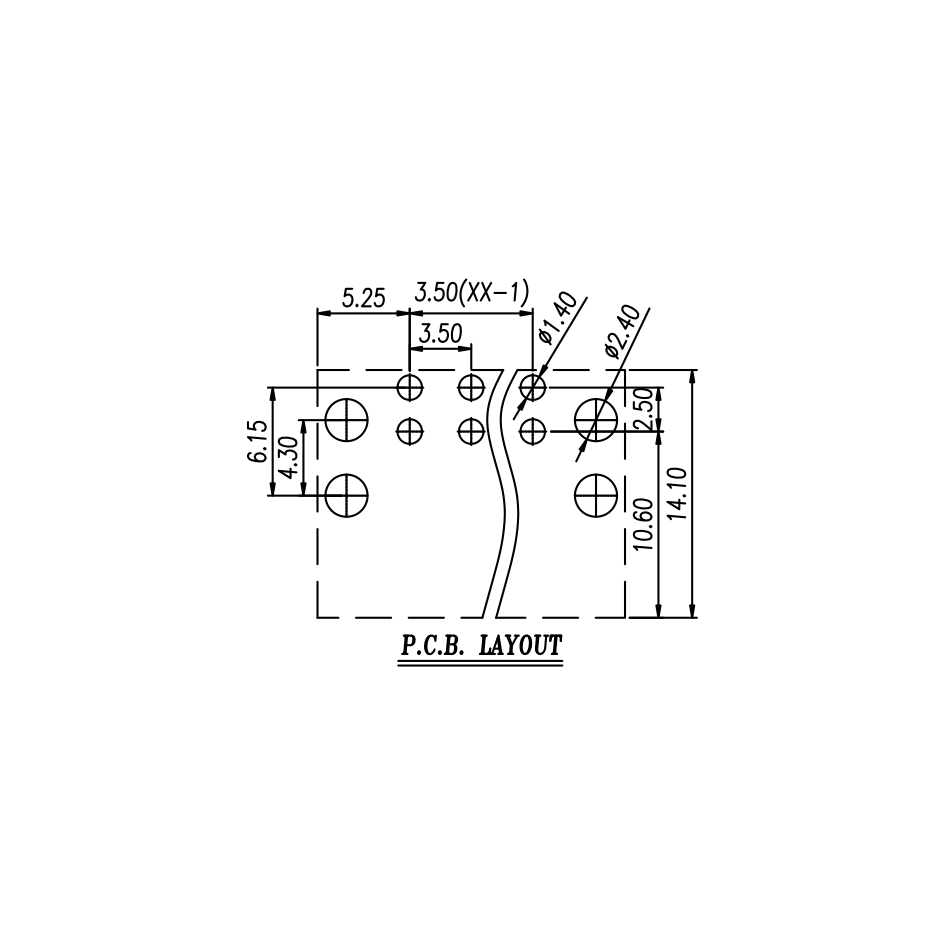

    PCB cut-out diagram
