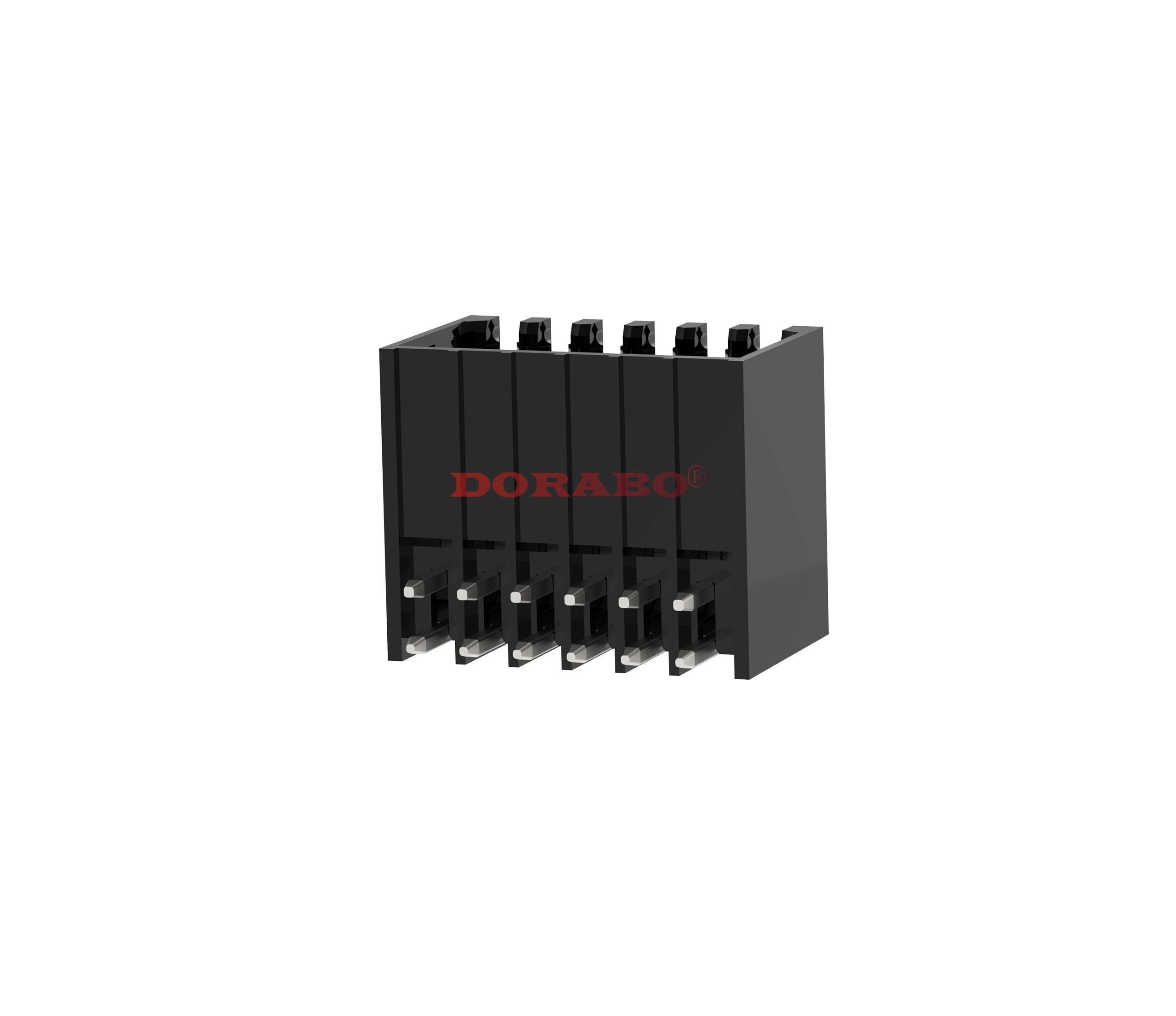

PCB socket DB2EERC-2.54

Printed Circuit Board Housing, Rated cross section: 0.5 mm2, Colour: Black, Rated current: 6 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact type: Pin header, Number of potentials: 4-48, Number of rows: 2, Number of positions: 4-48, Connections: 4-48, Article number: DB2EERC, Pin spacing: 2.54 mm, Mounting: THR Soldering, Pin arrangement: Straight, Soldering pins [P]: 3.5 mm, Number of soldering pins per potential: 1, Insertion system: COMBICON DB2EERC, Pin connector style alignment: Standard, Interlocking: Without, Mounting: Without, Packaging: Carton

Advantage

☑Multi-layer wire connection for high contact density
☑Small part size, suitable for applications where space is limited
☑Universal mounting, can be used worldwide
0
Views: 338
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - 150
    Rated Current [A]
    5 - 5
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    80 160 320
    Rated Current [A]
    6 6 6
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    LCP
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    2.54/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4

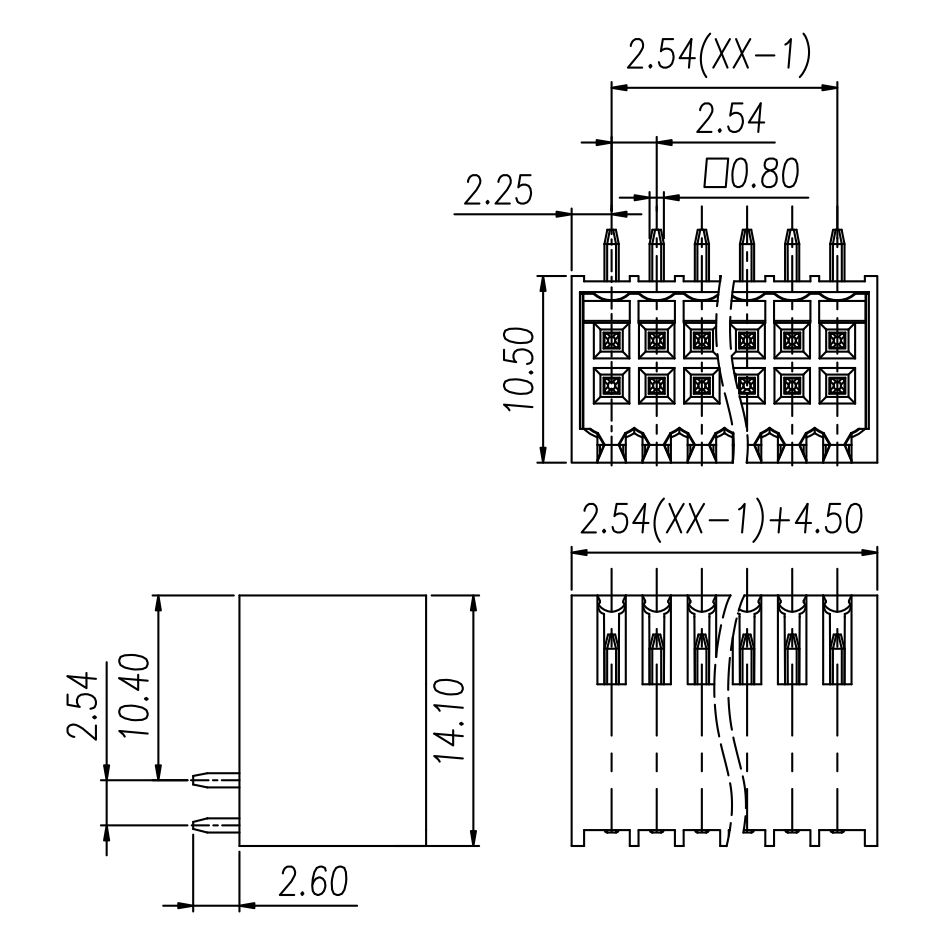

    Dimension Drawing

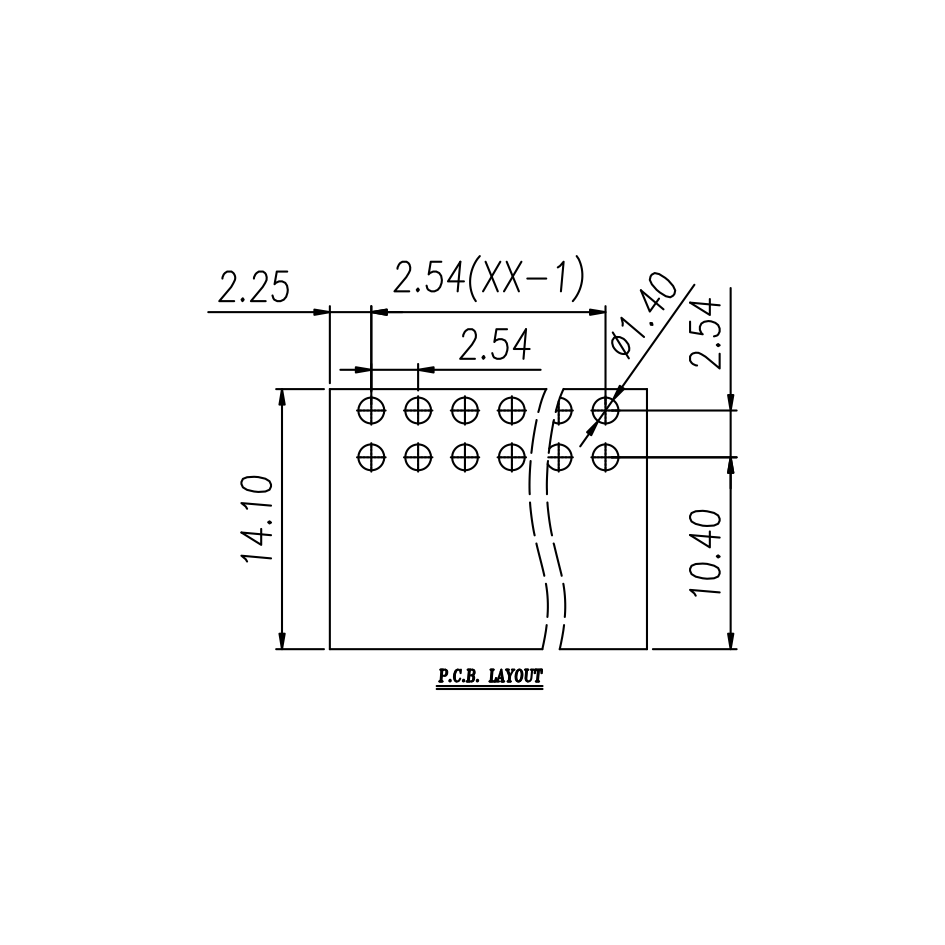

    PCB Opening Diagram
