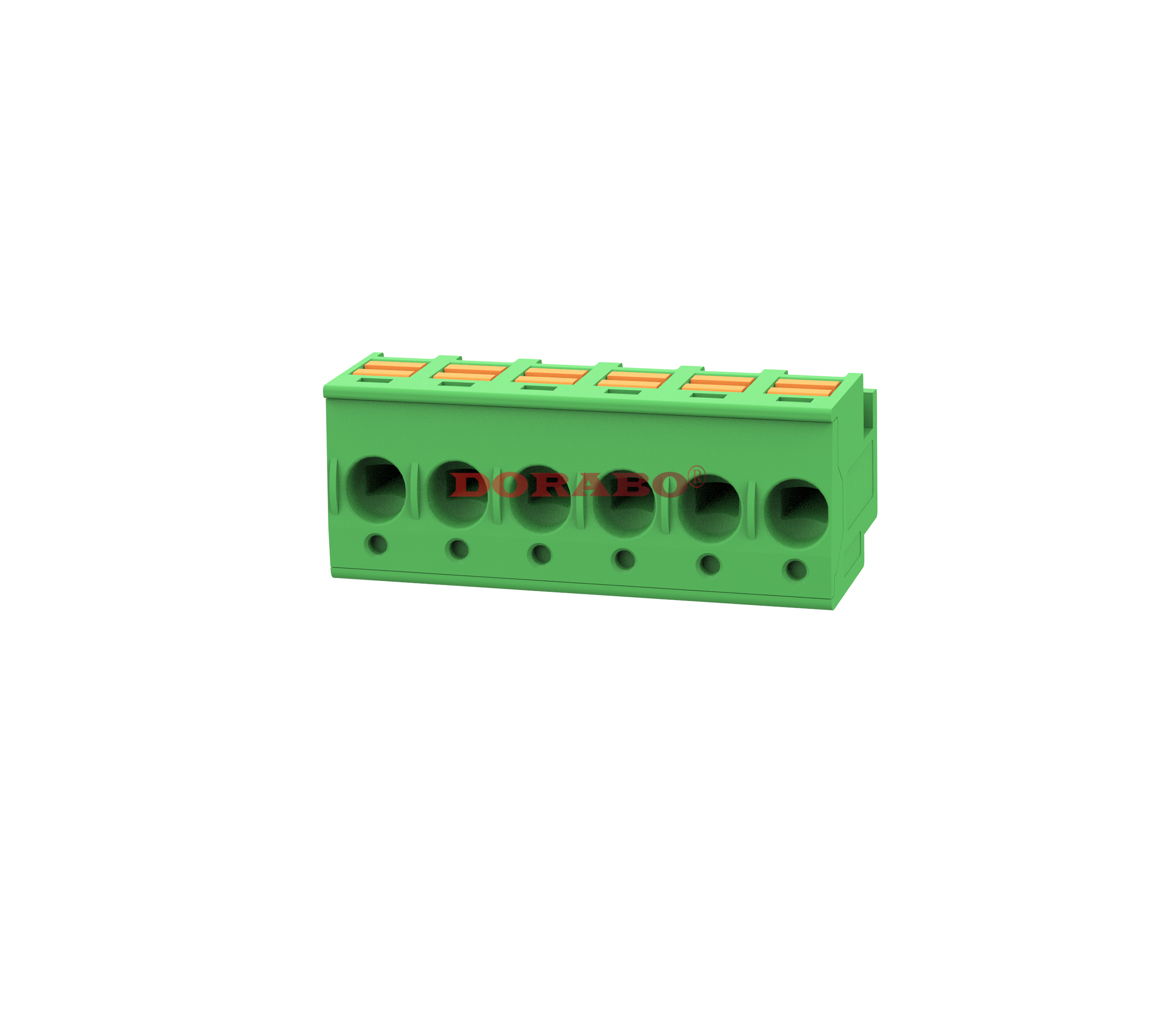

Printed Circuit Board Connector DB233B-5.08

Plug-in connector, Rated cross-section: 1.5 mm2, Colour: green, Rated current: 10 A, Rated voltage (III/2): 400 V, Contact surface: tin, Contact type: eyelet, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Number of connections: 2-24, Series: DB233B, Pin spacing: 5 mm, Wiring plan: straight spring-loaded connection, Direction of wire/PCB connection: 0°, Packaging type: carton packing Wiring: in-line spring-loaded, Connection direction: 0°, Insertion system: COMBICON DB233B, Interlocking: without, Mounting: without, Packaging: carton packaging

Advantages

☑Time-saving plug-in connection, no tools required
☑Set contact force ensures long term stability of the contacts
☑Colour coded joystick for intuitive use
☑Quick and easy testing with built-in test elements
☑Extremely small component size for maximum wire clamping space
0
Views: 256
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 / 300
    Rated Current [A]
    10 / 10
    Wire Range [AWG]
    26-14
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4.0 4.0 4.0
    Conductor cross section [mm²]
    0.2-2.5

    makings

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.08/2-24
    Stripping Length [mm]
    8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
     Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

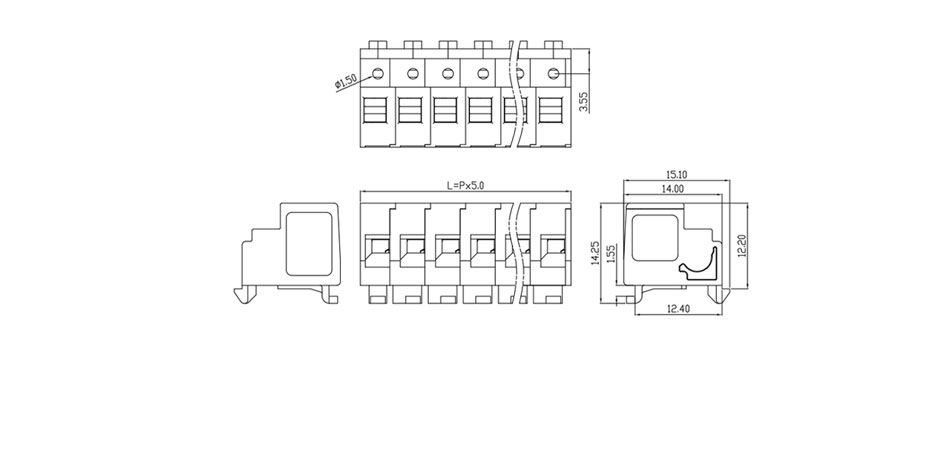

    dimension drawing
