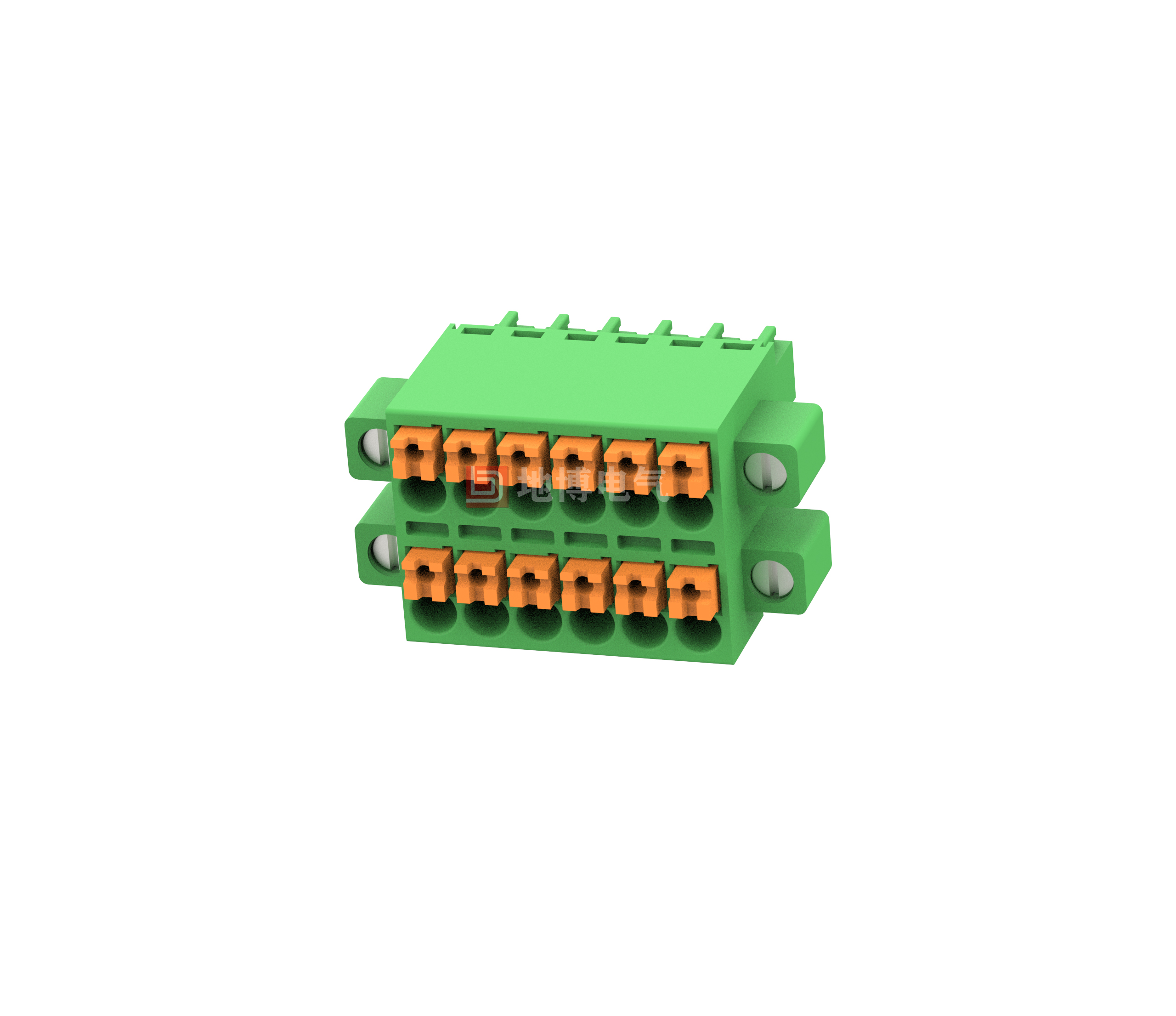

Printed Circuit Board Connectors DB2EKNNM-3.5

Plug-in connector, Nominal cross-section: 1.5 mm2, Colour: green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 4-48, Connection capacity: 4-48, Series: DB2EKNNM, Pin pitch: 3.5 mm, Wiring method: straight spring-loaded connection, wire/PCB connection direction: 0°, insertion system: COMBICON DB2EKNNM, interlocking: screw fastening, mounting: threaded flange, packaging type: carton

Advantage

☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Wires can be connected and disconnected from a single direction so that they can be integrated into the front of the unit
☑Bolt flanges guarantee a high degree of mechanical stability

0
Views: 184
Contact usDownload PDF View 3D Download CAD
  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    24~16
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    3.5,3.81/2*2~24
    Stripping Length [mm]
    9~10
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

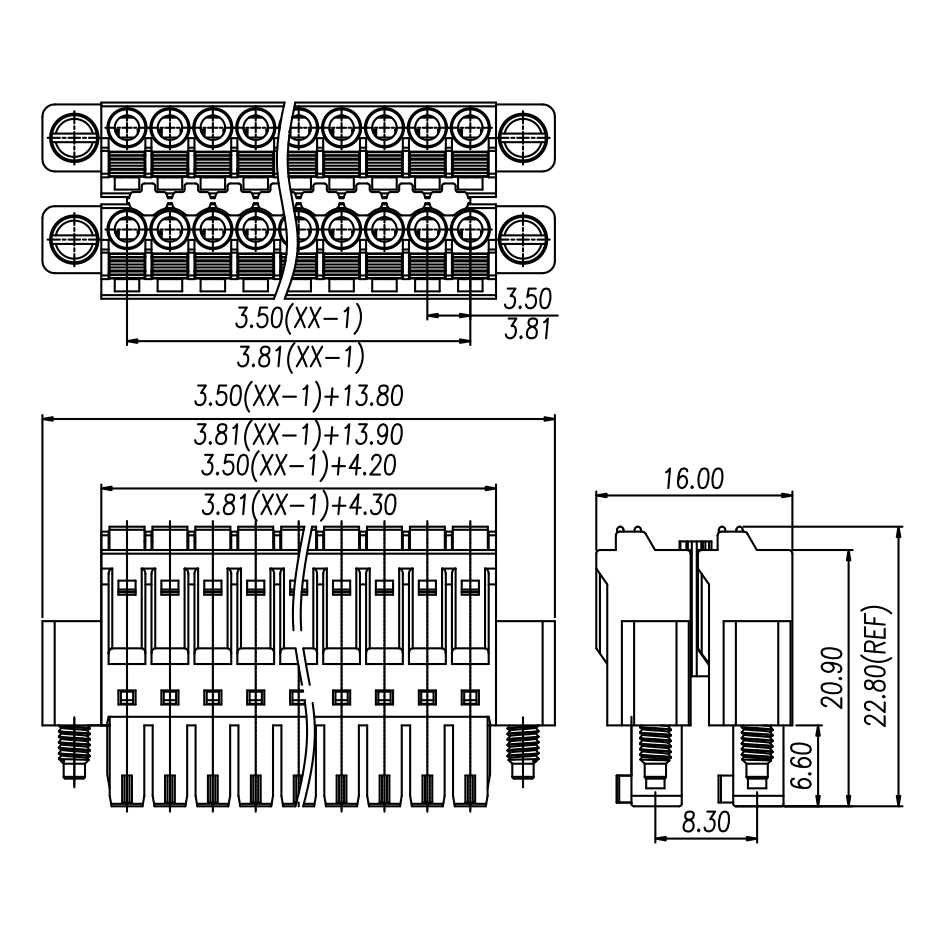

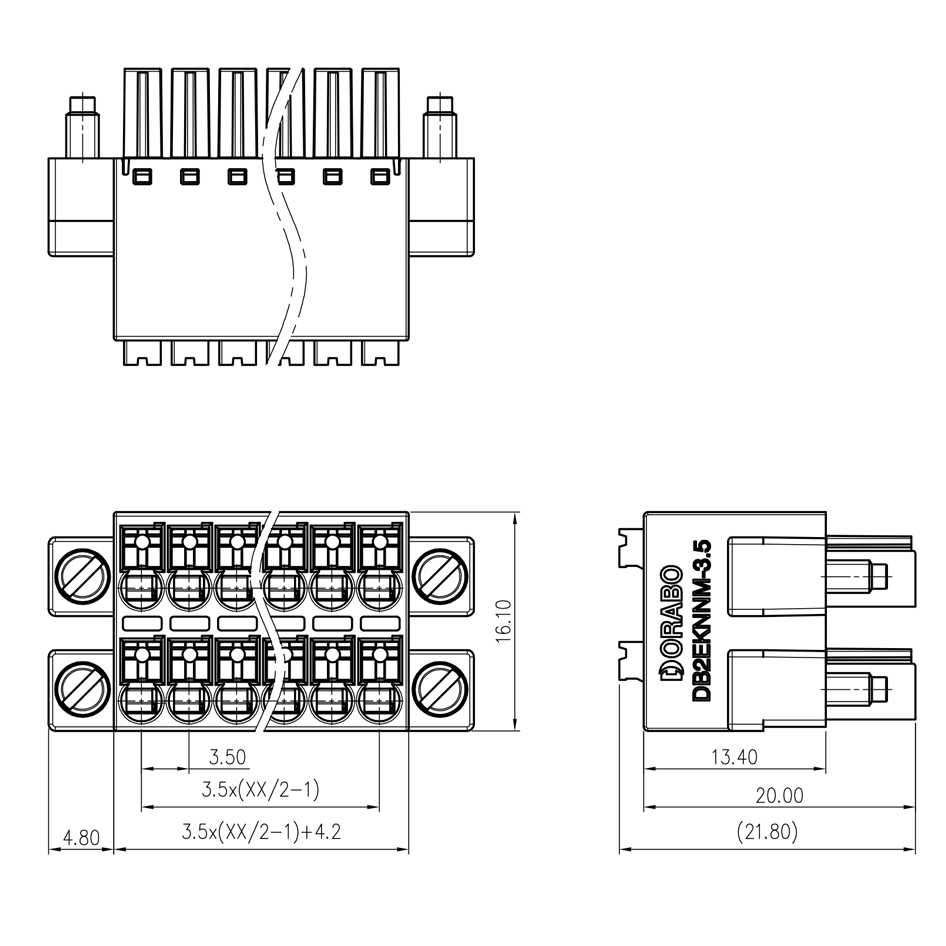

    Size Chart
