DB2EK-2.54 Phoenix terminal head

0
Views: 198
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    150V - -
     Rated current
    5A - -
    Wire range
    26-20AWG
    Withstand voltage
    1.3KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    100V 160V 320V
    Rated current
    5A 5A 5A
    Impulse withstand voltage
    1.5KV 2.5KV 2.5KV
     Conductor cross section
    0.2-0.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    2.54mm/2-24P
    Stripping length
    5-6mm
    Screw/Torque(Max)
    M1.6/0.1N.m
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    /
     Pin dimensions [mm]
    /

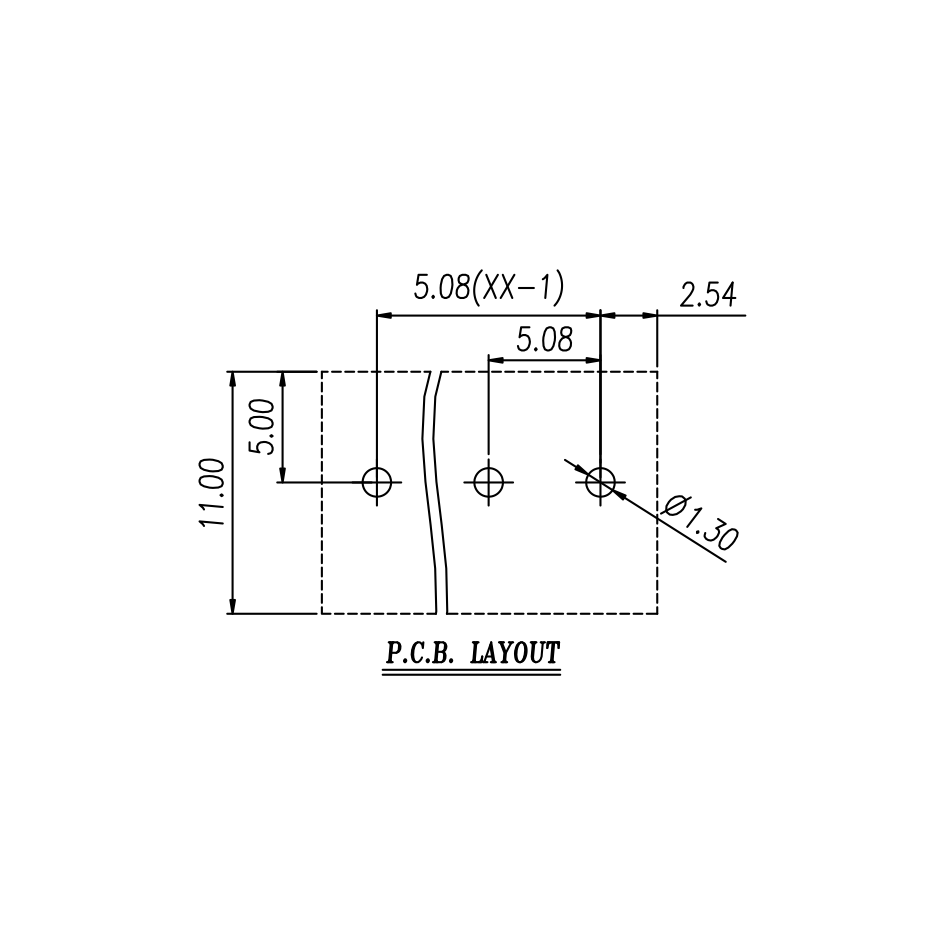

     PCB hole diameter [mm]
    /

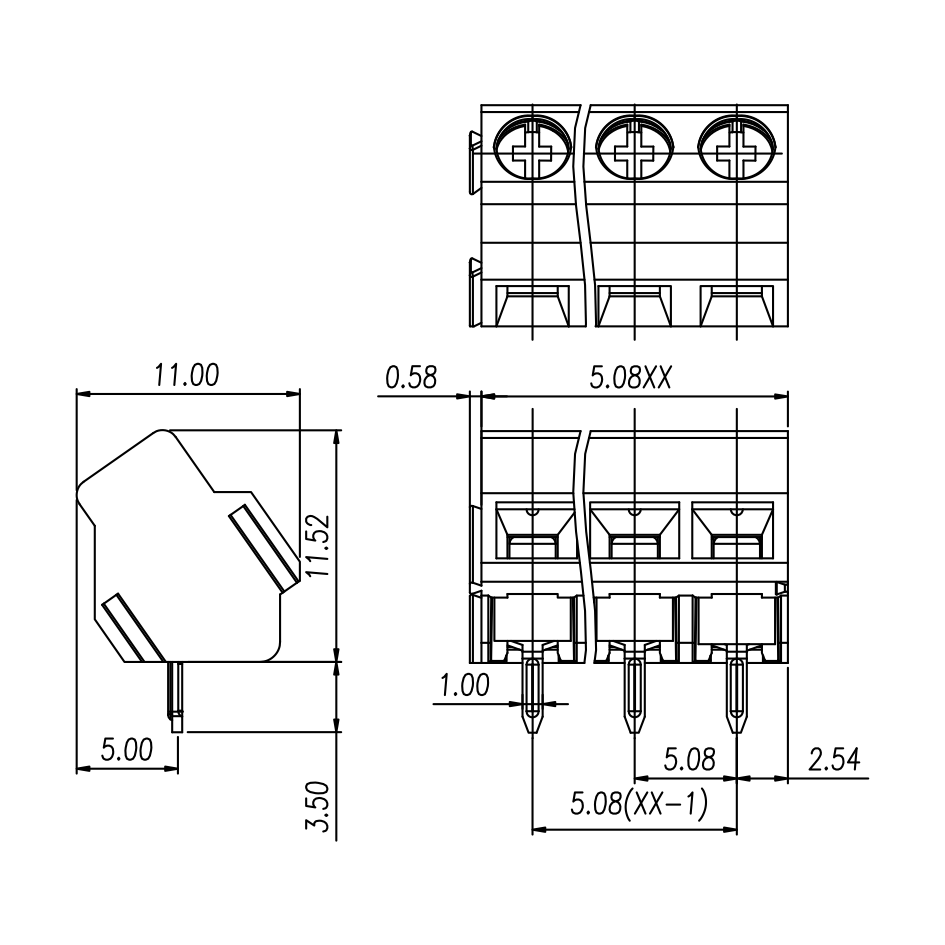

    Dimensional drawing
