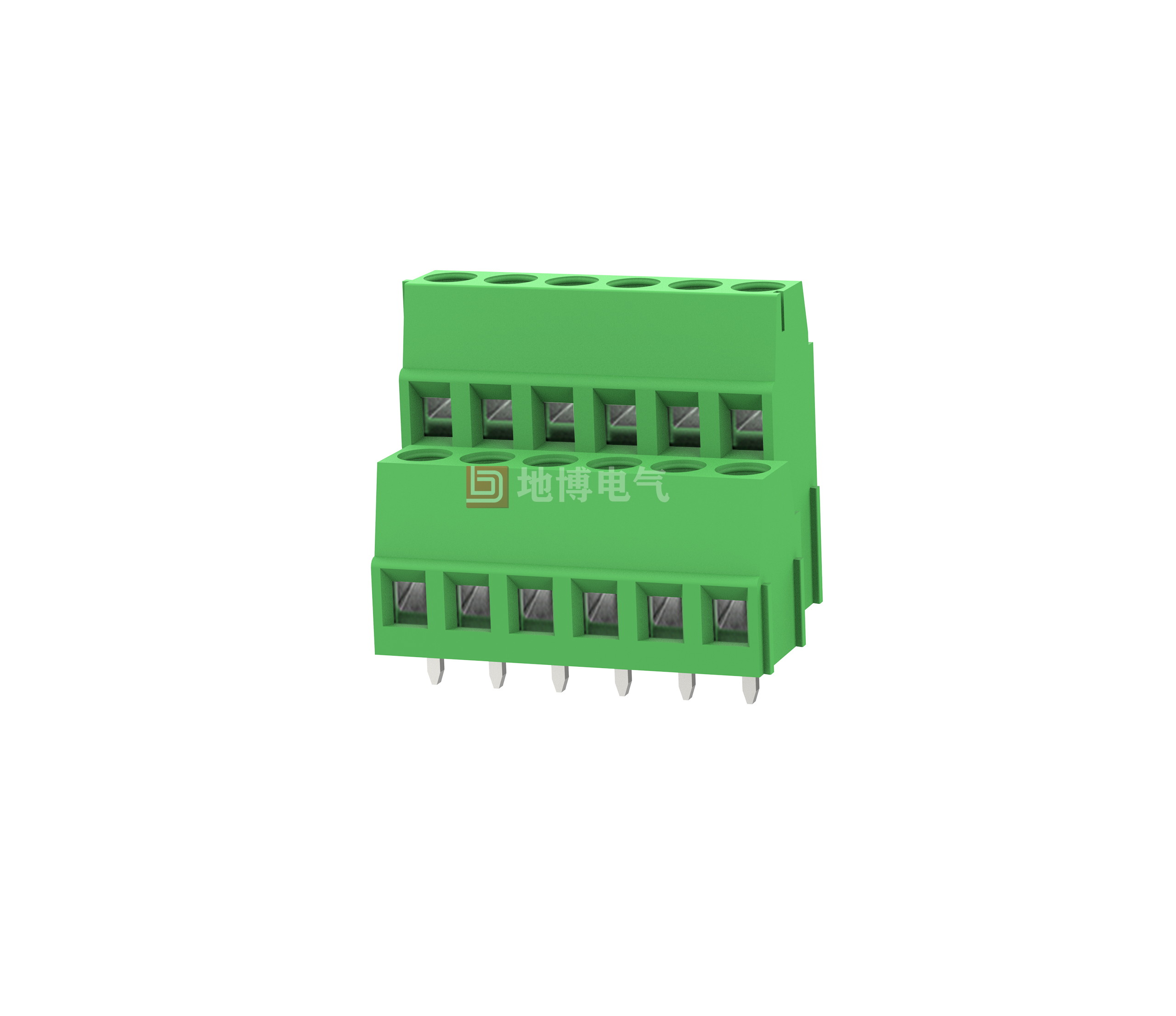

DB2EKA-5.08 Straight plug

0
Views: 54
Contact usDownload PDF
  •

    Technical data-UL/CUL

     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15A - 10A
    Wire range
    28~12AWG
    Withstand voltage
    1.6KV



    Technical data-IEC

    Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    250V 320V 630V
    Rated current
    12A 12A 12A
     Impulse withstand voltage
    4KV 4KV 4KV
    Conductor cross section
    0.2~2.5mm²



     Material data

    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics  Tin-plated



    Other data

     Pitch/Poles
    5.0mm,5.08mm/2~24P
     Stripping length
    7~8mm
     Screw/Torque(Max)
    M3/0.5N.m
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    /
     Pin dimensions [mm]
    /

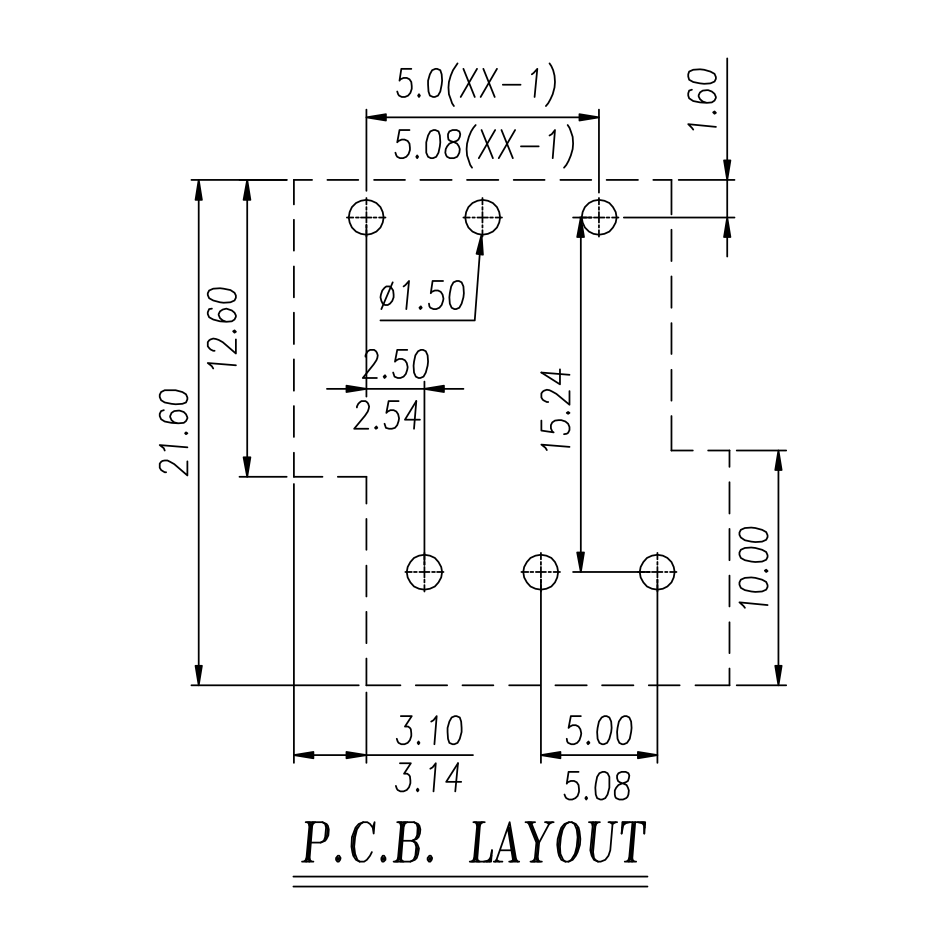

     PCB hole diameter [mm]
    /

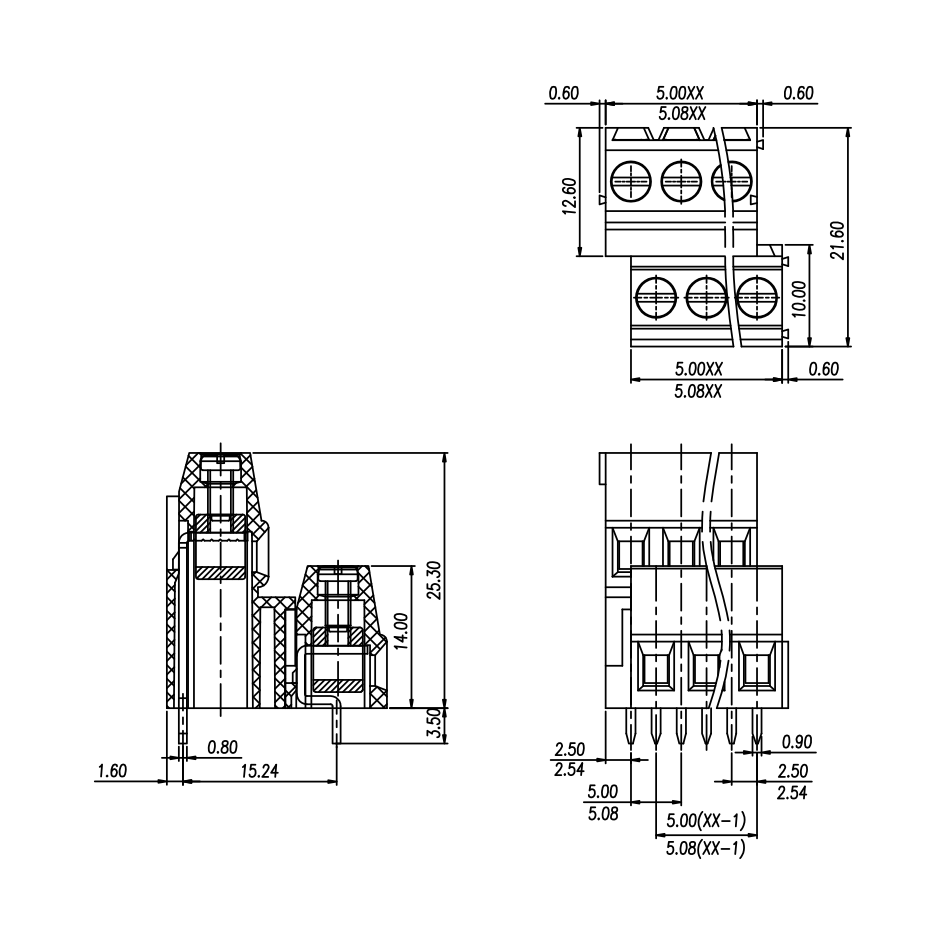

    Dimensional drawing
