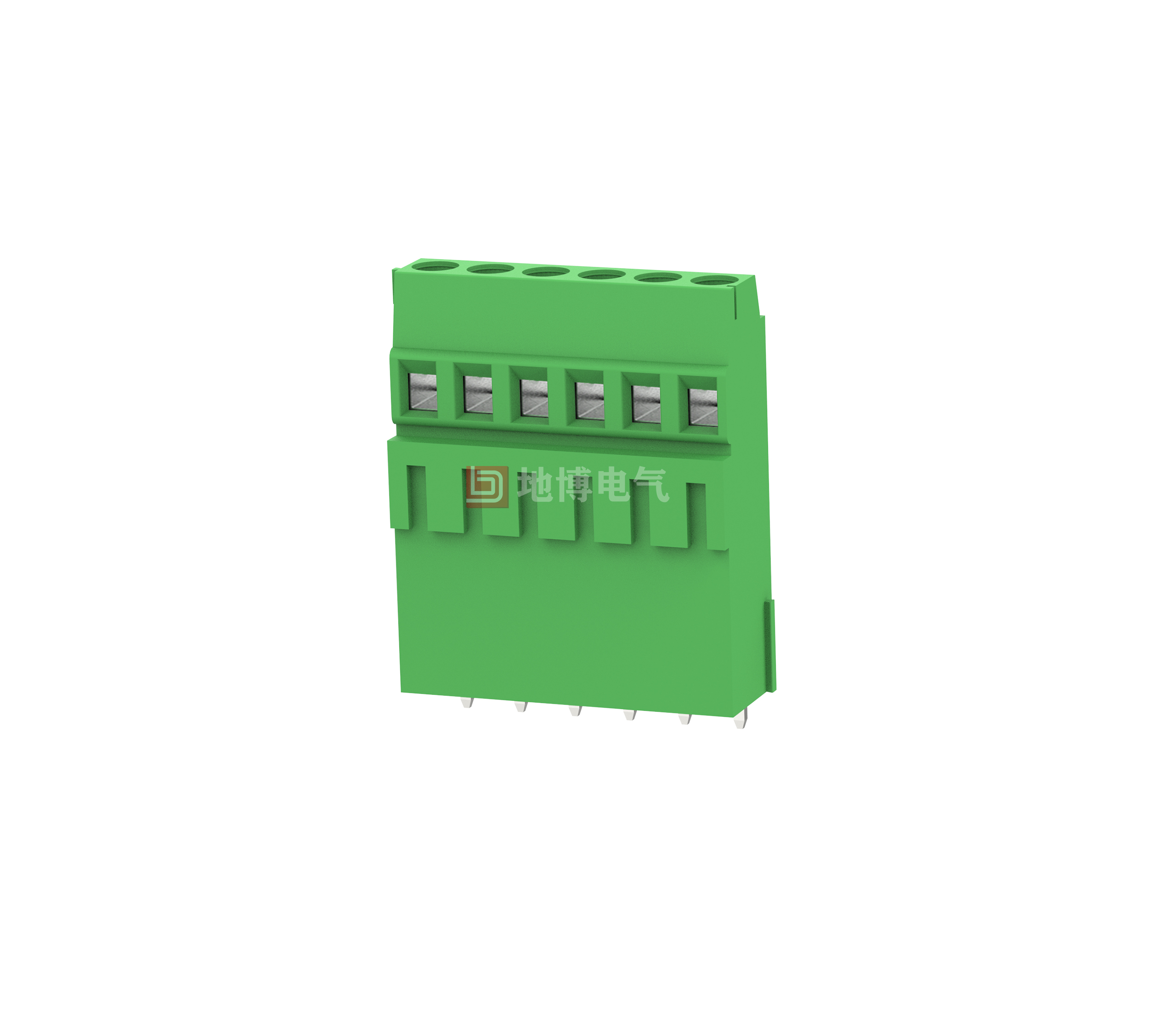

DB2EKB-7.62 Plug-in terminal

0
Views: 48
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15A - 10A
     Wire range
    28-12AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



    Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    500V 630V 1000V
    Rated current
    12A 12A 12A
     Impulse withstand voltage
    6KV 6KV 6KV
     Conductor cross section
    0.2-2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    7.5mm,7.62mm/2-24P
    Stripping length
    7-8mm
     Screw/Torque(Max)
    M3/0.5N.m
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
    Soldering temperature
    /
     Pin dimensions [mm]
    /

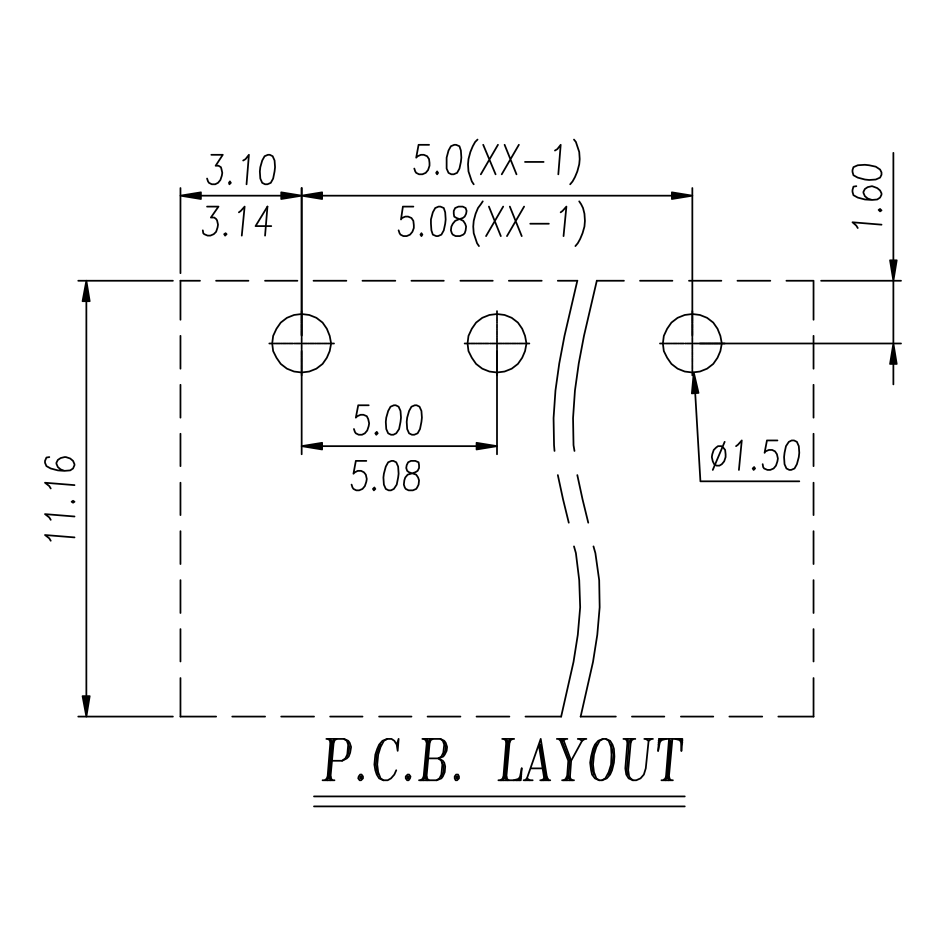

     PCB Hole Diameter [mm]
    /

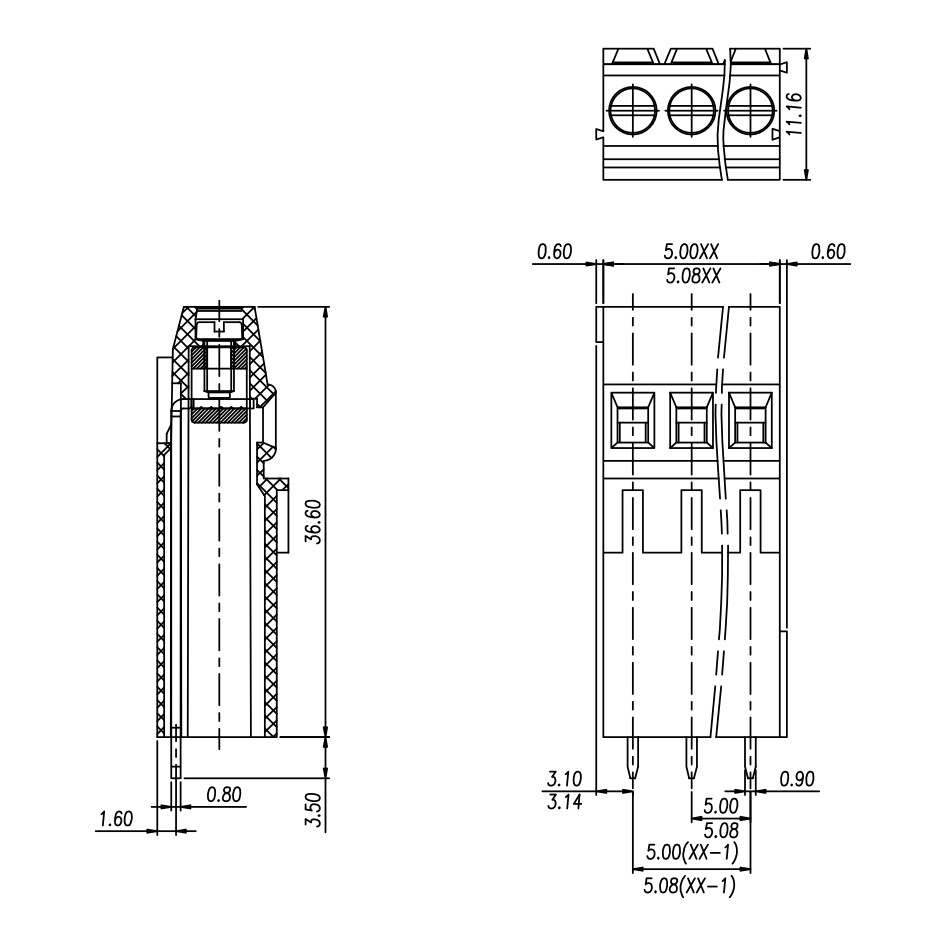

    Dimensional drawing
