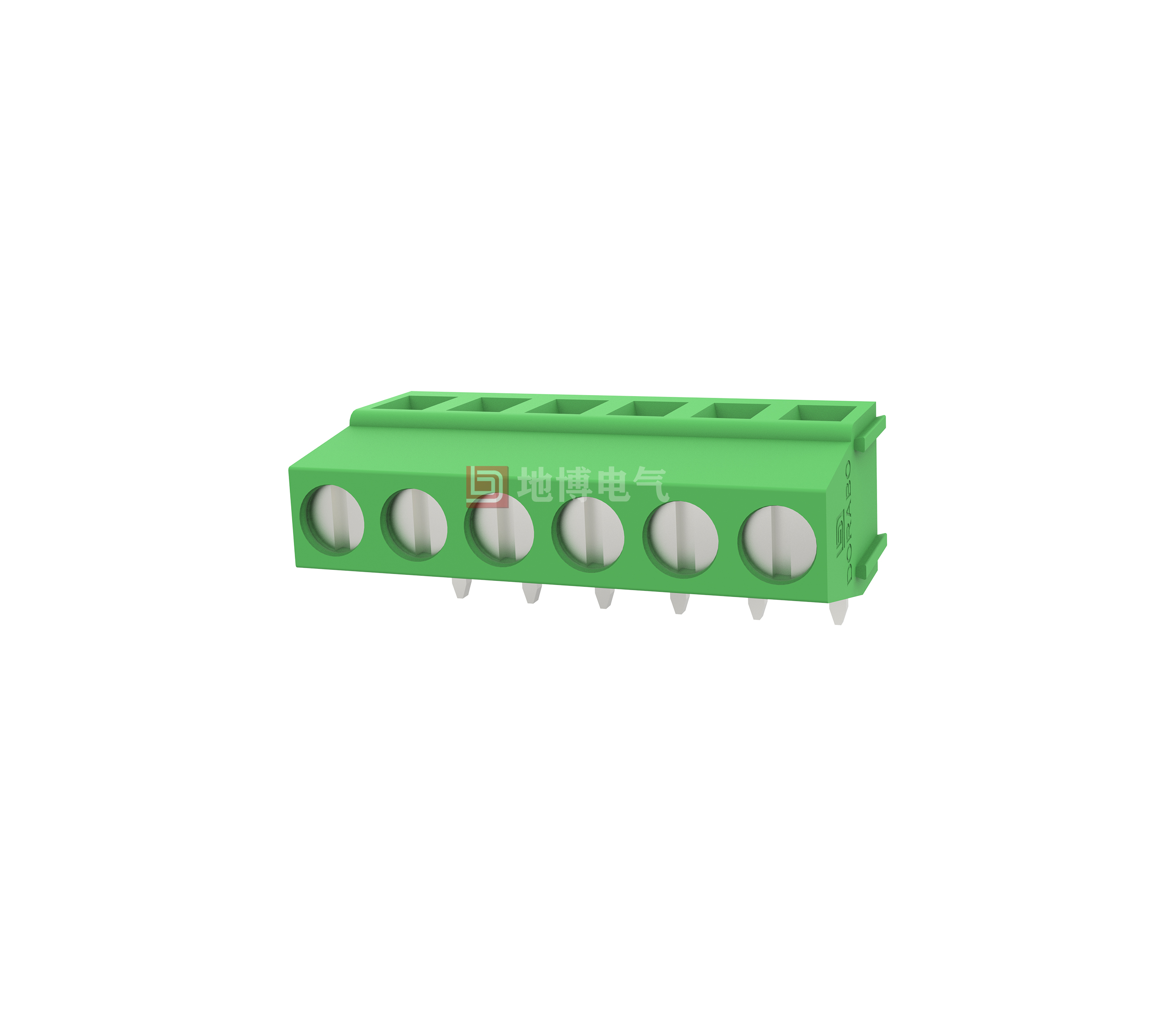

PCB terminals DB128R-5.08

Fixed connectors, Rated current: 17.5 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of bits per row: 2-24, Series: DB128R, Pin pitch: 5.08 mm, Wiring method: Screw connection with crimp, Screw head size: L slotted, Mounting: Wave soldering, Wires/conductors PCB connection direction: 90°, colour: green, pin arrangement: straight, pin [P]: 3.5 mm, number of pins per potential: 1, packaging type: carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Different digits can be combined by means of side latches
0
Views: 472
Contact usDownload PDF View 3D Download CAD

  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    16 - 10
    Wire Range [AWG]
    22~12
    Dielectric Voltage-Withstand
    1.6KV

    Technical data

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    20 20 20
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.0，5.08/2~24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*0.9
    PCB Hole Diameter [mm]
    Ø1.5

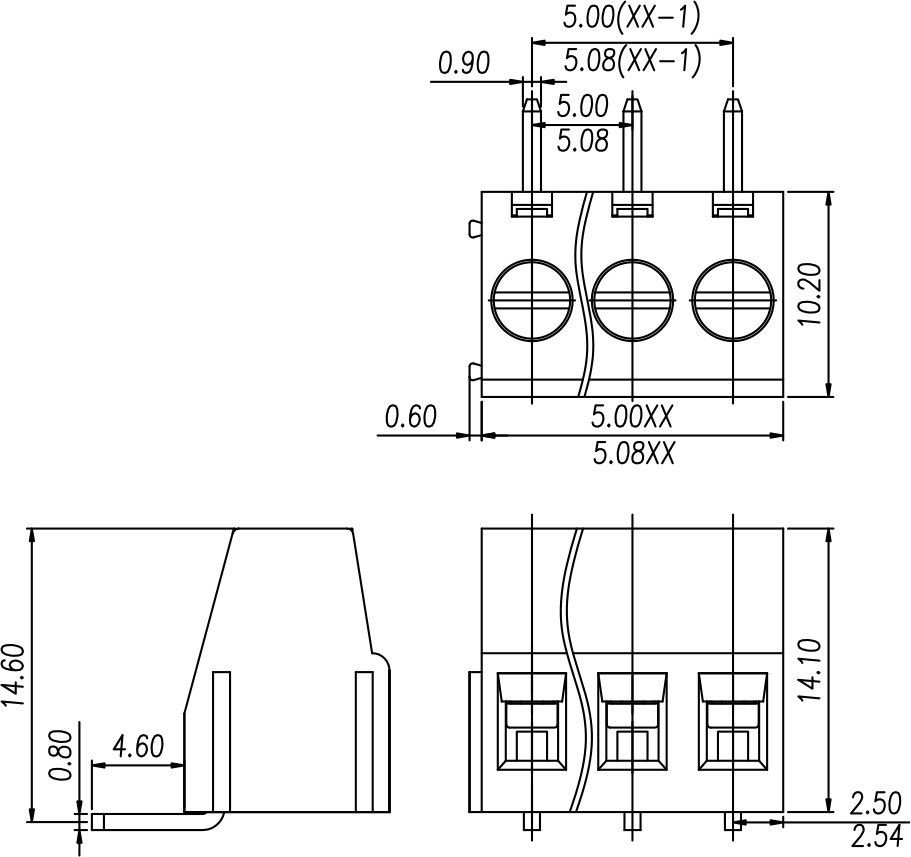

    Dimensional drawings

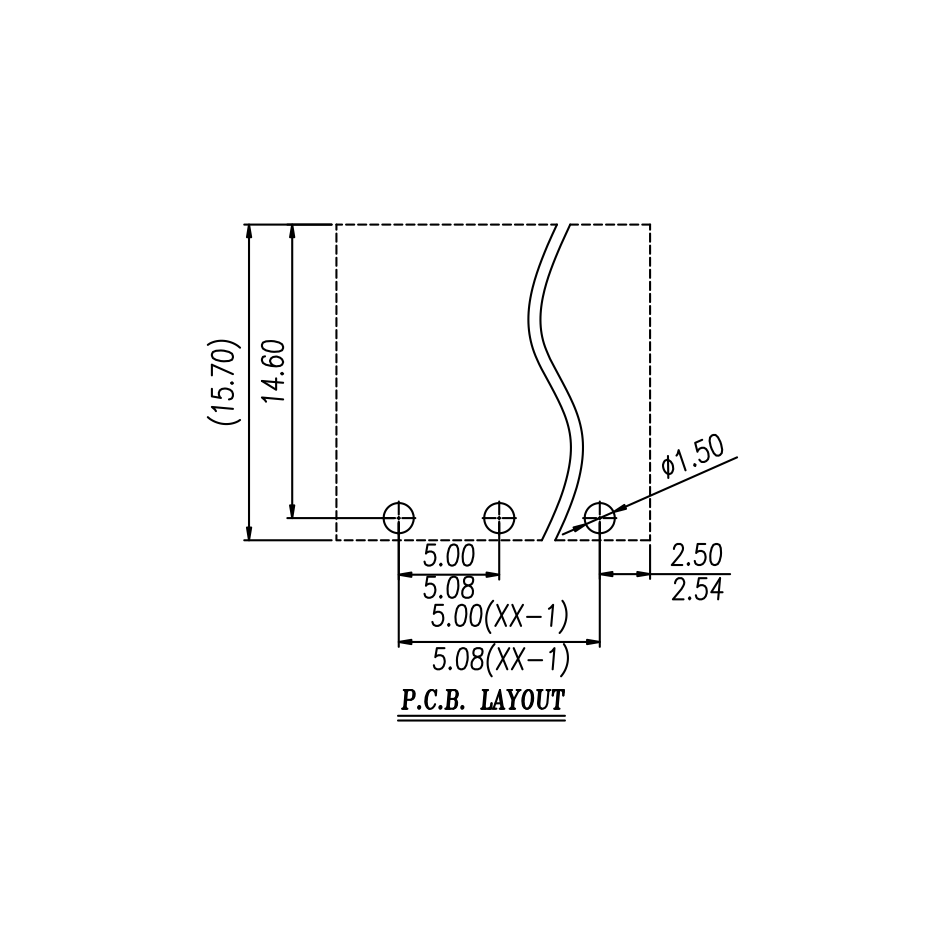

    PCB cut-out diagram
