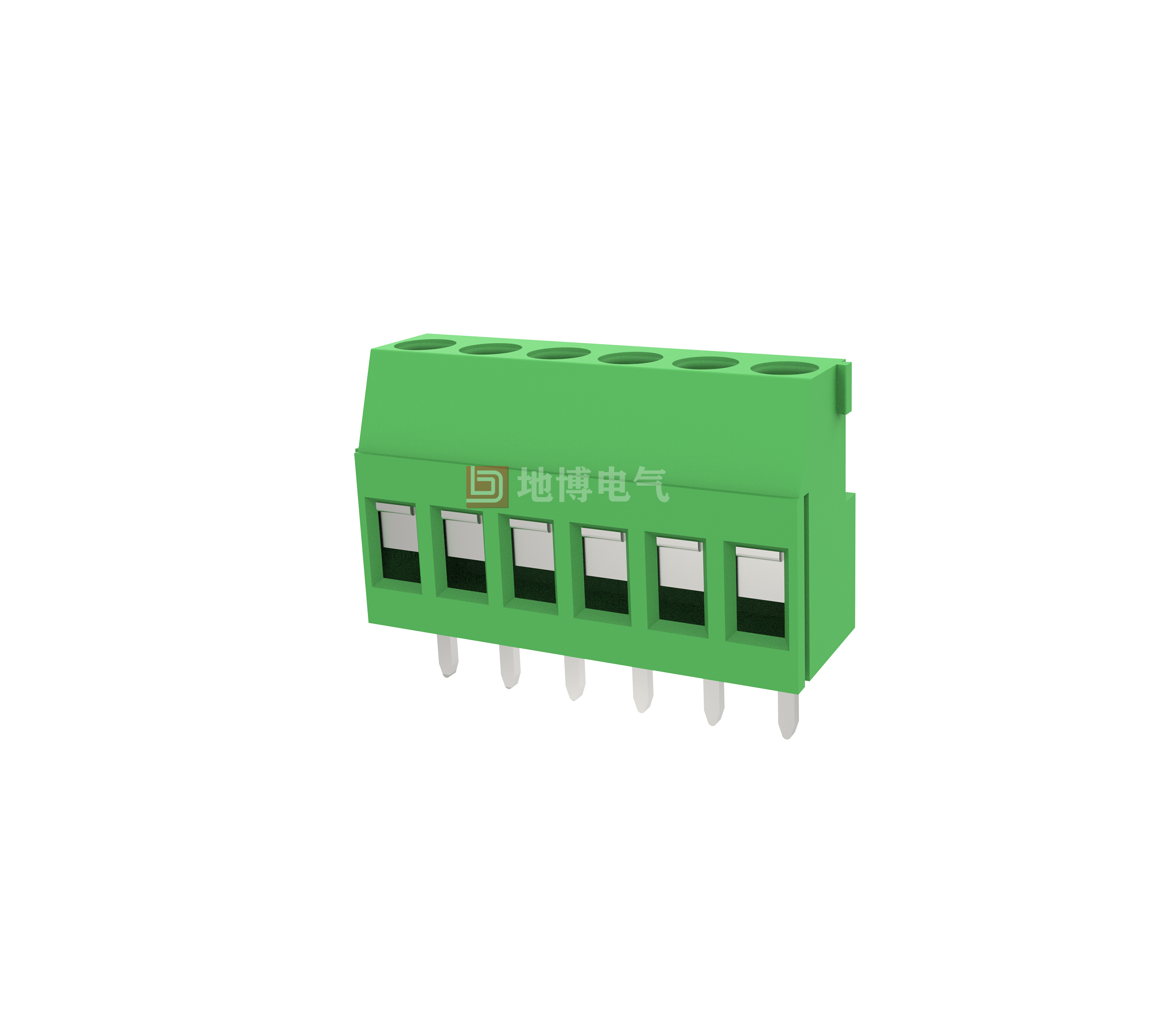

DB2EKM-7.62 Wiring harness terminal

0
Views: 49
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15A - 10A
     Wire range [AWG]
    28~12AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
     Pollution degree
    3 2 2
     Rated voltage
    400V 630V 1000V
    Rated current
    10A 10A 10A
    Impulse withstand voltage
    6KV 6KV 6KV
     Conductor cross section
    0.5~2.5mm²



     Material data



     Insulating material
    PA66
    Flammability rating according to UL94  V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    7.5mm,7.62mm/2~24P
     Stripping length
    7~8mm
     Screw/Torque(Max)
    M3/0.5N.m
     Operating temperature -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    /
     Pin dimensions [mm]
    /
     PCB Hole Diameter [mm]
    /



    Dimensional drawing
