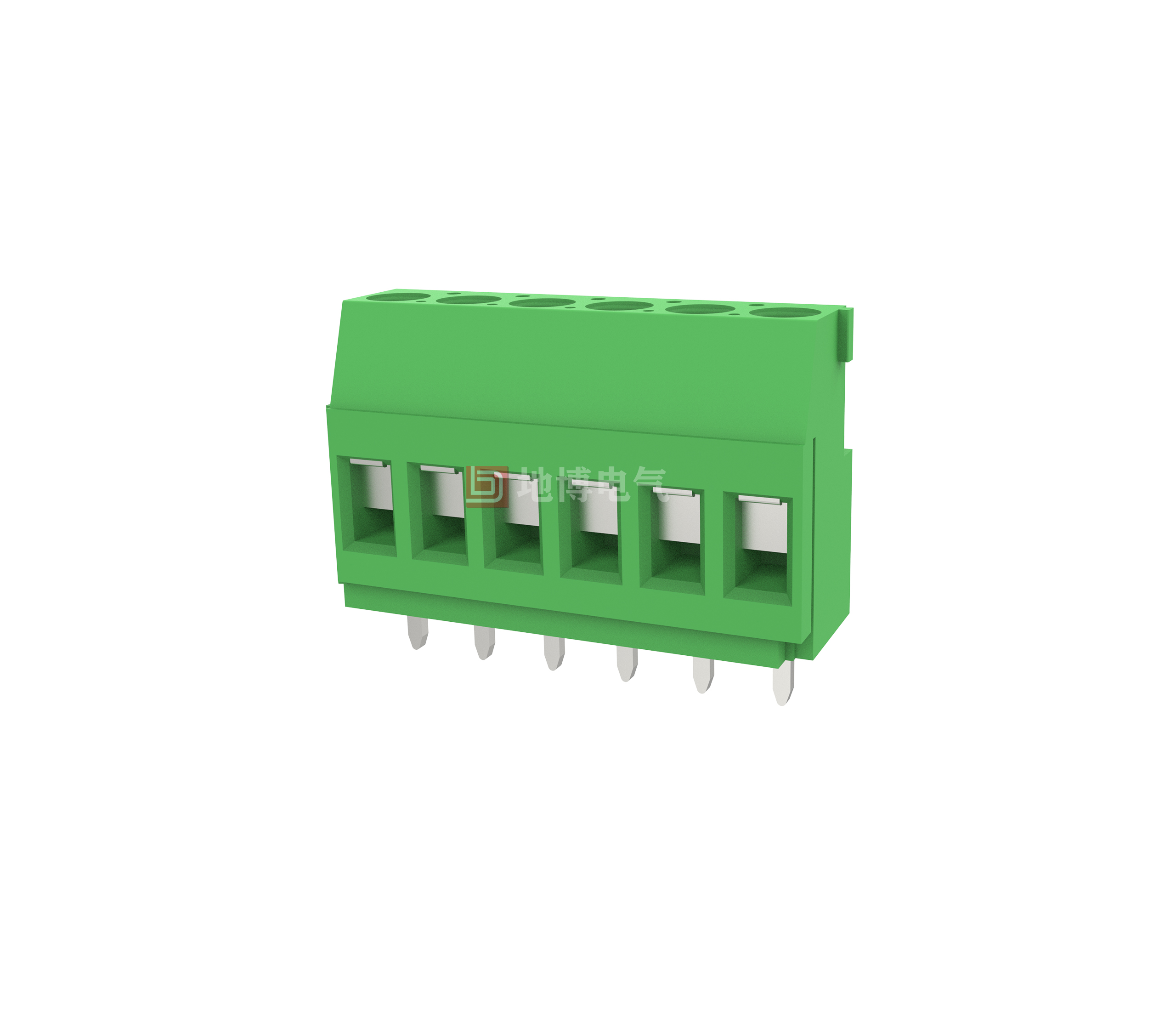

PCB termination, rated current: 20 A, rated voltage (III/2): 250 V, rated cross-section: 2.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of positions per row: 2-24, Product range: DB129VG, Pitch: 5.0 mm, Connection: Screw connection with pressed sheets, Screw head size: L Slotted, Mounting: Wave soldering, Wire/PCB connection direction: 0 °, Color: Green, Pin arrangement: Straight, Solder pins [P]: 4.1 mm, Number of solder pins per potential: 1, Packing type: Carton. This product can be composed of connectors with different number of positions!
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||

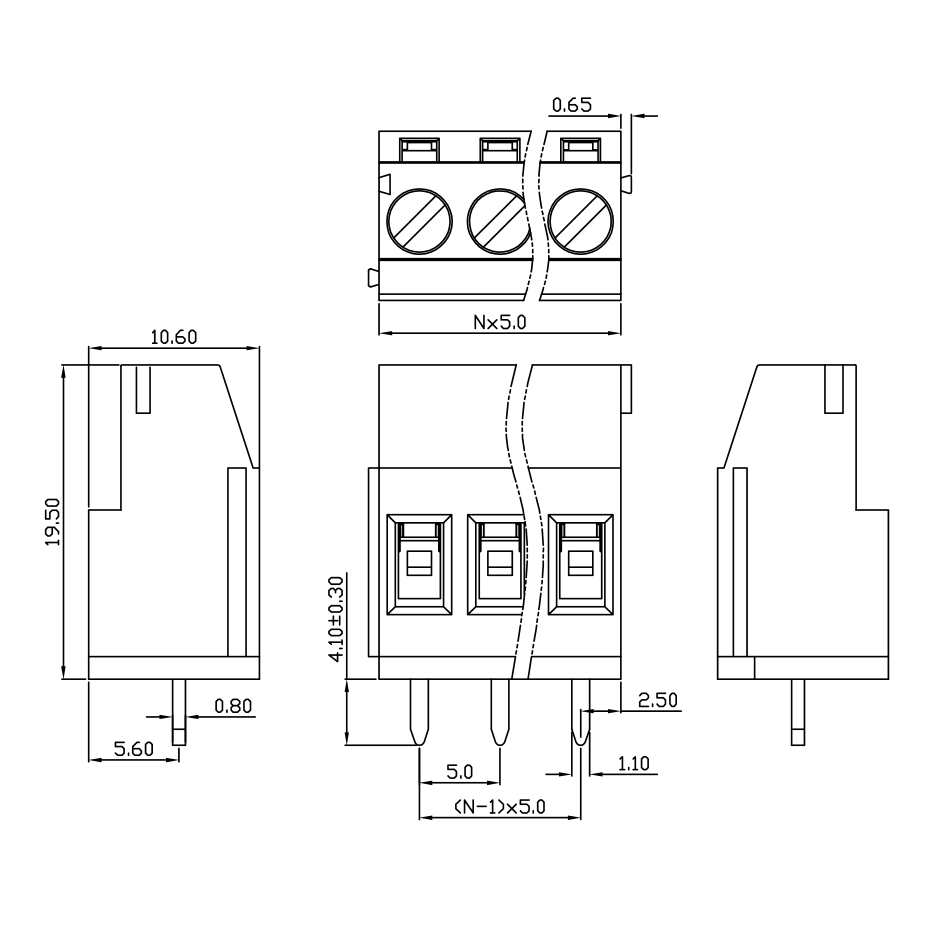

Dimensional drawings |

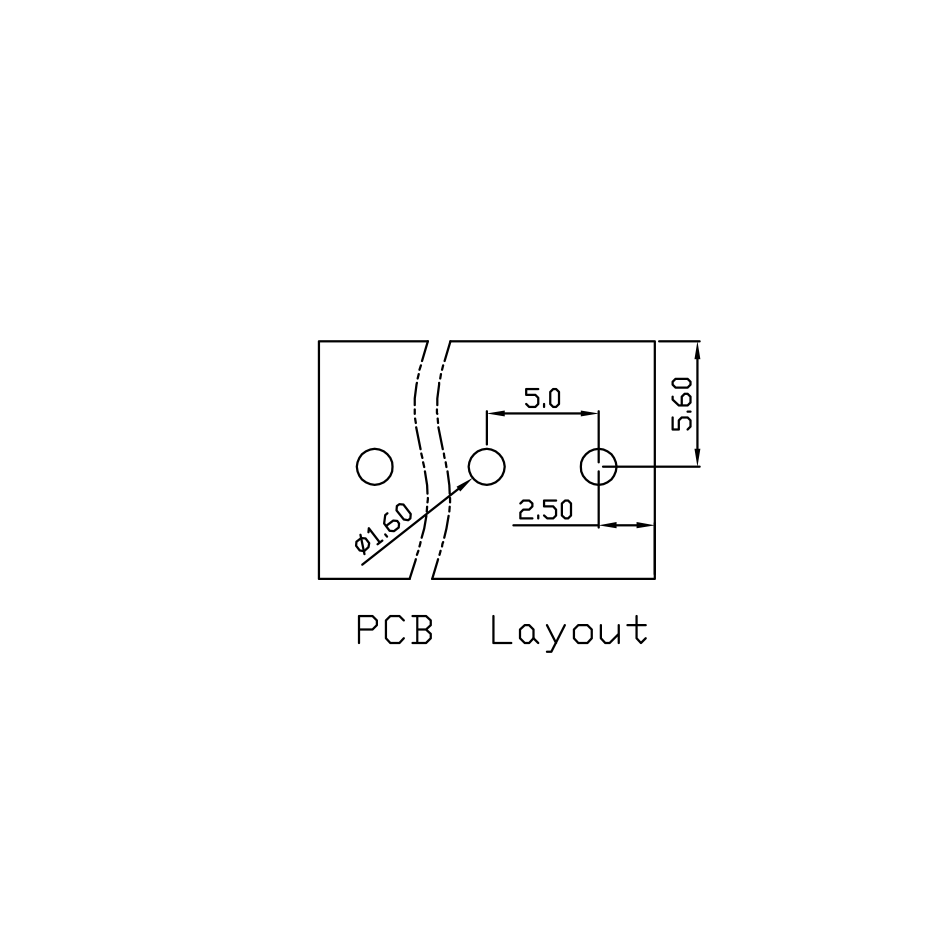

PCB cut-out diagram |
