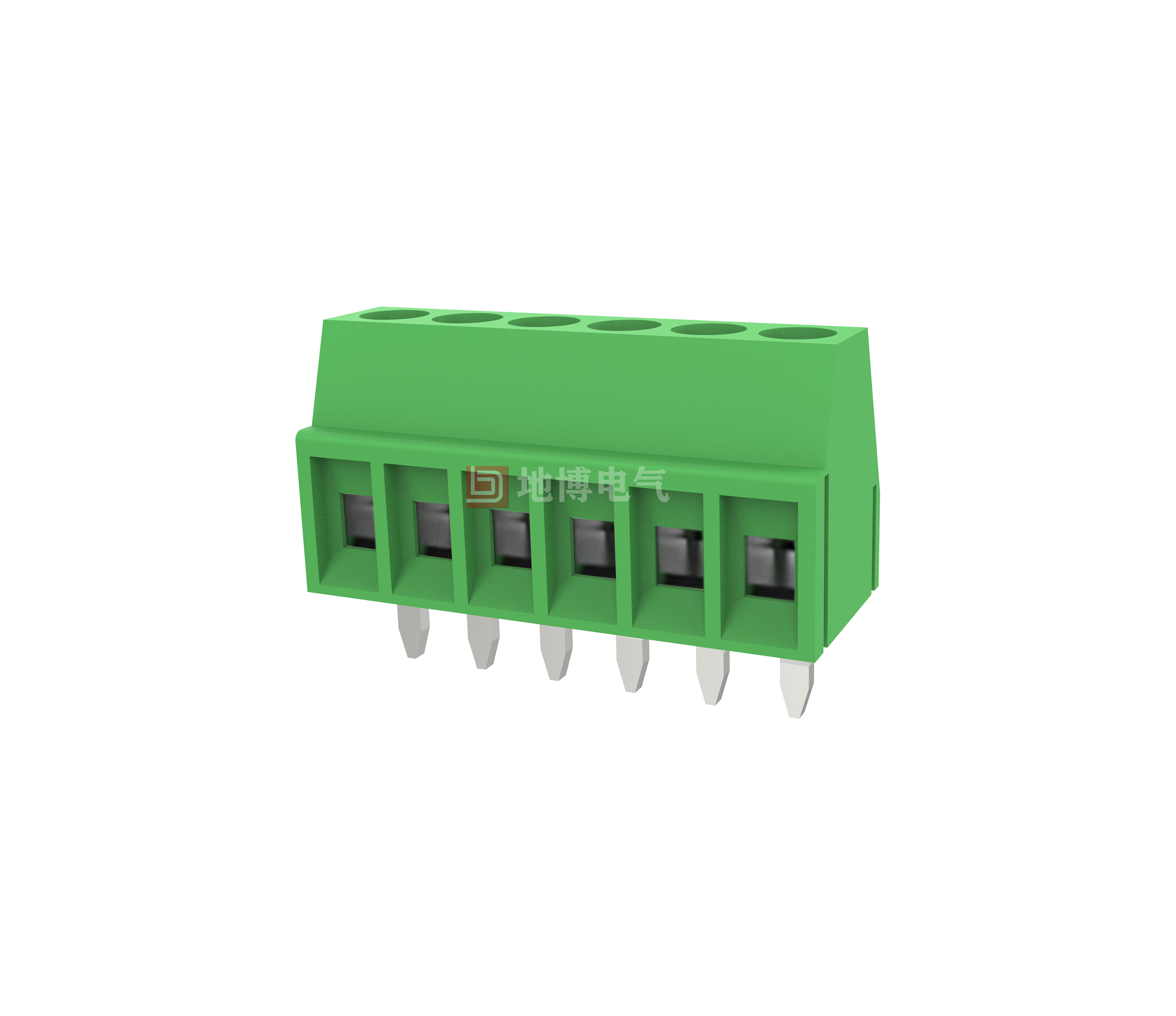

PCB terminal DB125-2.54

Fixed connectors, Nominal operating current: 6 A, Rated voltage (III/2): 160 V, Nominal cross-section: 0.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB125-2.54, Pin pitch: 2.54 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection orientation: 0°, Colour: green, Pin arrangement: Straight alignment, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Very small design for each wire cross-section
0
Views: 24,677
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - -
    Rated Current [A]
    7 - -
    Wire Range [AWG]
    26~18
    Dielectric Voltage-Withstand
    1.3KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    63 130 320
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    1.5 1.5 2.5
    Conductor cross section [mm²]
    0.5~1.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    2.54/2~24
    Stripping Length [mm]
    4~5
    Screw/Torque(Max)[N.m]
    M1.6/0.1
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.5*0.8
    PCB Hole Diameter [mm]
    Ø1.0

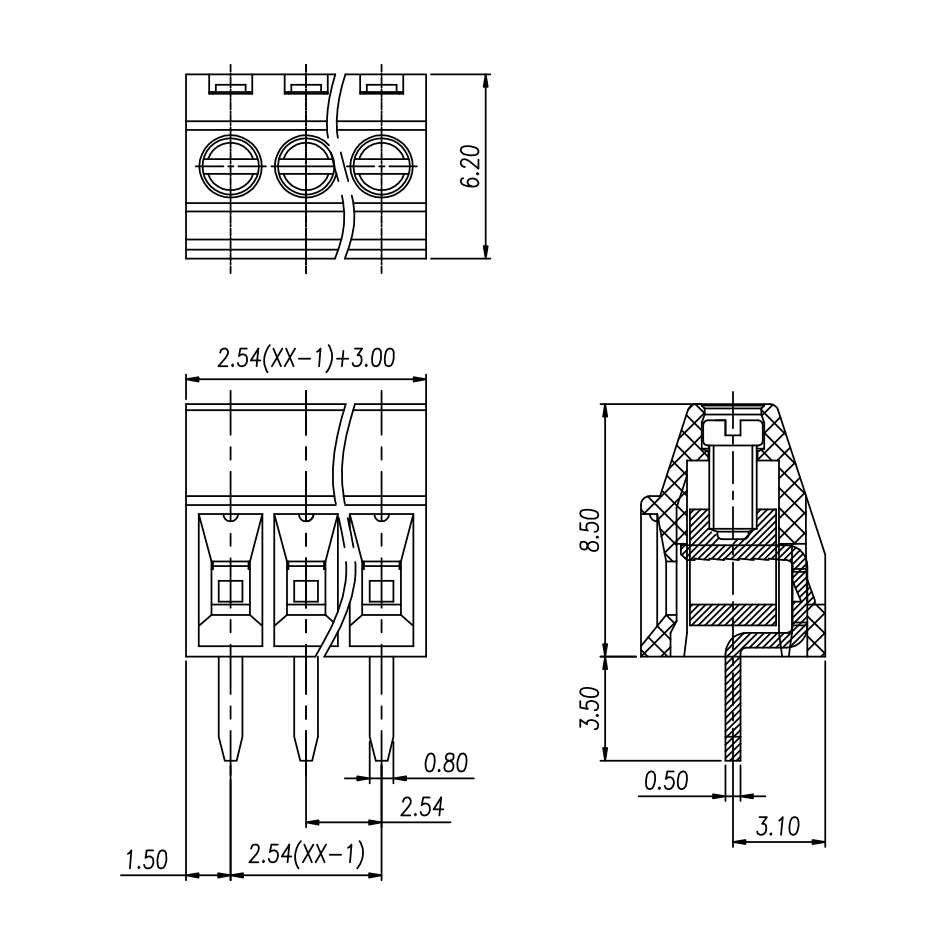

    Dimensional drawings

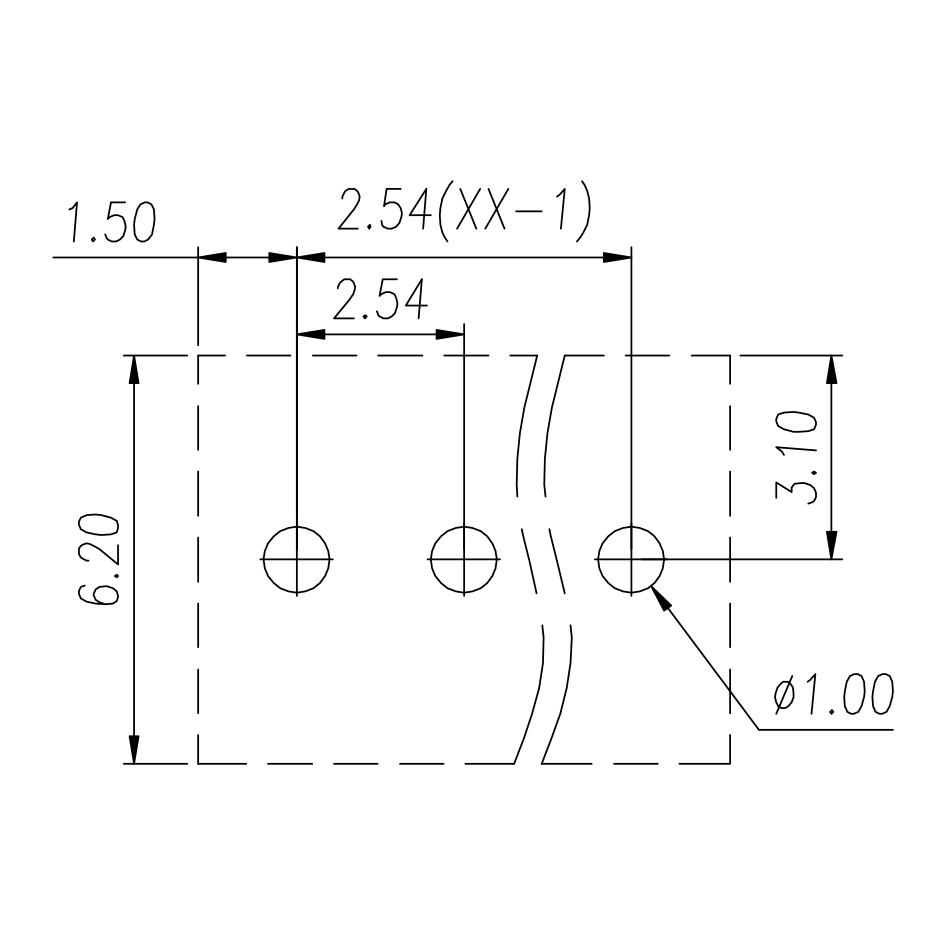

    PCB cut-out diagram
