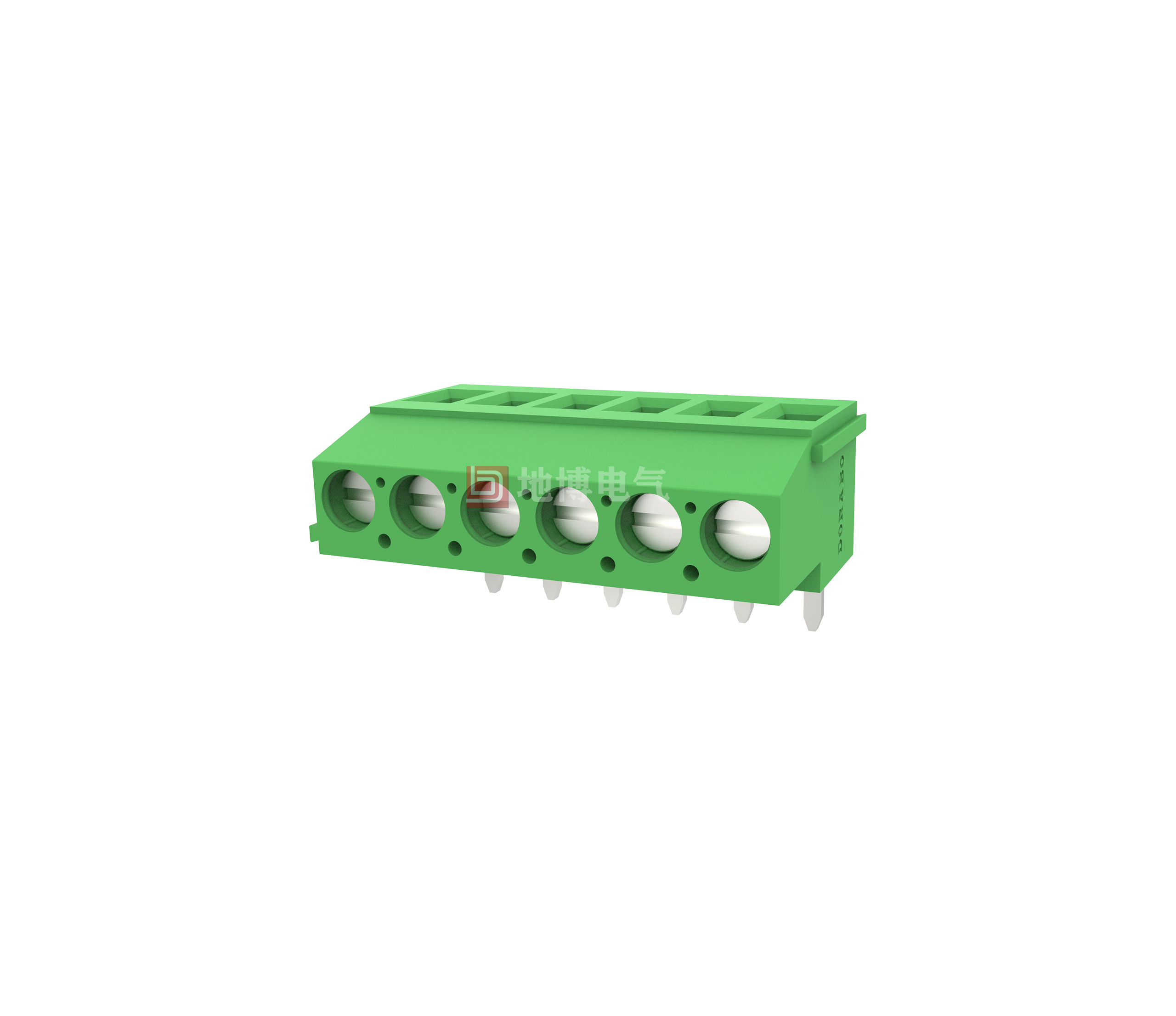

DB2EKR-5.08 Wire-to-board connector

0
Views: 70
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15A - 10A
     Wire range [AWG]
    28-12AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    250V 320V 630V
    Rated current
    12A 12A 12A
     Impulse withstand voltage
    4KV 4KV 4KV
     Conductor cross section
    0.2-2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    5.08mm/2-24P
     Stripping length
    7-8mm
     Screw/Torque(Max)
    M3/0.5N.m
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    /
     Pin dimensions [mm]
    /
     PCB hole diameter [mm]
    /

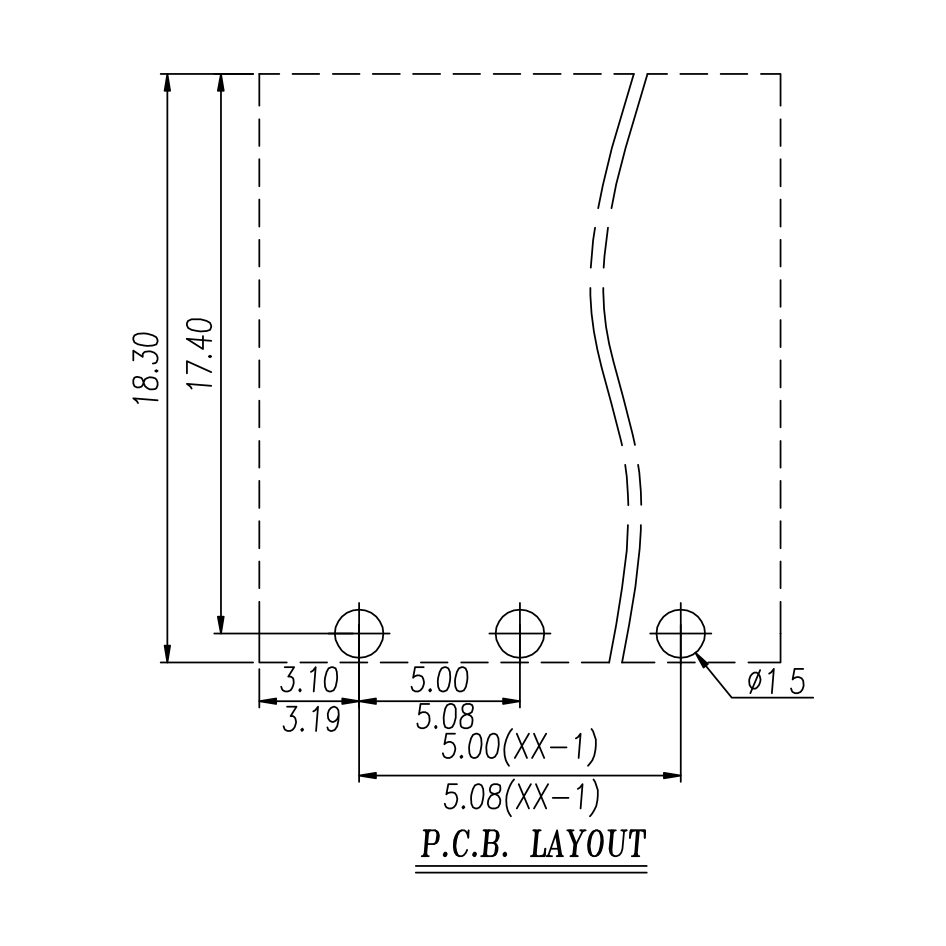

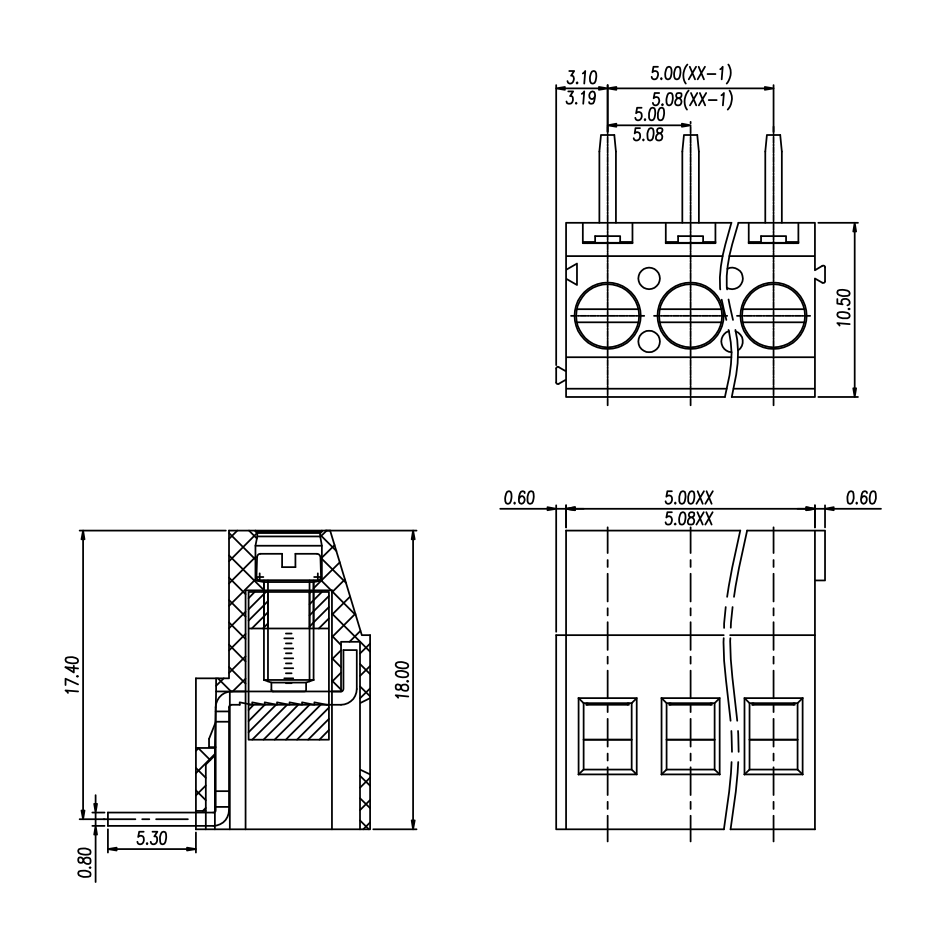

    Dimensional drawing
