DB2ER-5.08 Weidmuller weidmuller terminal

0
Views: 59
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15A - 10A
     Wire range [AWG]
    /
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    250V 320V 400V
     Rated current
    10A 10A 10A
     Impulse withstand voltage
    4KV 4KV 4KV
     Conductor cross section [mm²]
    /



    Material data



     Insulating material
    PA66
    Flammability rating according to UL94 V0
     Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    5.0mm,5.08mm/2-24P
     Stripping length [mm]
    /
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    250℃/5S
    Pin dimensions
    1.0*1.0mm
     PCB hole diameter
    ∅1.7mm

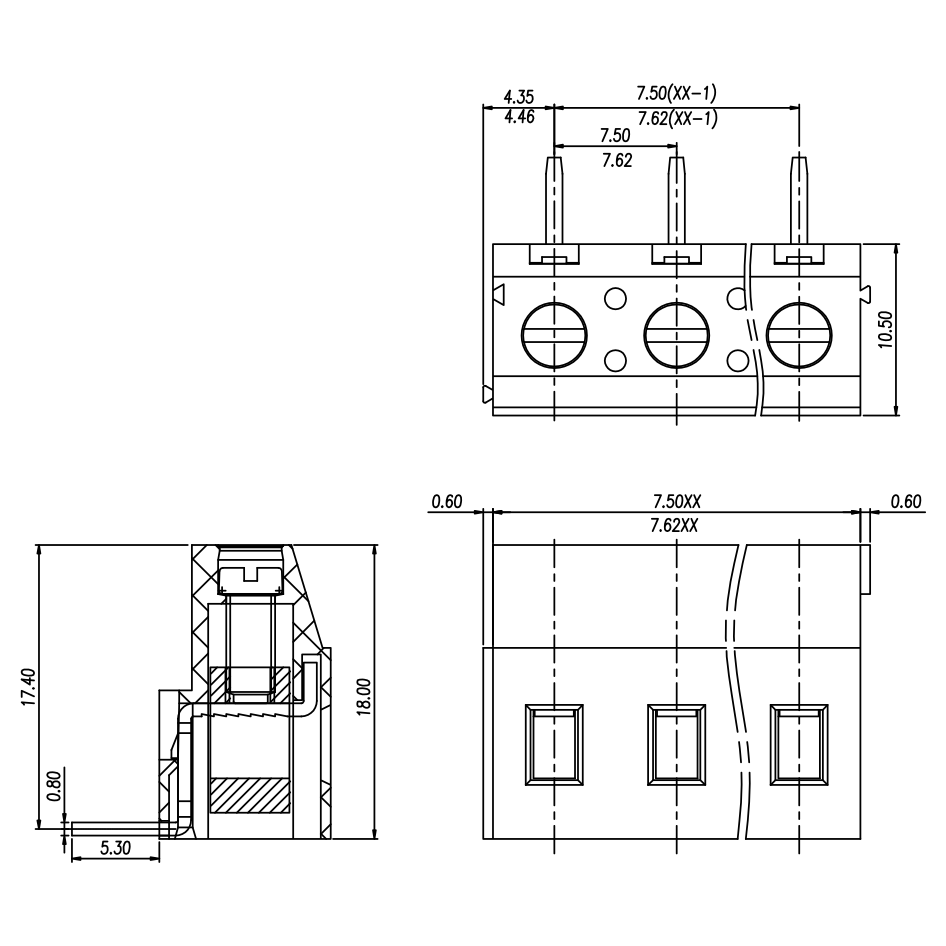

    Dimensional drawing

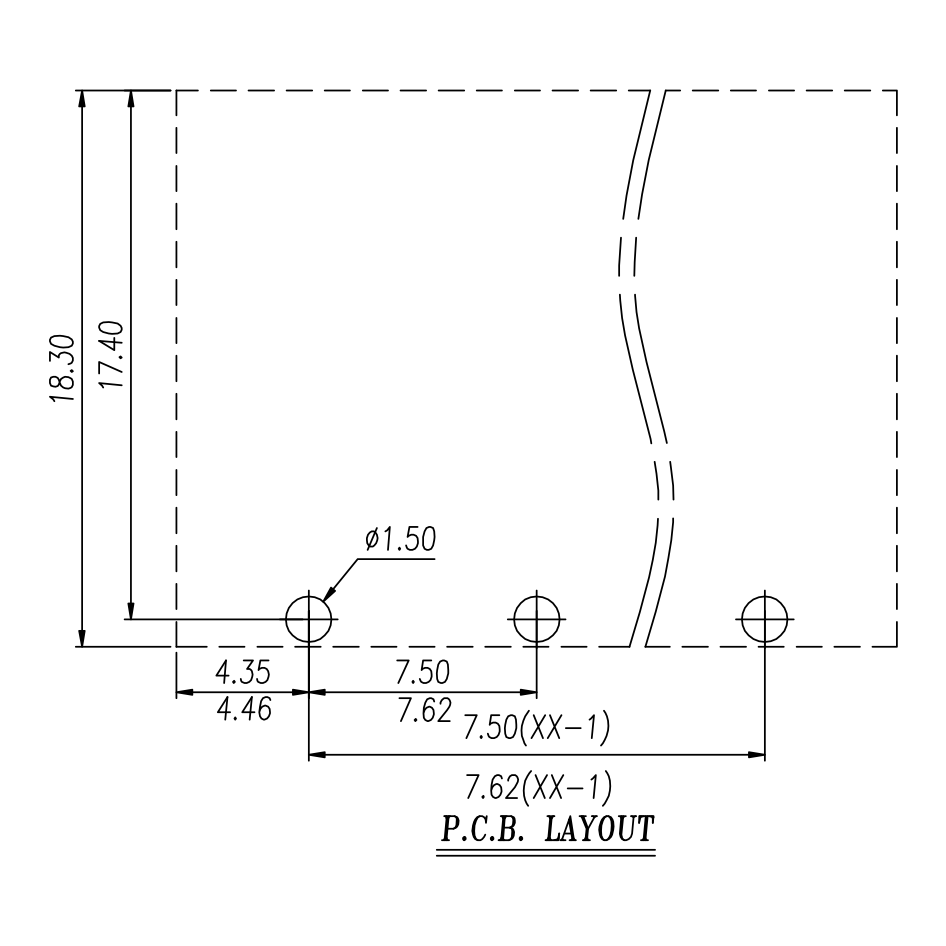

    Dimensions for PCB design
