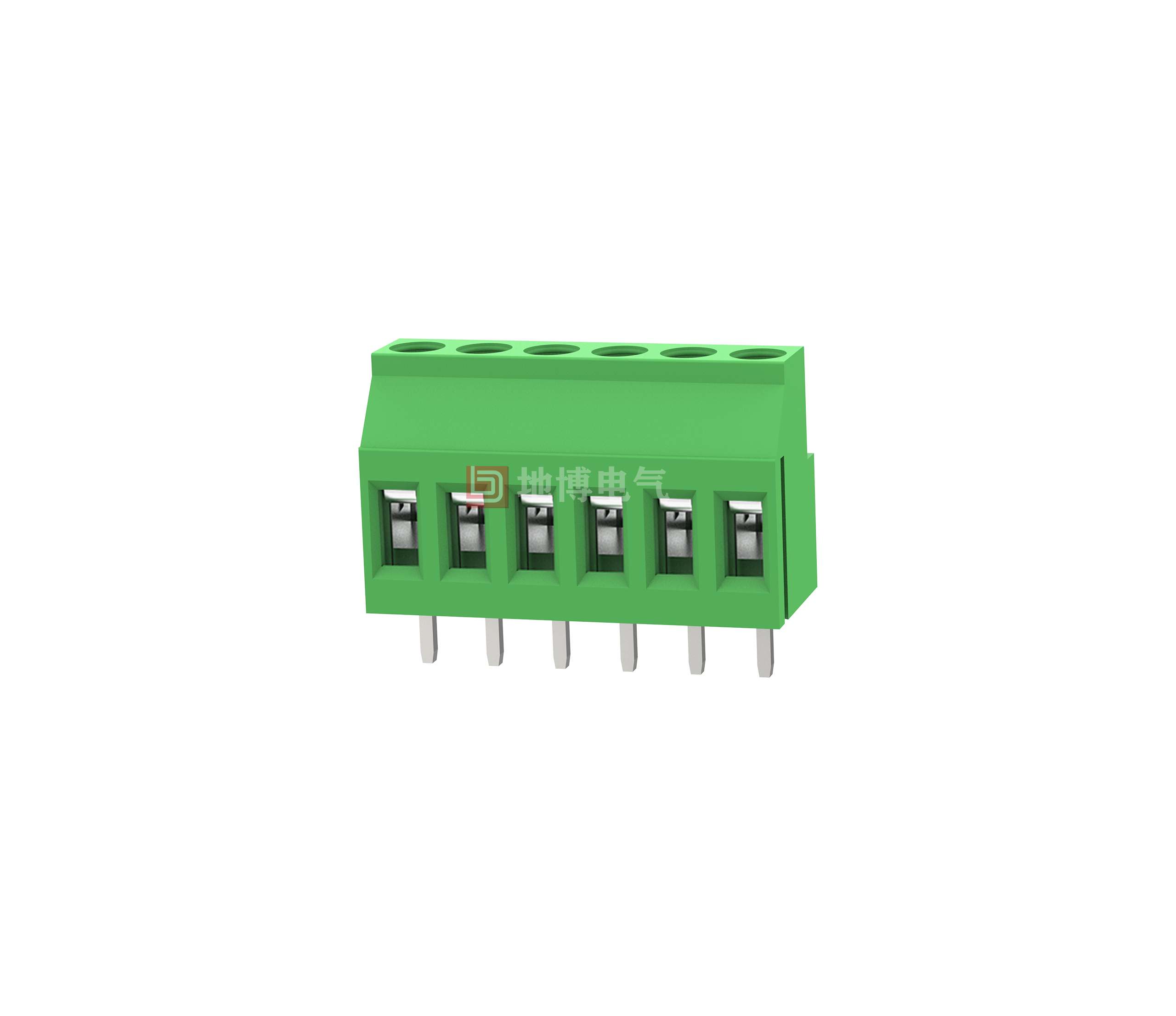

DB2ERH-2.5 Terminal custom OEM

0
Views: 55
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    150V - -
    Rated current
    5A - -
    Wire range [AWG]
    /
    Withstand voltage
    1.3KV



    Technical data-IEC



     Overvoltage category
    III III II
     Pollution degree
    3 2 2
    Rated voltage
    80V 160V 320V
    Rated current
    5A 5A 5A
     Impulse withstand voltage
    1.5KV 2.5KV 2.5KV
     Conductor cross section [mm²]
    /



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
     Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    2.5mm/2*2-2*24P
     Stripping length [mm]
    /
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
    Soldering temperature
    250℃/5S
     Pin dimensions
    0.8*0.8mm
     PCB Hole Diameter
    Ø1.4mm

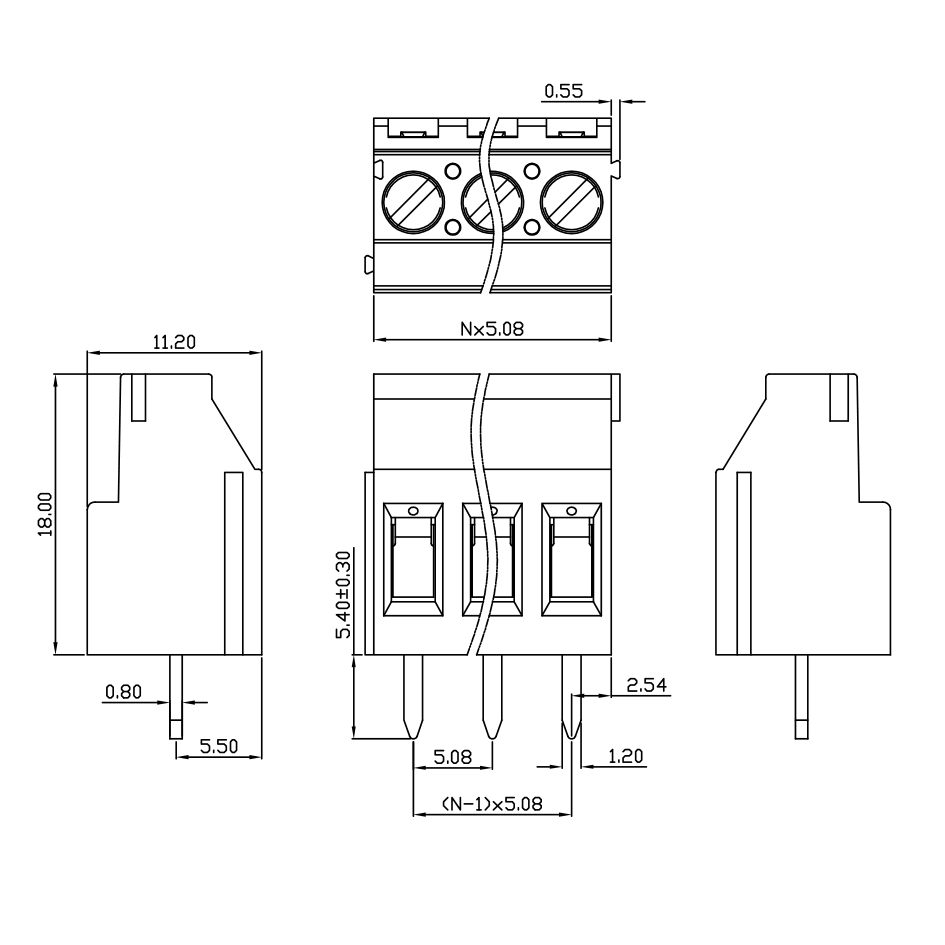

    Dimensional drawing

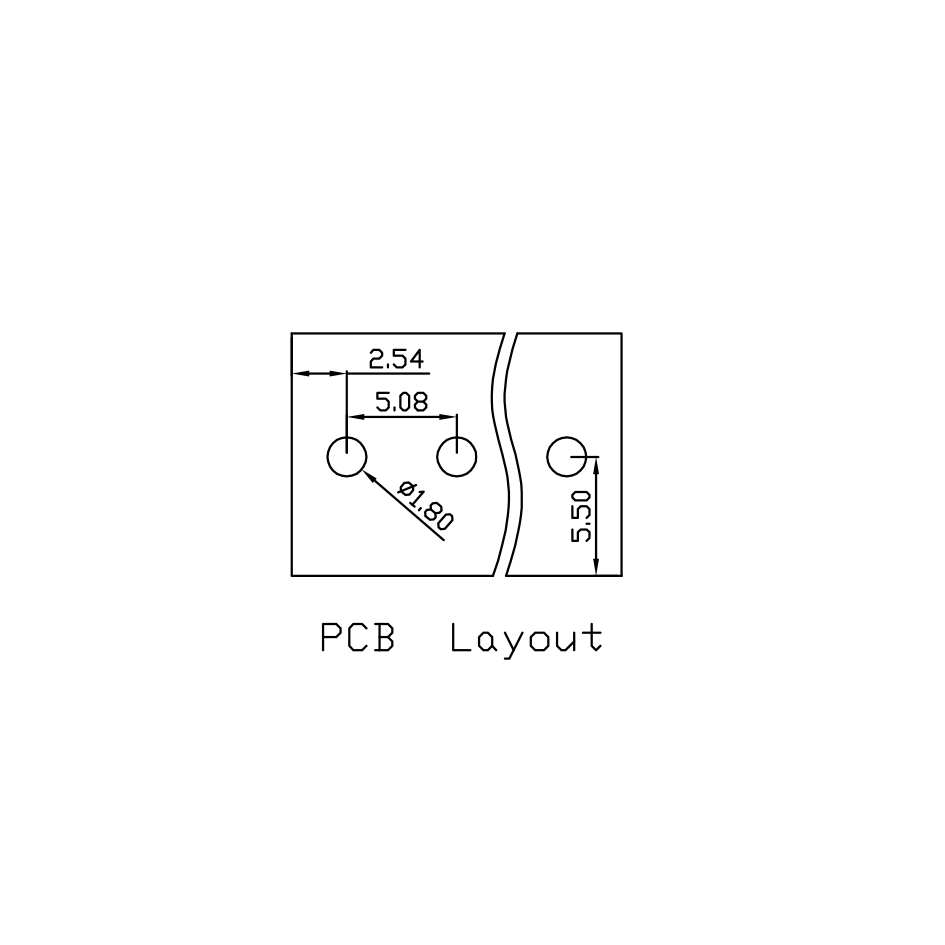

    Dimensions for PCB design
