DB3EKH-7.62 high current terminal

plug-in connector

Rated current: 41 A

Rated voltage: 300 V

Use wire size: 24-8 AWG

Pitch: 7.62 mm

0
Views: 137
Contact usDownload PDF
  • UL/CUL

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    41 - 10
    Wire Range [AWG]
    24-8
    Dielectric Voltage-Withstand
    1.6KV

    IEC

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-6

    Material

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    Other Data

    Pitch/Poles [mm]/[P]
    7.62/2-12
    Stripping Length [mm]
    10
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    /
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

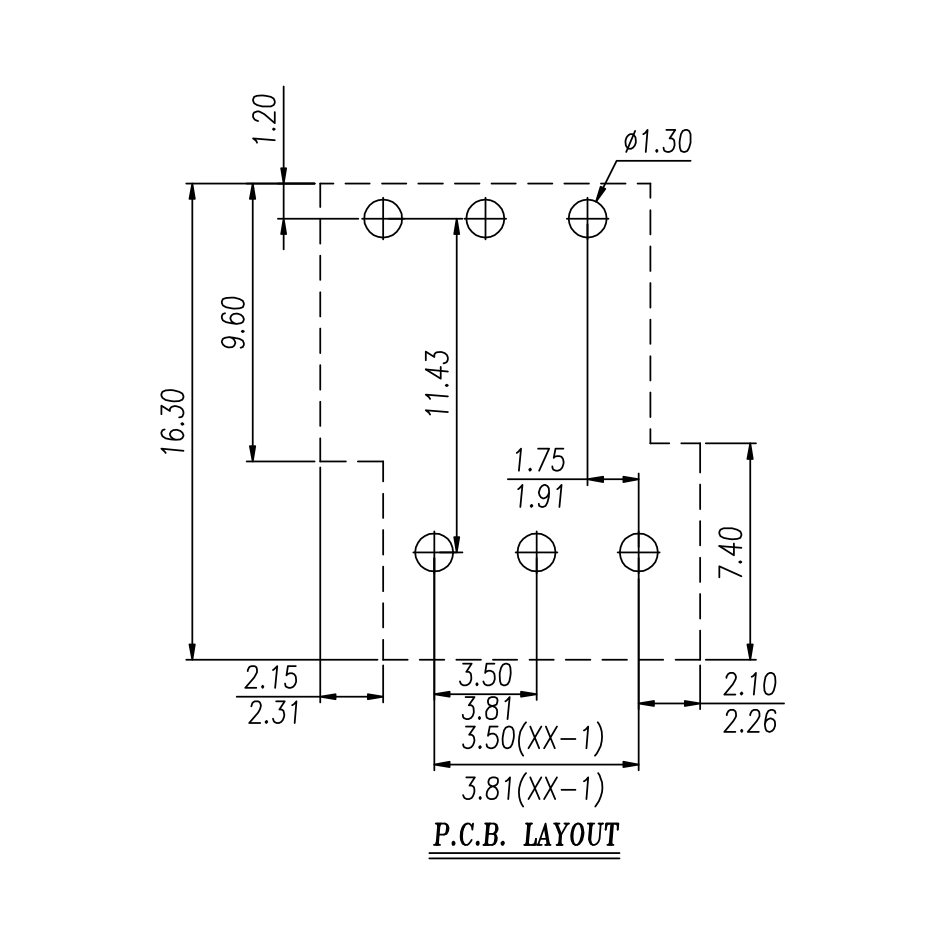

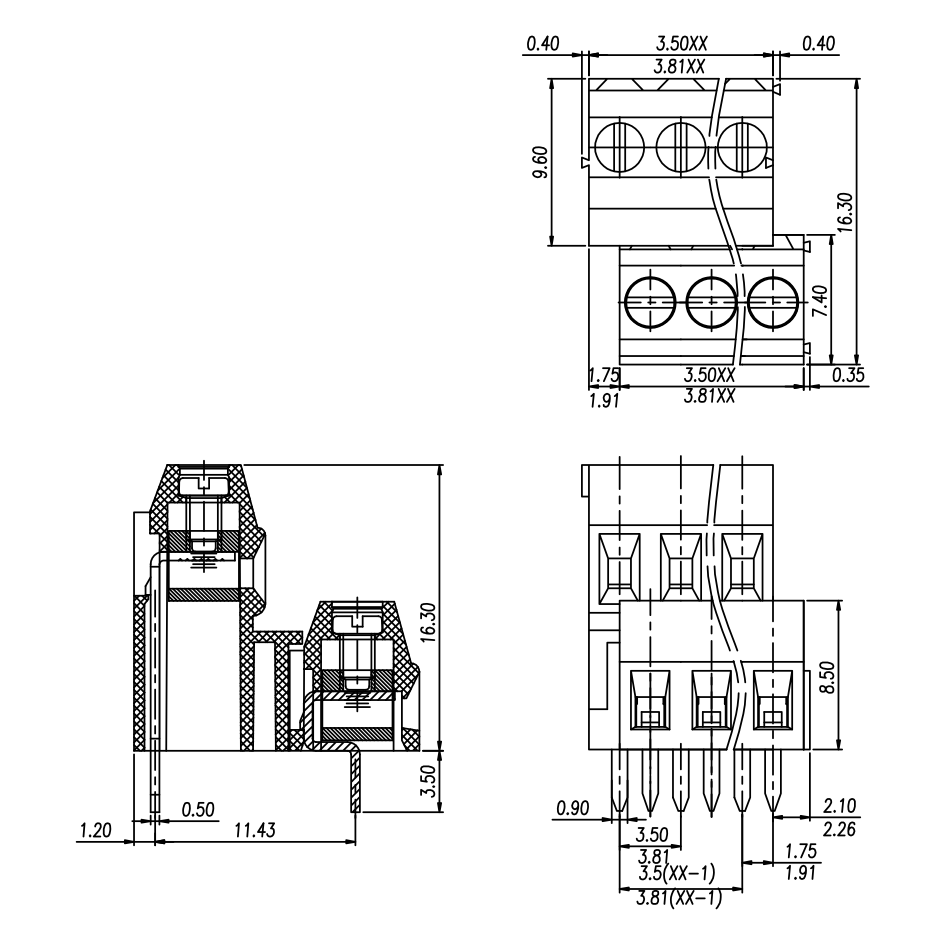

    Dimensional drawing
