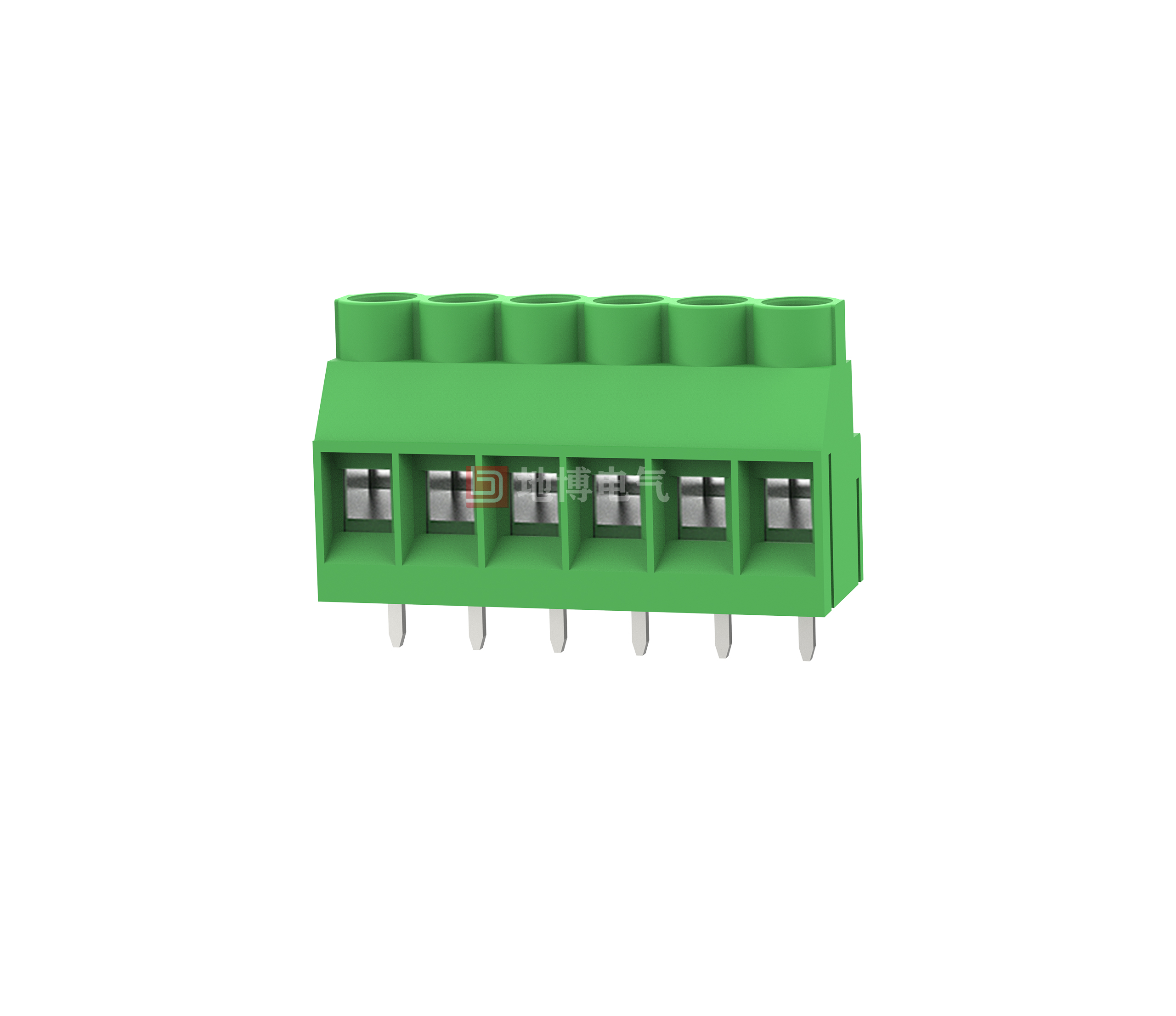

DB3EKM-7.62 Fixed panel terminal

0
Views: 56
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    30A - 10A
     Wire range
    28-10AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



    Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    400V 630V 1000V
    Rated current
    20A 20A 20A
     Impulse withstand voltage
    6KV 6KV 6KV
    Conductor cross section
    0.5-4mm²



    Dimensional drawing



    绝缘材料 Insulation Material
    PA66
    阻燃等级 Flame relardant rating
    UL94V-0
    导体材料 Conductor Material
    Copper alloy
    导体表面镀层 Plating of conductor surface
    Sn plated



    一般参数



    间距/极数 Pitch/Poles [mm]/[P]
    7.62/2-24
    剥线长度 Stripping Length [mm]
    8-9
    螺丝/扭矩 Screw/Torque(Max)[N.m]
    M3/0.5
    工作温度 Operating temperature [℃]
    -40~+105
    焊锡温度 Soldering temperature
    /
    引针尺寸 Pin dimensions [mm]
    /
    PCB板孔径 PCB Hole Diameter [mm]
    /



    尺寸图
