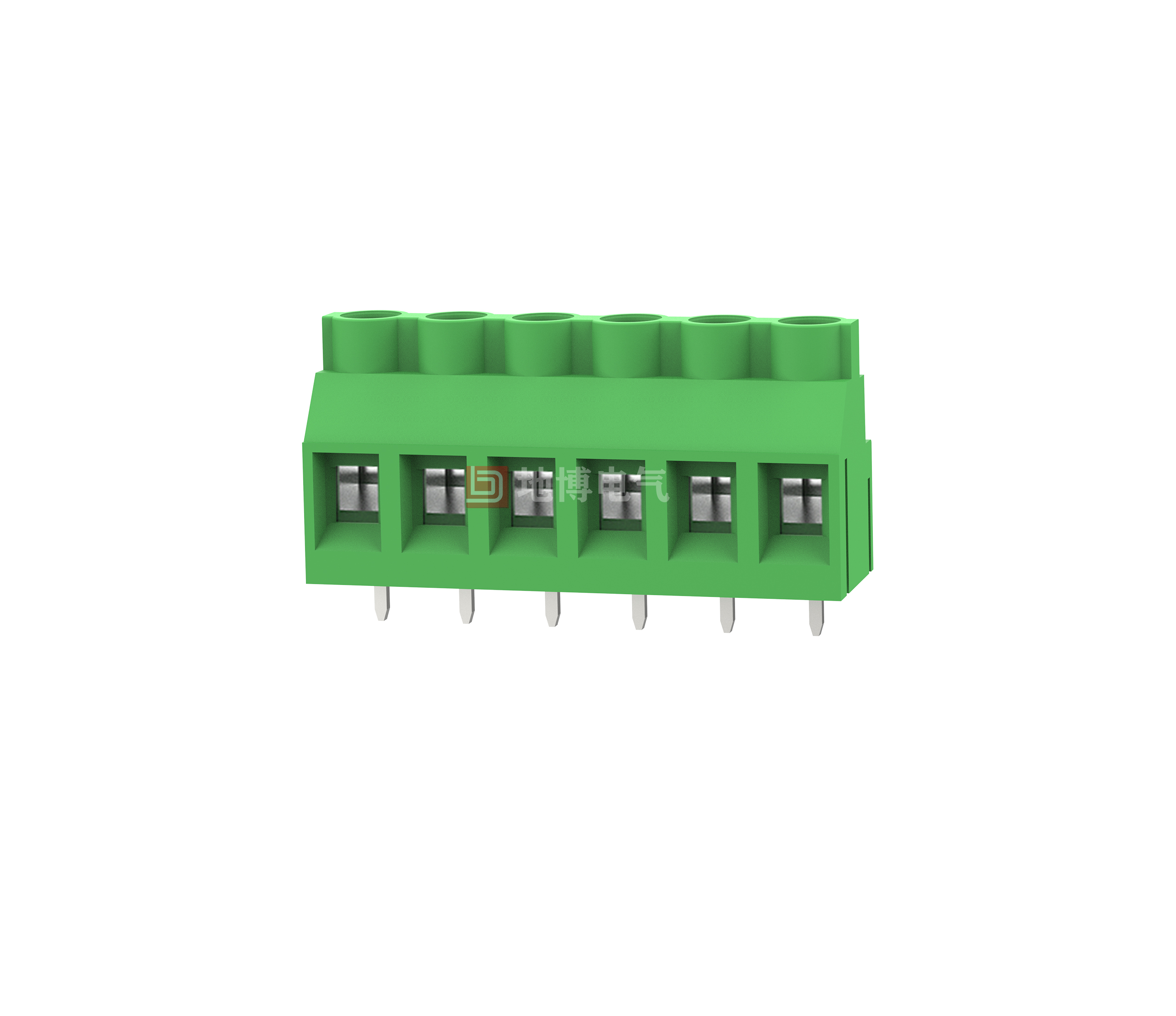

DB3ERM-7.62 Panel header terminal

0
Views: 53
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V 300V 300V
    Rated current
    30A 30A 10A
     Wire range [AWG]
    /
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    400V 630V 1000V
     Rated current
    20A 20A 20A
     Impulse withstand voltage
    6KV 6KV 6KV
     Conductor cross section
    /



    Material data



     Insulating material
    PA66
     Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics   Tin-plated



    Other data



     Pitch/Poles
    7.62mm/2-24P
     Stripping length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    250℃/5S
     Pin dimensions
    0.8*1.0mm
     PCB hole diameter
    Ø1.5mm
