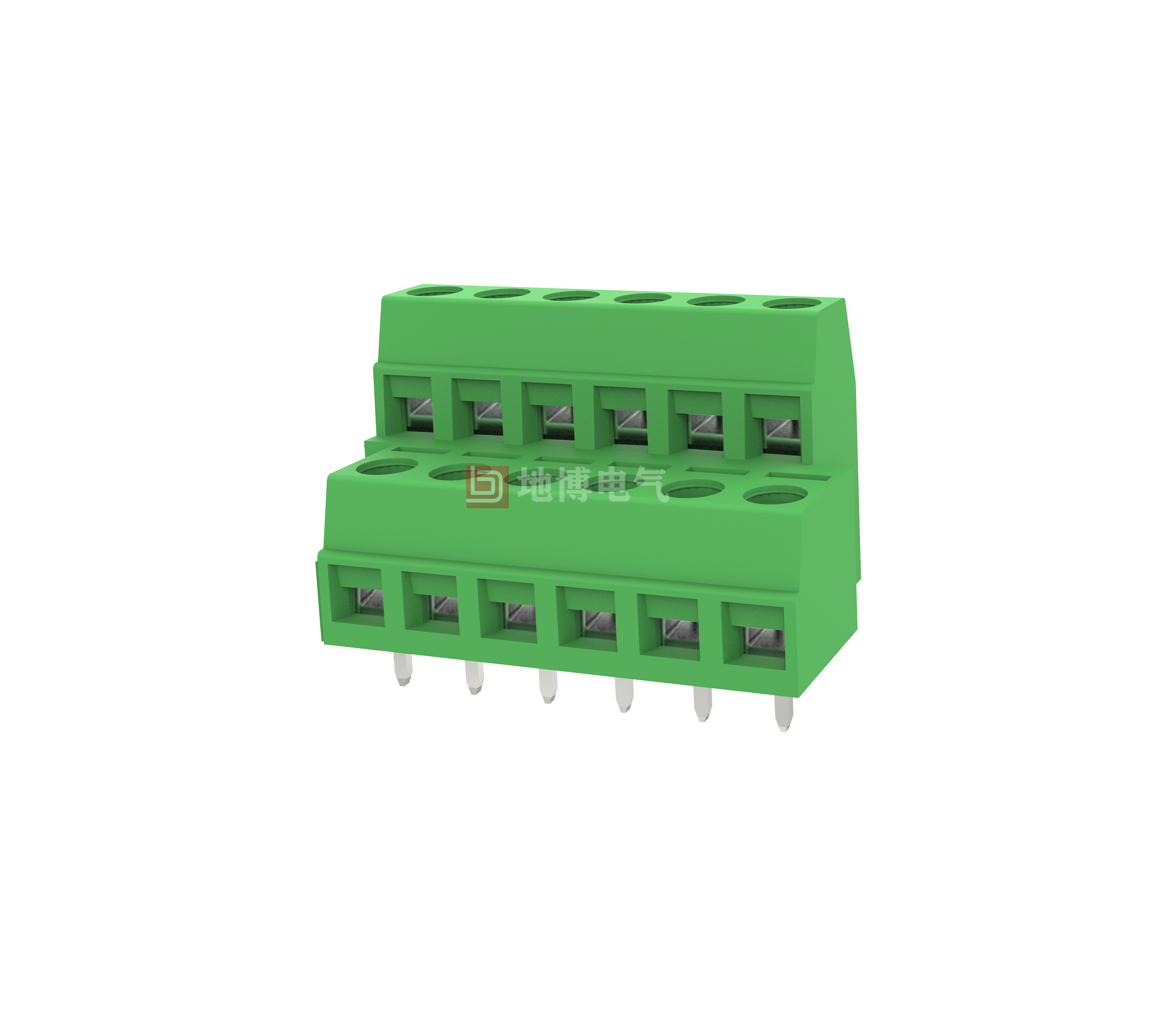

PCB terminal DB127A-5.08

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 4-48, Number of rows: 2, Number of bits per row: 2-24, Series: DB127A, Pin pitch: 5.08 mm, Wiring method: Screw connection with crimp, Screw head size: L slotted, Mounting: Wave soldering, Wires/conductors PCB connection direction: 0°, colour: green, pin arrangement: straight, pin [P]: 3.5 mm, number of pins per potential: 1, packaging type: carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Extremely small design for each conductor cross-section
☑ Multi-layer wire connection for high contact density
☑ Lock on the side allows for different combinations of digits
0
Views: 25
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    12 - 10
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 250 400
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.08/2*2-2*30
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.5*0.9
    PCB Hole Diameter [mm]
    Ø1.3



    Dimensional drawings





    PCB cut-out diagram
