GUV1.5-103-PE

0
Views: 65
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Withstand voltage
    1600V/1Min
    Wire gauge range
    26-14AWG



    Technical data-IEC



    Overvoltage category
    III
     Pollution degree
    3
     Impulse withstand voltage
    6KV



    Conductor cross section



     Soild
    0.2-1.5mm²
    Conductor cross section flexible
    0.2-1.5mm²
    Conductor cross section flexible with ferrule
    0.2-1mm²



    Material data



     Insulating material
    PA66
    Flammability rating according to UL94  V0
     Contact material
    Copper alloy
     Surface characteristics  Tin-plated



     Other data



     Length/Height/Thickness
    54.2mm/30.6mm/3.5mm
    Number of connections
    3
     Stripping length
    8-10mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature -40°C...105 °C [ -40...221 °F ]

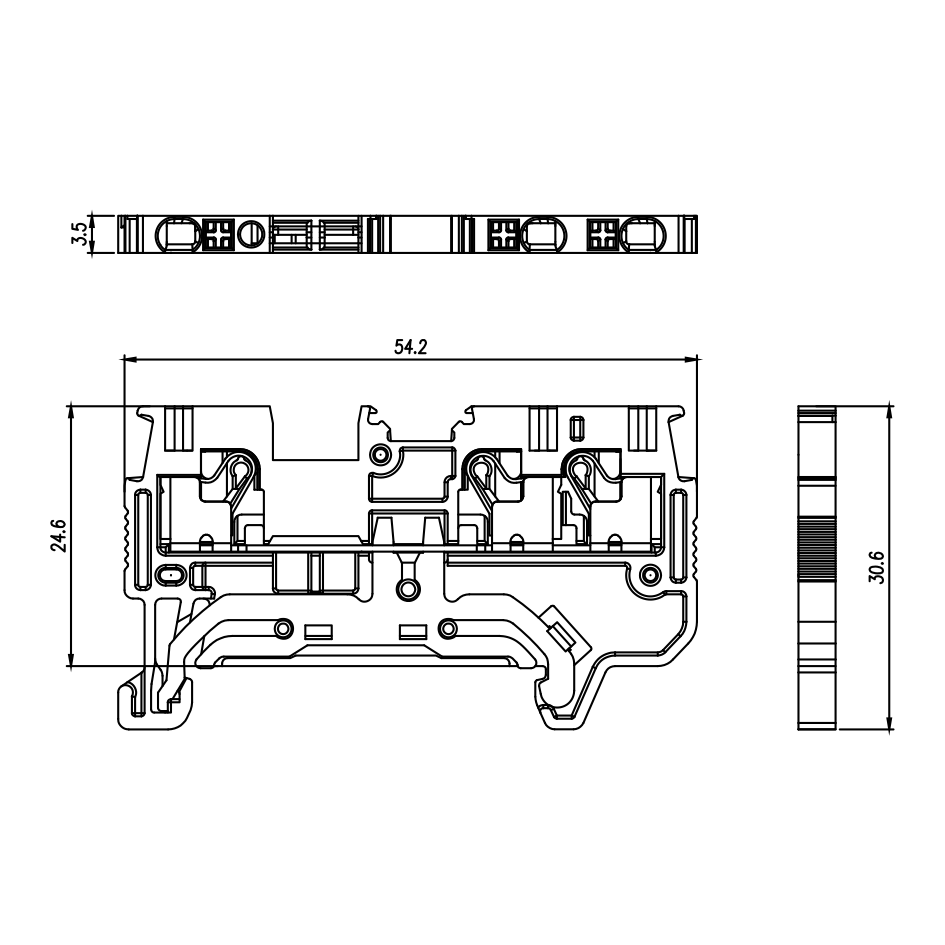

    Dimensional drawing
