GUV1.5-103

0
Views: 55
Contact usDownload PDF
  •

    技术数据-UL/CUL



    等级 Use Group
    B C D
    额定电压 Rated Voltage [V]
    300 300 600
    额定电流 Rated Current [A]
    15 15 5
    耐电压 Withstanding Voltage
    1600V/1Min
    接线范围 Wire Range
    26-14AWG



    技术数据-IEC



    过电压类别 Overvoltage Category
    III
    污染等级 Contamination Class
    3
    额定电压 Rated Voltage
    500V
    额定电流 Rated Current
    17.5A
    额定冲击电压 Impulse withstand voltage
    6KV



    导线截面积



    单芯 Soild
    0.2-1.5mm²
    柔性导线 Flexible
    0.2-1.5mm²
    柔性导线带冷压头 Flexible with ferrule
    0.2-1mm²



    材料信息



    绝缘材料 Insulation Material
    PA66
    阻燃等级 Flame relardant rating
    UL94V-0
    导体材料 Conductor Material
    Copper alloy
    导体表面镀层 Plating of conductor surface
    Sn plated



    一般参数



    长/高/厚 Length/Height/Thickness [mm]
    54.2/30.6/3.5
    连接点数 Connection Points
    3
    剥线长度 Stripping Length [mm]
    8-10
    导轨类型 Type of rail
    DIN 35
    螺丝/扭矩 Screw/Torque(Max)[N.m]
    /
    工作温度 Operating temperature [℃]
    -40~+105

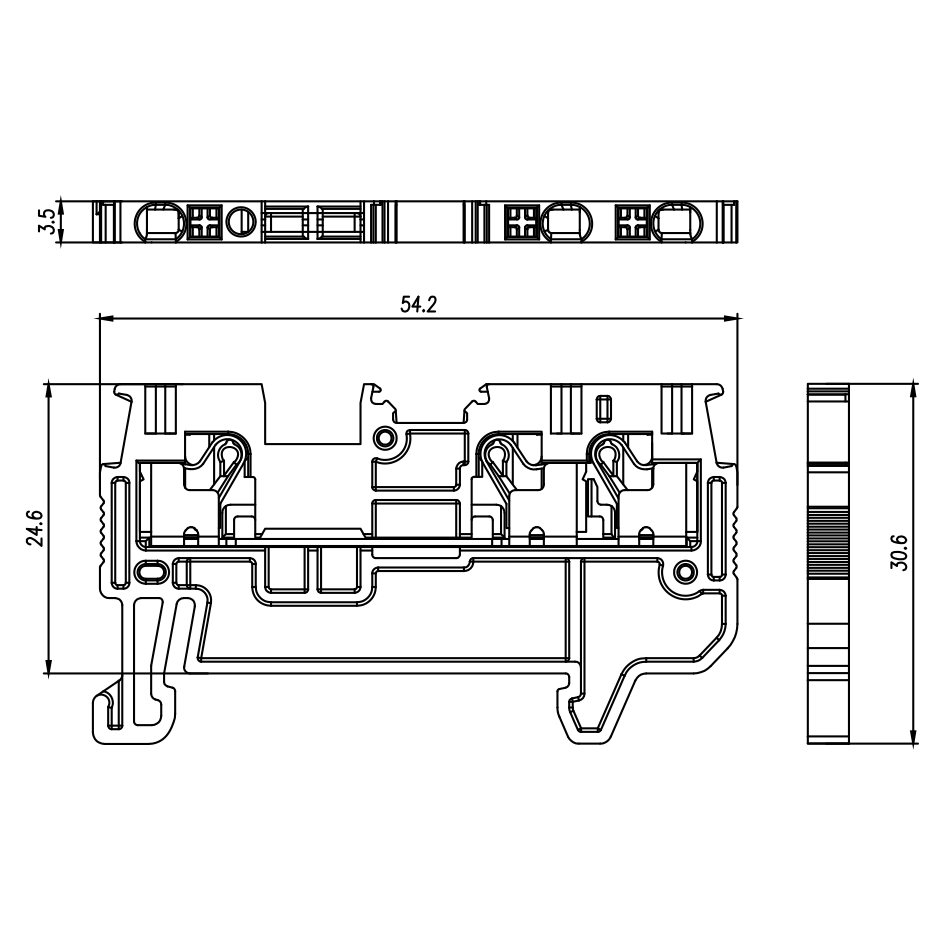

    尺寸图
