GUV1.5-104

0
Views: 56
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage [V]
    300 300 600
    Rated current [A]
    15 15 5
    Withstand voltage
    1600V/1Min
    Wire gauge range
    26-14AWG



    Technical data-IEC



    Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    500V
    Rated current
    17.5A
     Impulse withstand voltage
    6KV



    Conductor cross section



     Soild
    0.2-1.5mm²
    Conductor cross section flexible
    0.2-1.5mm²
    Conductor cross section flexible with ferrule
    0.2-1mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
     Surface characteristics Tin-plated



     Other data



     Length/Height/Thickness
    63.6mm/30.6mm/3.5mm
    Number of connections
    4
     Stripping length
    8-10mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
    Operating temperature  -40°C...105 °C [ -40...221 °F ]

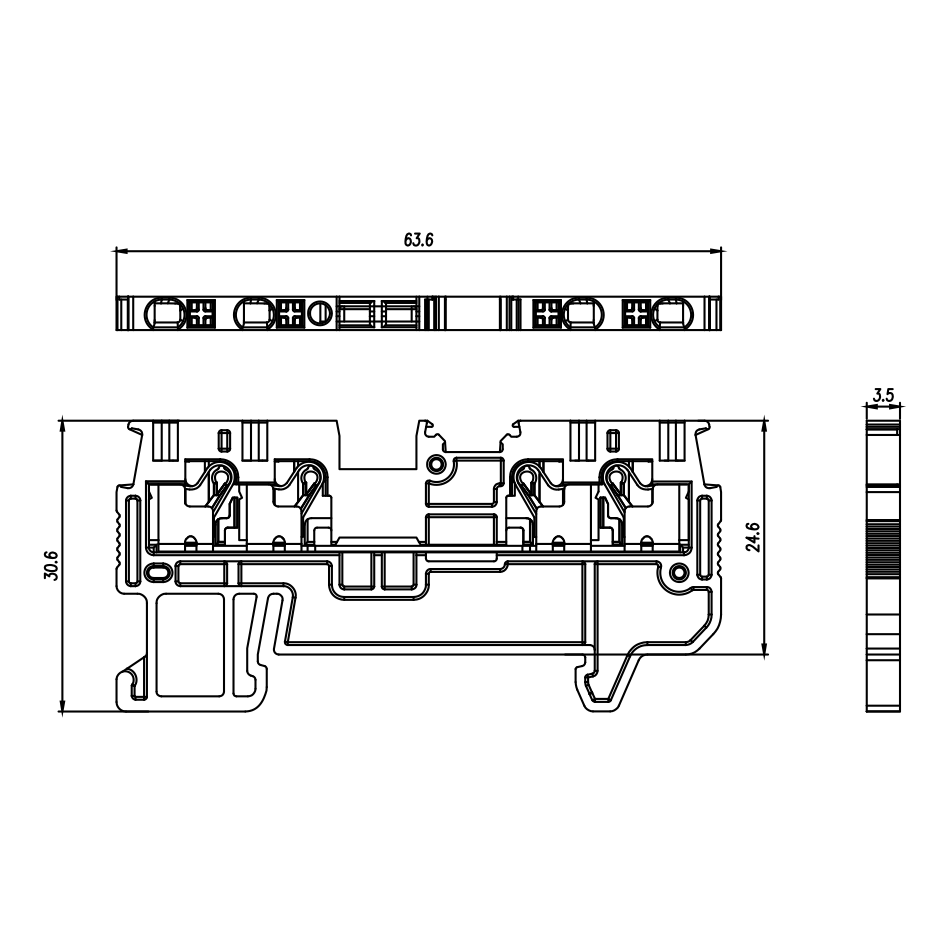

    Dimensional drawing
