GUV1.5-202-PE

0
Views: 491
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



     Wire gauge range
    26-14AWG




    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    6KV



    Conductor cross section



    Soild
    0.2-1.5mm²
     Conductor cross section flexible
    0.2-1.5mm²
    Conductor cross section flexible with ferrule
    0.2-1mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Length/Height/Thickness [mm]
    65.6mm/41.1mm/3.5mm
     Stripping length [mm]
    8-10mm
    Certification
    /

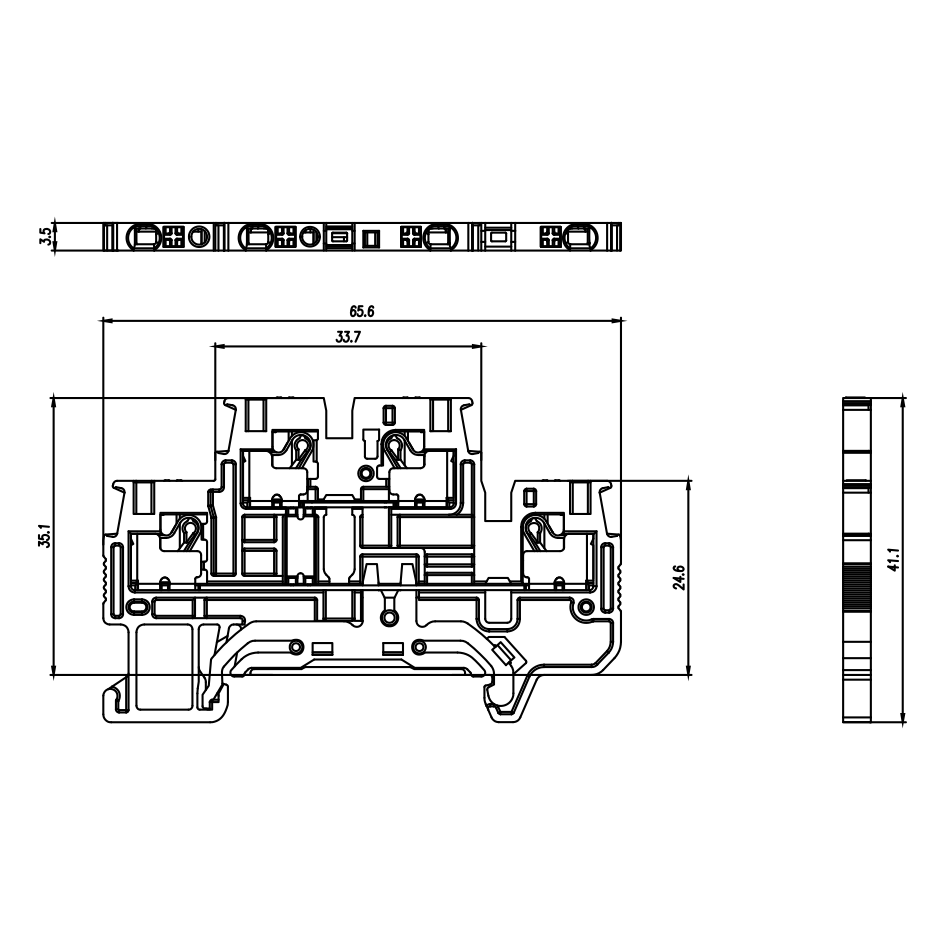

    Dimensional drawing
