GUV10-103-PE

0
Views: 492
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Withstand voltage
    2200V/1Min
    Wire gauge range
    20-6AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.5-16mm²
    Conductor cross section flexible
    0.5-10mm²
    Conductor cross section flexible with ferrule
    0.5-10mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
     Surface characteristics  Tin-plated



    Other data



     Length/Height/Thickness
    89.2mm/49.7mm/10.2mm
    Number of connections
    3
     Stripping length
    18mm
    Type of rail
    DIN 35
    Screw/Torque(Max)[N.m]
    /
     Operating temperature -40°C...105 °C [ -40...221 °F ]

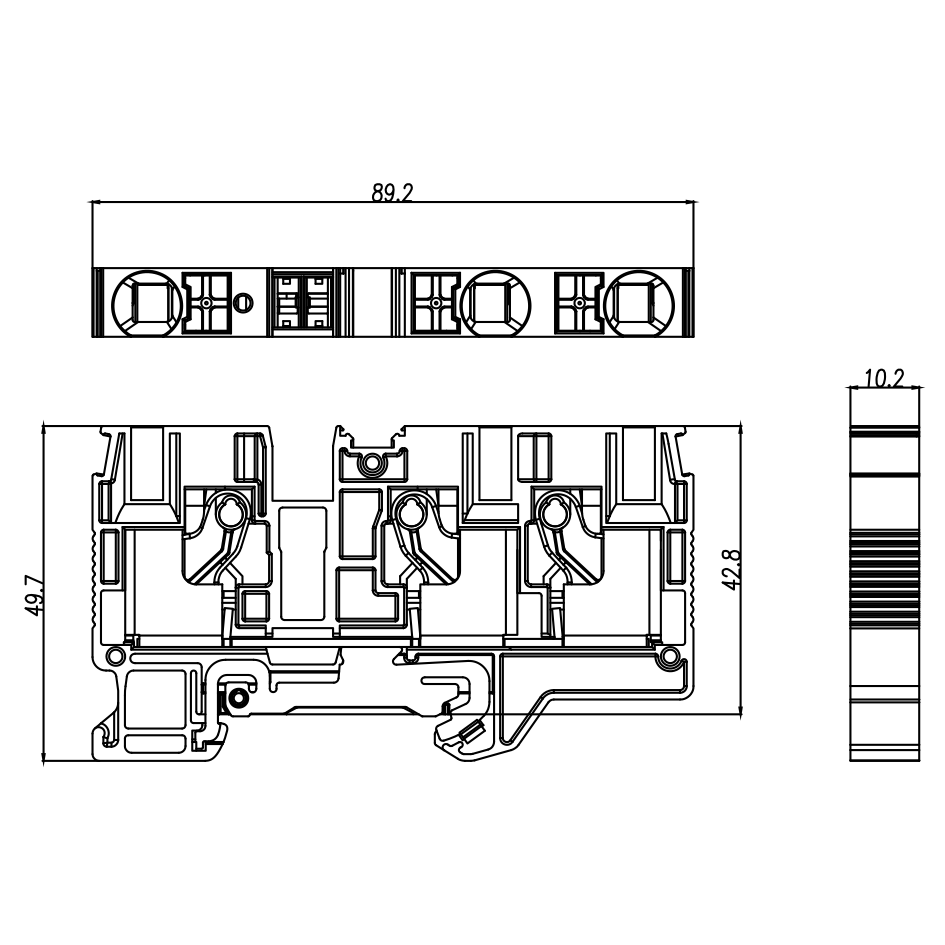

    Dimensional drawing
